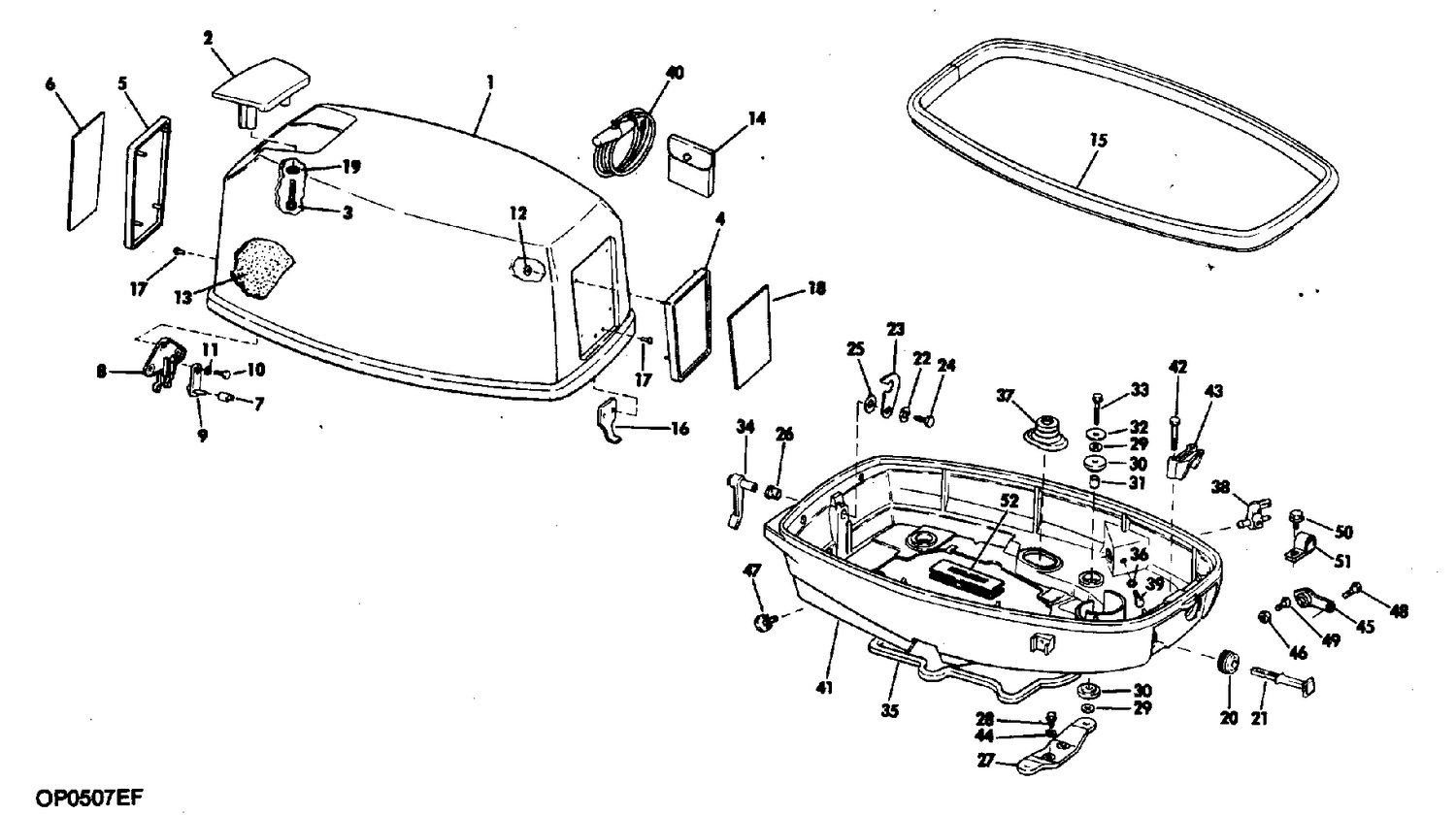

| Ref | Part Number | Description |
|---|
| 1 |
0281943 |
MOTOR COVER ASSY.,Evinrude |
| 1 |
0281944 |
MOTOR COVER ASSY.,Evinrude |
| 5 |
0207864 |
APPLIQUE, Rear |
| 6 |
0209357 |
PLATE, Applique, rear |
| 6 |
0209570 |
PLATE,Applique,rear |
| 9 |
0384332 |
LIDE & PIN |
| 10 |
0302468 |
SCREW, Ground lead |
| 13 |
0207573 |
SOUND BLANKET |
| 13 |
0318604 |
SOUND BLANKET |
| 14 |
0314494 |
BAG EMERGENCY STARTER ROPE |
| 18 |
0209558 |
PLATE,Applique,front |
| 20 |
0204457 |
GOMMET, Choke knob |
| 21 |
0321719 |
KNOB, Choke |
| 22 |
0306407 |
LOCCKWASHER,Cover latch |
| 24 |
0306487 |
SCREW |
| 26 |
0553769 |
BUSHING |
| 27 |
0325868 |
BRACKET, Cove to exh. hsg., front |
| 28 |
0306487 |
SCREW |
| 29 |
0329241 |
RONDELLE This part replaces 0306482. |
| 30 |
0316354 |
ENGINE COVER SUPPORT GROMMET |
| 31 |
0302406 |
SLEEVE |
| 32 |
0203622 |
WASHER |
| 33 |
0329240 |
SCREW This part replaces 0314451. |
| 34 |
0321318 |
HANDLE, Latch |
| 35 |
0320158 |
SEAL, Housing to cover |
| 37 |
0304019 |
CROMMET, CONTROL SHAFT |
| 38 |
0393334 |
CONNECTEUR, carburant - mâle |
| 39 |
0552062 |
SCREW, Clamp |
| 40 |
0378347 |
CORDE DE LANCEUR |
| 41 |
0433392 |
ENGINE COVER, Lower This part replaces 0326276. |
| 42 |
0329110 |
VIS, boîtier d'échappement vers bloc cylindres-carter This part replaces 0319358. |
| 43 |
0325972 |
COLLIER, câbles électriques |
| 44 |
3854292 |
LOCK WASHER, Screw to hsg. This part replaces 0304145. |
| 47 |
0321885 |
NIPPLE |
| 50 |
0306487 |
SCREW |
| 51 |
0317000 |
COLLIER, câble This part replaces 0318190. |
| 52 |
0325327 |
GROMMET, Actuator cam |
| 0282039 |
0282039 |
DECAL SET,Evinrude |
