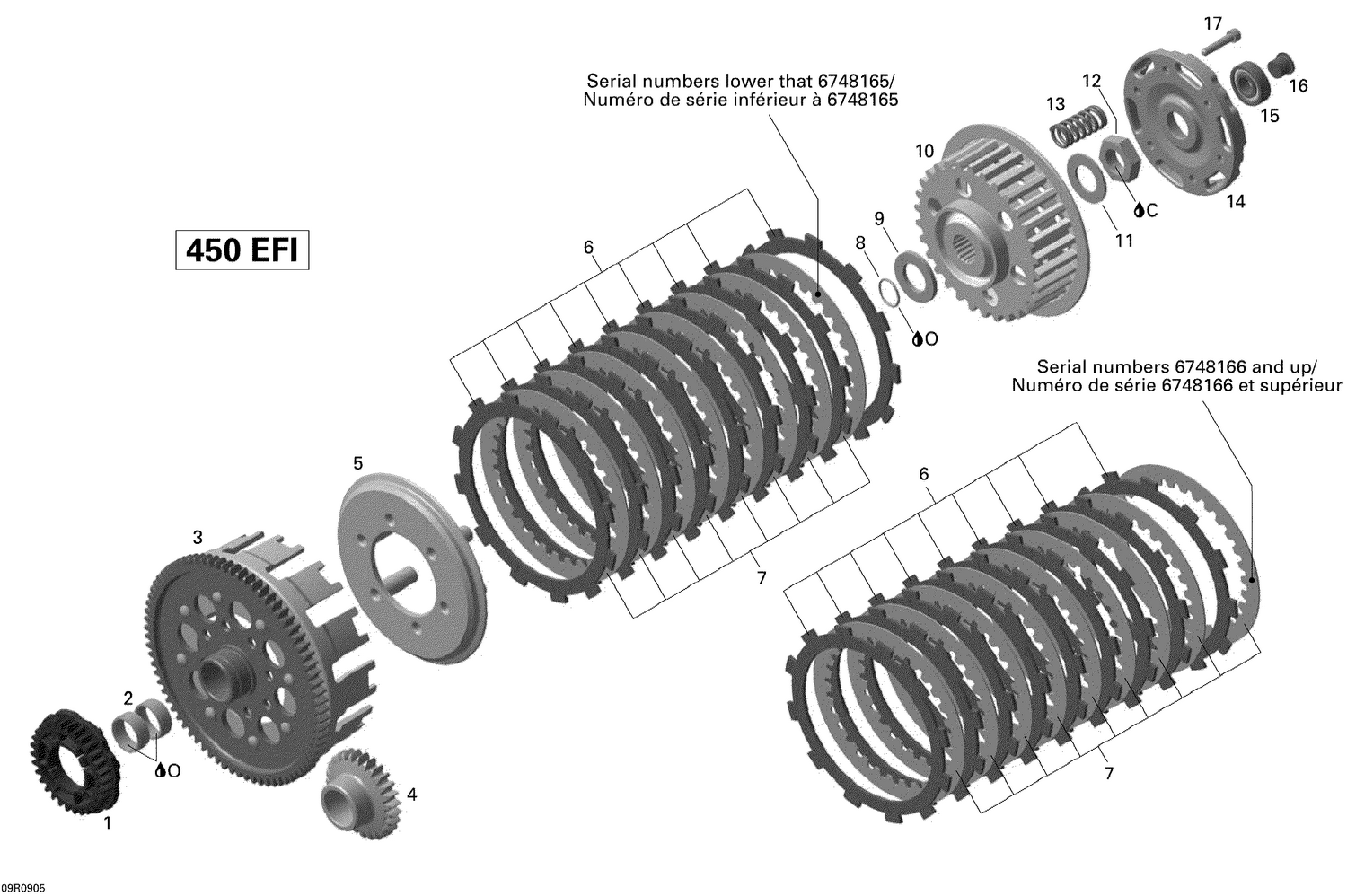

05- Clutch
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| C | 219703000 | Sealant Loctite 648 This part replaces 413711400. |
| 1 | 420434710 | OIL PUMP GEAR - Call your local BRP dealership |
| 2 | 420232742 | Needle Bearing |
| 3 | 420259855 | Clutch Drum |
| 4 | 420434680 | DRIVE GEAR, 27 TEETH - Call your local BRP dealership |
| 5 | 420259889 | Inner Plate |
| 6 | 420259904 | Friction Plate 2.6 mm |
| 8 | 420250890 | O-Ring |
| 9 | 420227601 | THRUST WASHER - Call your local BRP dealership |
| 11 | 420245680 | Spring Washer |
| 12 | 420942220 | HEX. NUT M18 - Call your local BRP dealership |
| 13 | 420239625 | Clutch Spring |
| 14 | 420259131 | Retaining Plate |
| 15 | 420232400 | Balll Bearing |
| 16 | 420259141 | THRUST HUB - Call your local BRP dealership |
| 17 | 420240187 | Socket Head Screw M5 X 25 This part replaces 420240186. |
