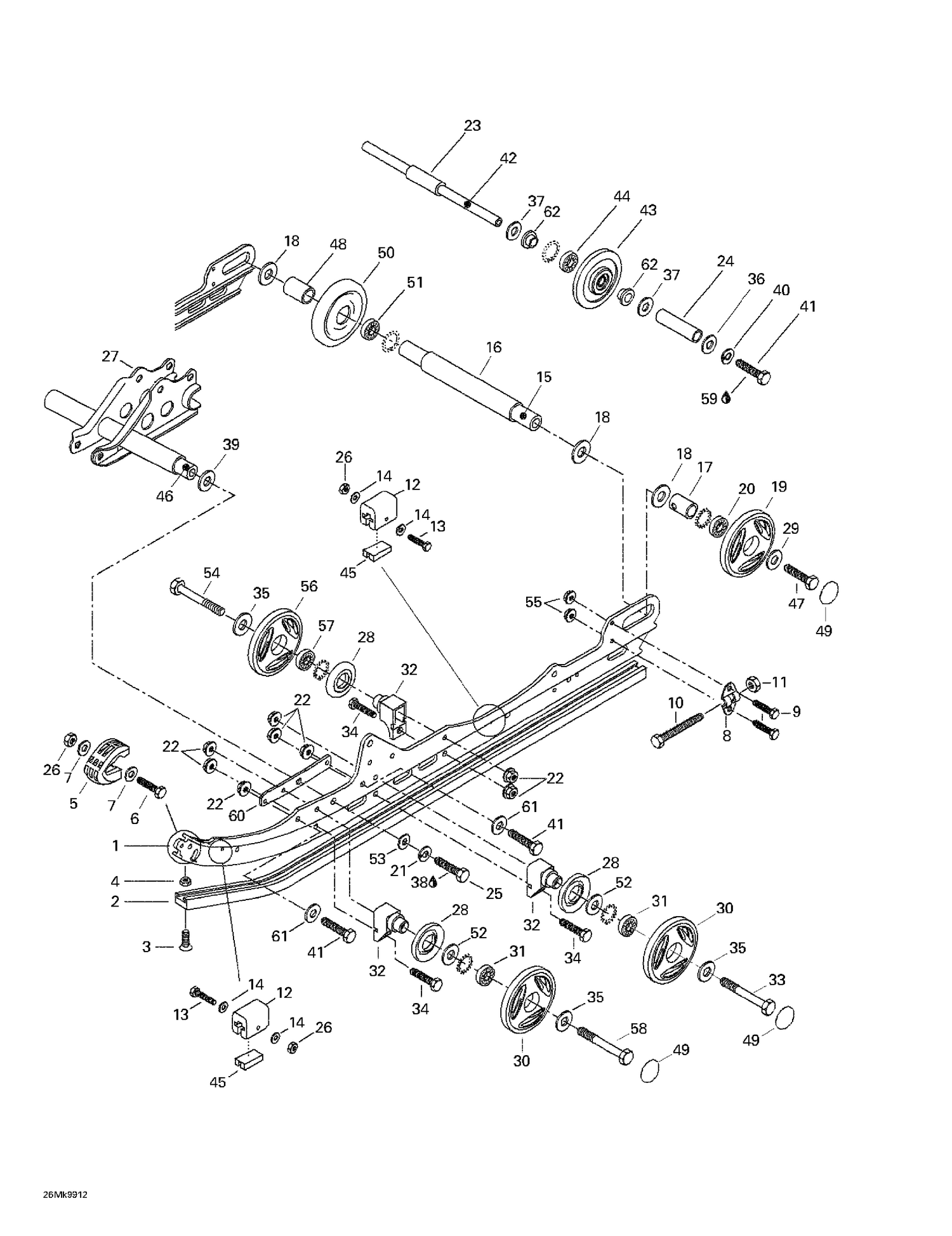

| Ref | Part Number | Description |
|---|
| 3 |
208562560 |
Phillips Screw M6 X 25 This part replaces 216362560. |
| 4 |
232561434 |
Elastic Stop Nut M6 This part replaces 228561045. |
| 5 |
572075400 |
RUNNER PROTECTOR - Call your local BRP dealership |
| 6 |
222052565 |
SCREW-HEX.CAP DIN.933 - Call your local BRP dealership |
| 7 |
391301600 |
Washer |
| 8 |
503155300 |
Tensioner |
| 9 |
207162044 |
Hex. Screw M6 X 20 |
| 10 |
230100044 |
HEX. SCREW M10 X 100 - Call your local BRP dealership |
| 11 |
233601416 |
Elastic Locking Nut M10 X 1.5 This part replaces 228501045. |
| 12 |
570063000 |
Rubber Stopper |
| 13 |
222054065 |
SCREW-HEX.CAP DIN.931 - Call your local BRP dealership |
| 14 |
250200081 |
FLAT WASHER - Call your local BRP dealership This part replaces 391301700. |
| 15 |
503167900 |
Rear Axle This part replaces 503160700. |
| 16 |
503183000 |
CENTRAL SPACER - Call your local BRP dealership |
| 17 |
503189809 |
Outer Spacer This part replaces 503189075. |
| 18 |
503180400 |
Washer |
| 20 |
293350115 |
Ball Bearing This part replaces 405404500. |
| 21 |
224721218 |
Lock Washer 12 mm |
| 22 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 23 |
503153100 |
Spacer |
| 24 |
503188951 |
External Spacer |
| 25 |
222024065 |
Hex. Screw M12 x 40 |
| 26 |
232551414 |
Elastic Stop Nut M5 This part replaces 228551045. |
| 27 |
503188976 |
Welded Shock Support |
| 28 |
572089000 |
LABYRINTH SEAL - Call your local BRP dealership |
| 29 |
503183300 |
Washer |
| 31 |
293350115 |
Ball Bearing This part replaces 405404500. |
| 32 |
503190389 |
SUPPORT - Call your local BRP dealership This part replaces 503174600. |
| 33 |
207088544 |
HEX. SCREW M8 X 85 - Call your local BRP dealership |
| 34 |
207182544 |
Hex. Screw M8 X 25 This part replaces 222082565. |
| 35 |
503183100 |
Washer |
| 36 |
503183200 |
Yellow, Washer |
| 37 |
503154000 |
WASHER - Call your local BRP dealership |
| 38 |
293800005 |
Loctite 271, 10 ml |
| 39 |
503175400 |
Hardened Washer |
| 40 |
234181401 |
Lock Washer 8 mm This part replaces 224781140. |
| 41 |
207183044 |
Hex. Screw M8 X 30 This part replaces 222083065. |
| 42 |
503160000 |
Wheel Support Axle |
| 44 |
293350115 |
Ball Bearing This part replaces 405404500. |
| 45 |
572084800 |
Reinforcement Stopper |
| 46 |
503174900 |
Lower Axle |
| 47 |
250000019 |
Hex. Screw With Nylon This part replaces 732601002. |
| 48 |
503182900 |
Inner Spacer |
| 49 |
570063600 |
Wheel Cap |
| 51 |
293350115 |
Ball Bearing This part replaces 405404500. |
| 52 |
503173700 |
WASHER - Call your local BRP dealership |
| 53 |
234021410 |
Flat Washer 12 mm This part replaces 224021251. |
| 54 |
207088044 |
Hex. Screw M8 X 80 |
| 55 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 57 |
293350115 |
Ball Bearing This part replaces 405404500. |
| 58 |
207089044 |
Hex. Screw M8 X 90 |
| 59 |
293800060 |
Loctite 243, 10 ml This part replaces 293800015. |
| 60 |
503189060 |
Reinforcement Plate |
| 61 |
234081410 |
Flat Washer 8 mm This part replaces 224081171. |
