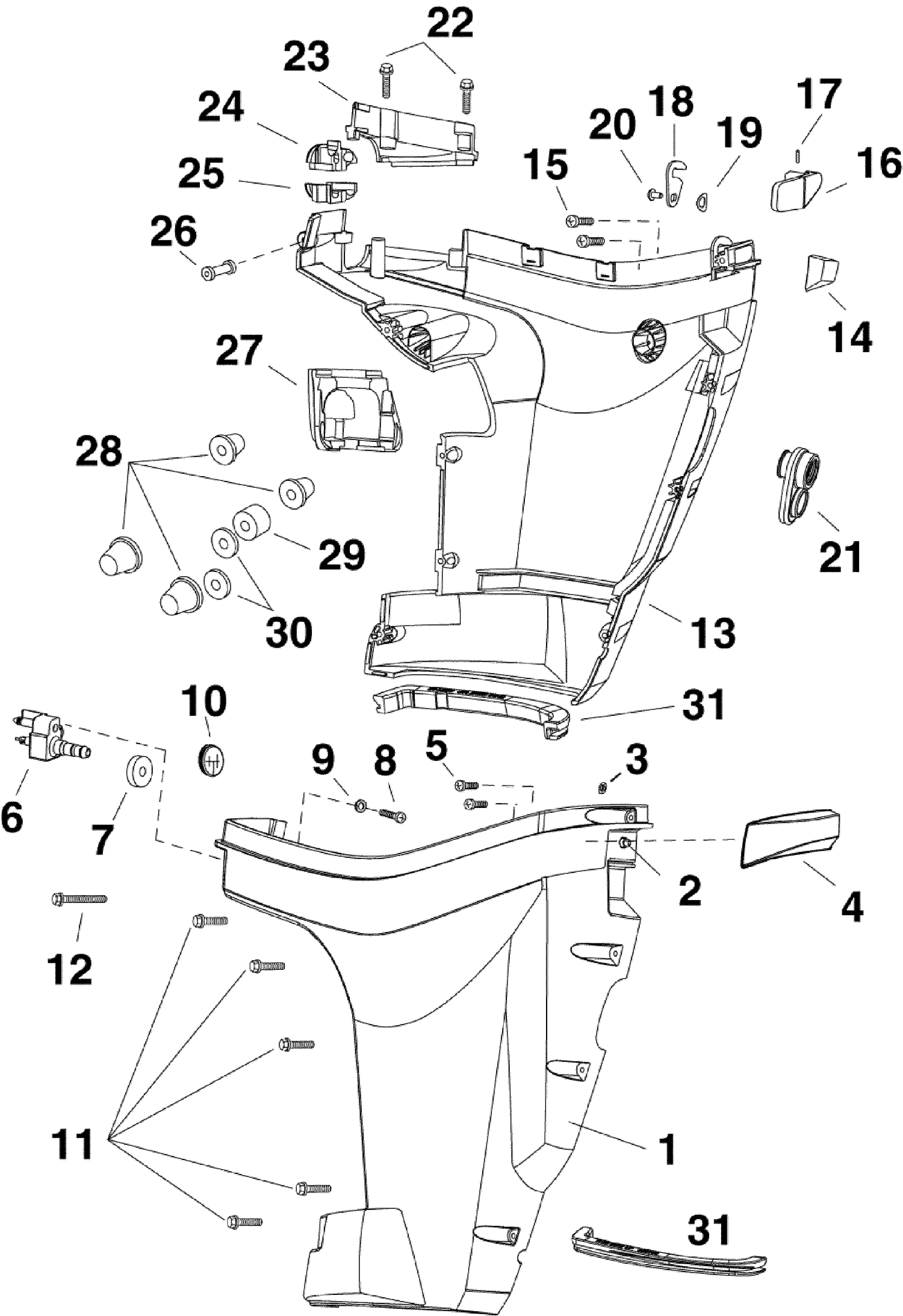

| Ref | Part Number | Description |
|---|
| 1 |
5006278 |
LOWER COVER Assembly, Port |
| 1 |
5008170 |
LOWER COVER Assembly, Port |
| 10 |
0353815 |
GROMMET, Lower port |
| 11 |
0351152 |
SCREW, Port cover to starboard cover |
| 12 |
0353986 |
SCREW, Front latch sleeve |
| 13 |
5006279 |
LOWER COVER Assembly, Starboard |
| 13 |
5008171 |
LOWER COVER Assembly, Starboard |
| 22 |
0351152 |
SCREW, Port cover to starboard cover |
| 23 |
0353550 |
RETAINER COVER, Cabble entry |
| 23 |
0355277 |
RETAINER COVER, Cable entry - White |
| 24 |
0353818 |
GROMMET, Cable entry - upper |
| 25 |
0353819 |
GROMMET, Cable entry - lower |
| 26 |
0353895 |
SLEEVE, Front latch |
| 27 |
0353681 |
SEAL, Steering arm |
| 28 |
0332413 |
MOUNT |
| 29 |
0353805 |
SPACER, Rear mount to block |
| 30 |
0349556 |
Washer |
| 31 |
5008176 |
SEAL KIT, Lower cover to exhaust |
