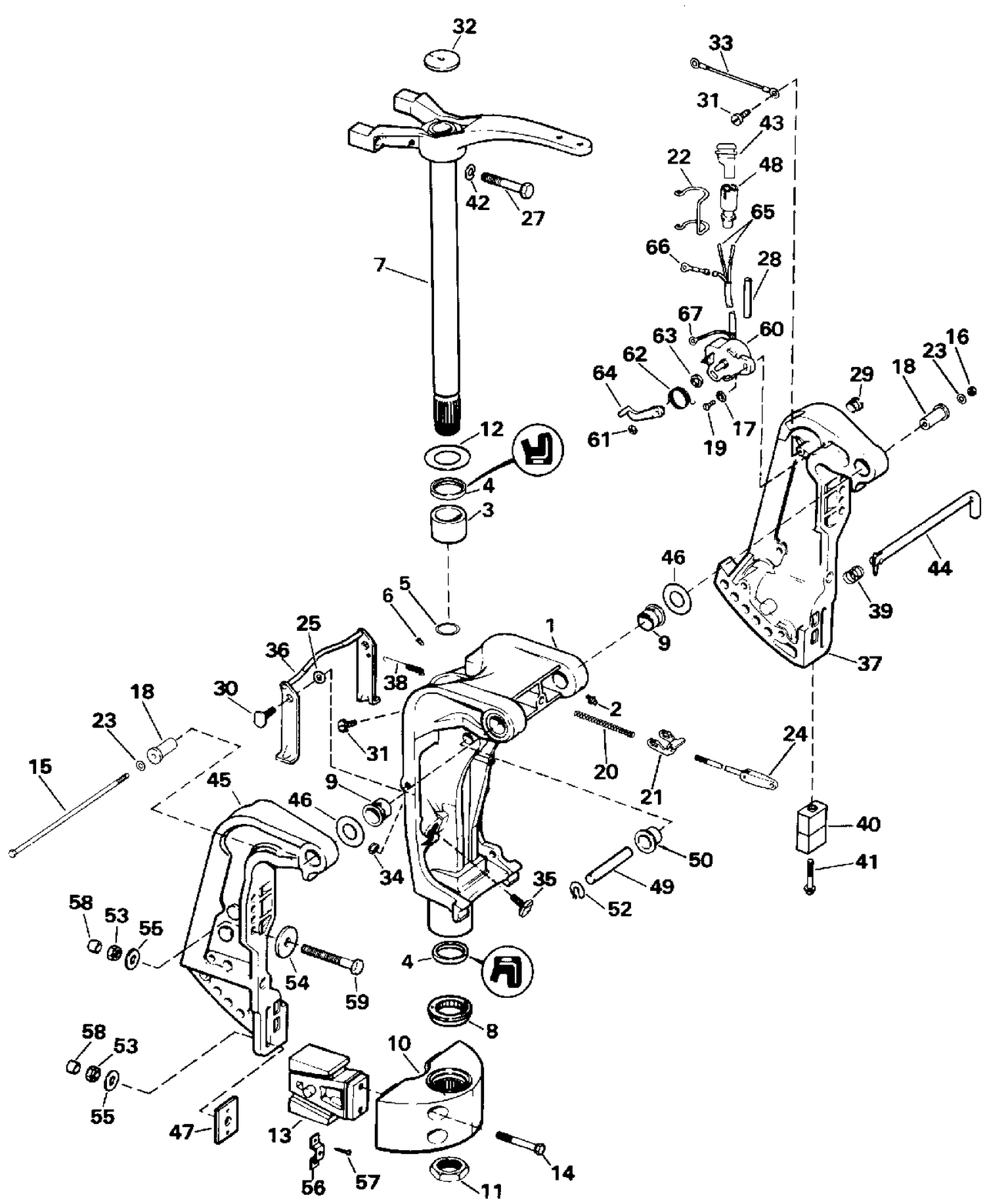

| Ref | Part Number | Description |
|---|
| 1 |
0398937 |
SWIVEL BRACKET |
| 3 |
0329291 |
BAGUE |
| 7 |
0397355 |
STEERING ARM ASSY. |
| 8 |
0327696 |
CONTRE-CROU, arbre d'articulation |
| 9 |
0321035 |
BRUSHING, Swivel bracket |
| 11 |
0320746 |
CROU, support de montage |
| 12 |
0320866 |
RONDELLE DE BUTÉE, arbre d'articulation |
| 13 |
0434631 |
MOUNT ASSY., Lower |
| 14 |
0334936 |
SCREW, Mount |
| 15 |
0329529 |
BOLT TILT SHAFT |
| 18 |
0327197 |
BUSHING, Tilt shaft |
| 20 |
0329793 |
SPRING, Steering friction |
| 21 |
0330296 |
GUARD, Handle |
| 22 |
0512741 |
DISPOSITIF DE RETENUE, conn. de l'interrupteur thermostatique |
| 23 |
0343600 |
WASHER, Screw, pulley This part replaces 0305273. |
| 24 |
0394036 |
HANDLE & SCREW ASSY |
| 27 |
0335612 |
SCREW, Upper |
| 28 |
0512246 |
PIN RECEPTACLE, Coil |
| 30 |
0329109 |
SHOULDER SCREW |
| 31 |
0306014 |
VIS, ancrage |
| 32 |
0322302 |
SEAL, Adapter to frame |
| 33 |
0583967 |
GROUND LEAD |
| 36 |
0390442 |
LOCATING LEVER, Rod |
| 37 |
0396309 |
STERN BRACKET ASSEMBLY, Port |
| 39 |
0321053 |
SORUBG,Thrust rod |
| 40 |
0433458 |
ANODE, Port stern bracket |
| 41 |
0333350 |
SCREW, Anode |
| 42 |
0322624 |
WASHER, Lag screw This part replaces 0313169. |
| 43 |
0512228 |
Male Plug. 2 Terminal |
| 44 |
0436541 |
ROD Assy, Thrust This part replaces 0387278. |
| 45 |
0395844 |
STEERING BRACKET, ASSY., Stbd. |
| 47 |
0318272 |
Nut backing plate (square) 1/2 in. |
| 49 |
0320792 |
PIN |
| 52 |
0321054 |
SPRING CLIP |
| 54 |
0307238 |
RONDELLE |
| 55 |
0320248 |
RONDELLE, écrou |
| 56 |
0318273 |
Bolt hex retainer 1/2 in. |
| 57 |
0319886 |
SCREW |
| 58 |
0318572 |
Bolt thread protective cap 1/2 in. |
| 59 |
0318573 |
SCREW, Bracket mount, 3 1/2 in. (12.7 x 89mm) |
| 59 |
0331578 |
Engine mount bolt 5 x 1/2 in. |
| 59 |
0363011 |
SCREW, Stern bracket mounting, 1/2 x 5.75 in. (146 mm) This part replaces 0321577. |
| 59 |
0363012 |
SCREW, Bracket mounting This part replaces 0313327. |
| 60 |
0583358 |
SENDING UNIT ASSY |
