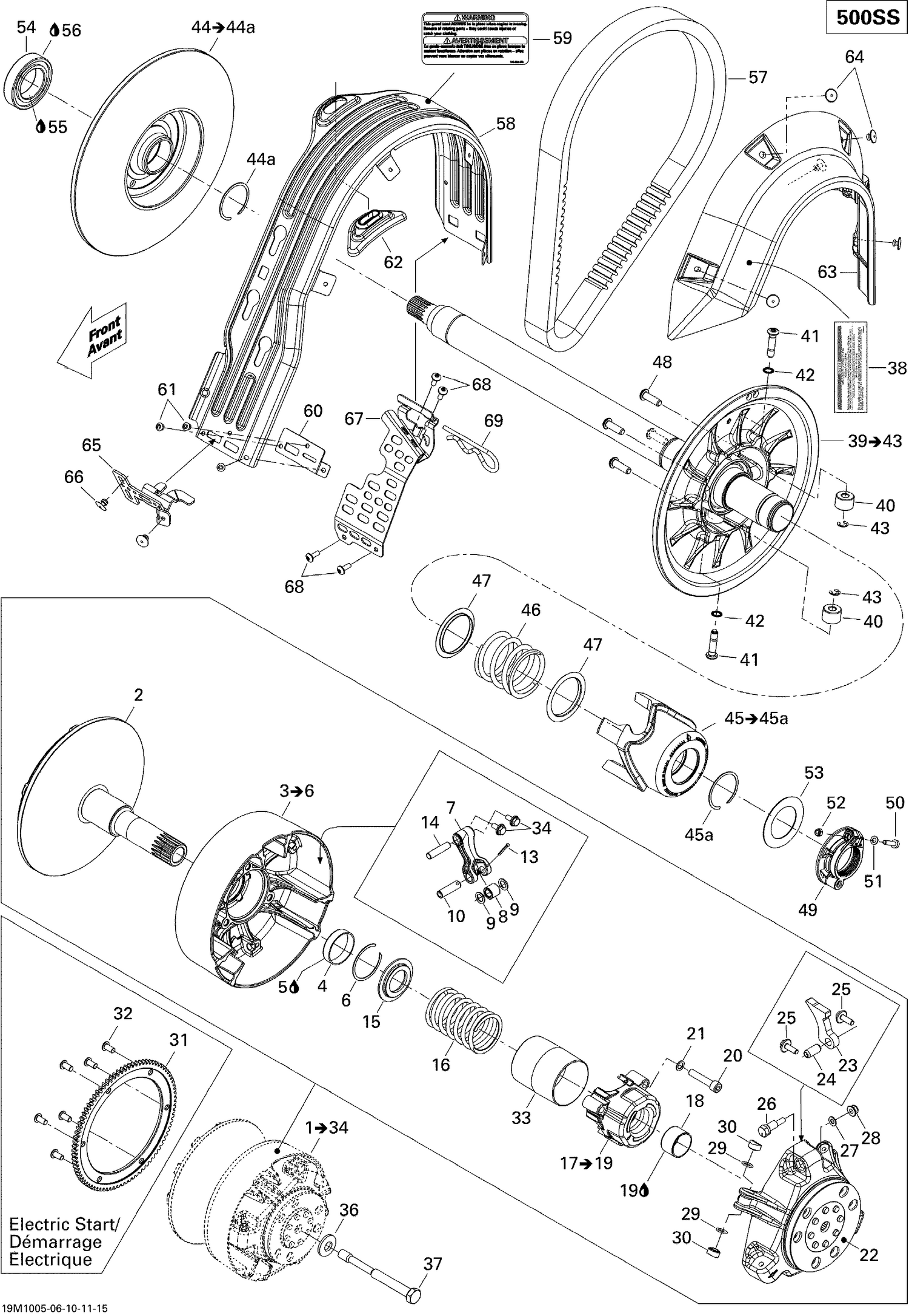

| Ref | Part Number | Description |
|---|
| 2 |
417222937 |
Fixed Flange Ass'y |
| 4 |
417222758 |
Bushing |
| 5 |
219702967 |
Adhesive LOCTITE 680 - Call your local BRP dealership This part replaces 293800118. |
| 6 |
293370037 |
Circlip |
| 7 |
417222671 |
Lever |
| 8 |
417222947 |
Roller |
| 9 |
417004302 |
Stopper Washer |
| 10 |
417004308 |
Pin |
| 13 |
250400060 |
Cotter Pin This part replaces 732958001. |
| 14 |
417223164 |
Lever Axle |
| 15 |
417222312 |
Spring Seat |
| 16 |
414817900 |
Spring, Violet/Violet |
| 18 |
417009204 |
Bushing |
| 19 |
413703100 |
Loctite 609, 10 ml |
| 20 |
205084044 |
Socket Head Screw M8 X 1.25 X 40 |
| 21 |
250200009 |
Lock Washer 8 mm |
| 22 |
417223238 |
Governor Cup |
| 23 |
417222515 |
Ramp 412 |
| 24 |
250400050 |
Spring Pin M10 X 22 |
| 25 |
250000418 |
Hex. Flange Screw M6 X 18, Scotch Grip |
| 26 |
417223197 |
CALIBRATION SCREW - Call your local BRP dealership |
| 27 |
417005600 |
Washer |
| 28 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 29 |
732401030 |
O-Ring |
| 30 |
417222992 |
Slider Shoe |
| 33 |
417009205 |
Guard |
| 34 |
250000412 |
Hex. Flange Screw M6 X 12, Scotch Grip |
| 36 |
250200006 |
Spring Washer 14 mm |
| 37 |
417120000 |
Drive Pulley Bolt This part replaces 417300393. |
| 38 |
516003708 |
DECAL, NOTICE, DRIVE PULLEY BOLT - Call your local BRP dealership |
| 40 |
417127016 |
Pulley Roller |
| 41 |
417127259 |
Pivot Stud This part replaces 417127128. |
| 42 |
250200009 |
Lock Washer 8 mm |
| 43 |
414753500 |
Circlip |
| 44a |
293370049 |
Circlip |
| 45a |
293370049 |
Circlip |
| 46 |
417127039 |
Black, Return Spring |
| 47 |
417127116 |
Swivel Abutment |
| 48 |
250000283 |
Torx Screw M8 X 25, Scotch Grip |
| 49 |
415129604 |
Calibration Ass'y This part replaces 417127173. |
| 50 |
208652044 |
Phillips Screw M5 X 20 |
| 51 |
234051410 |
Flat Washer M5 |
| 52 |
232551414 |
Elastic Stop Nut M5 |
| 53 |
417127155 |
Washer |
| 54 |
504152574 |
Ball Bearing |
| 55 |
413703100 |
Loctite 609, 10 ml |
| 56 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 57 |
417300586 |
Drive Belt This part replaces 417300197. |
| 58 |
417300357 |
Belt Guard |
| 59 |
516002670 |
WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership |
| 60 |
417300380 |
Reinforcement |
| 61 |
390909200 |
Avex Rivet |
| 62 |
417300381 |
Guide |
| 63 |
417300356 |
Side Protector |
| 64 |
293150103 |
Pop Rivet 3/16" |
| 65 |
417300360 |
FRONT BELT GUARD BRACKET - Call your local BRP dealership |
| 66 |
293150104 |
Pop Rivet 3/16" |
| 67 |
417300448 |
BELT GUARD BRACKET - Call your local BRP dealership This part replaces 417300375. |
| 68 |
250000742 |
Torx Screw M5 X 14 This part replaces 250000145. |
