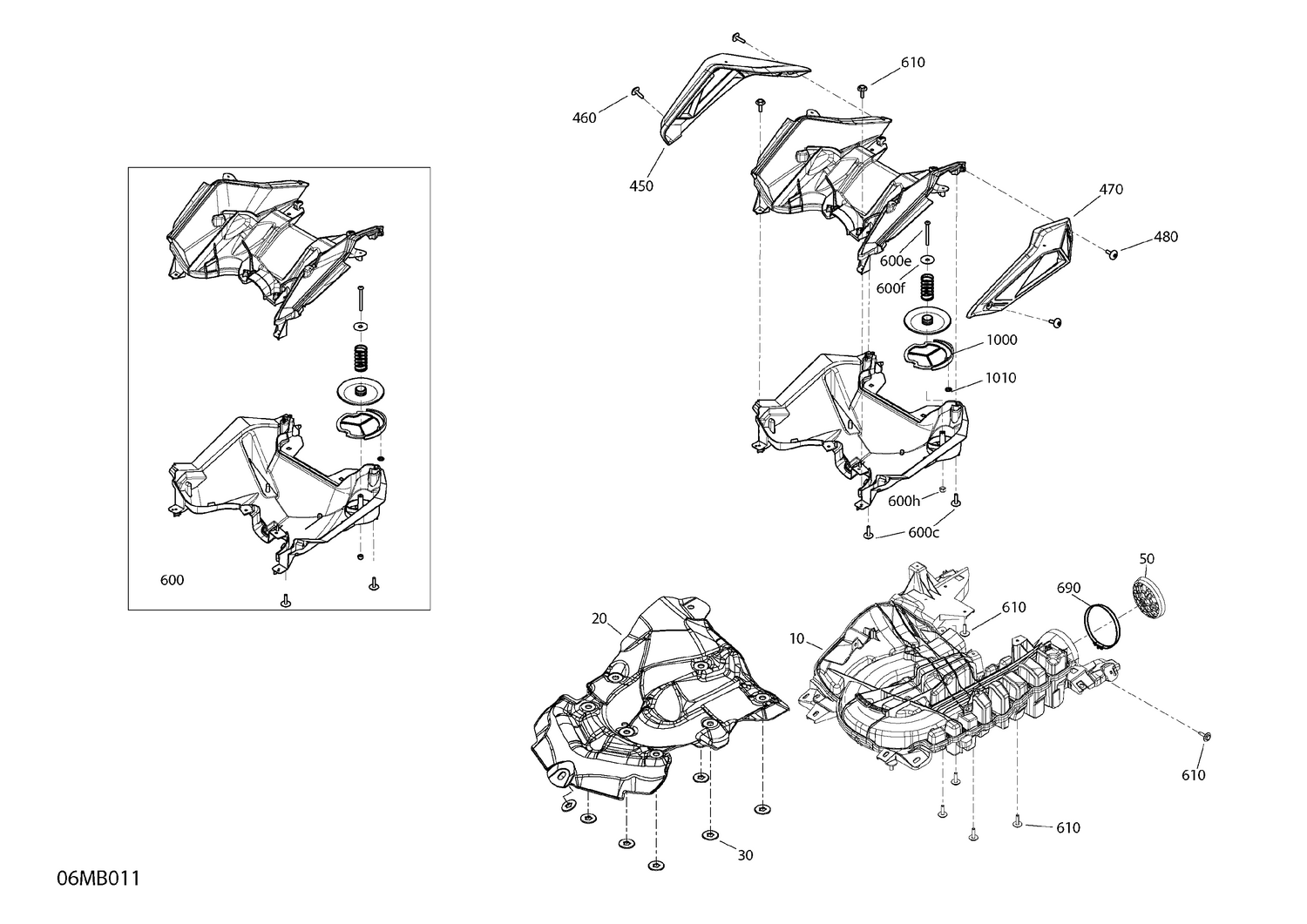

02- Engine - Air Intake
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 508000874 | Secondary Chamber |
| 20 | 508000914 | Acoustic Cover |
| 30 | 508000853 | Push Nut |
| 50 | 508000967 | Filter (Honeycomb) |
| 450 | 508000906 | RH Air Filter (Nitex Mesh) |
| 460 | 250000889 | Screw M4 X 16 |
| 470 | 508000905 | LH Air Filter (Nitex Mesh) |
| 480 | 250000889 | Screw M4 X 16 |
| 600c | 250000725 | Screw M4 X 16 |
| 600e | 205444056 | Socket Head Screw M4 X 40 |
| 600f | 224060201 | Flat Washer |
| 600h | 232541414 | Elastic Stop Nut M4 |
| 610 | 250000725 | Screw M4 X 16 |
| 690 | 293650247 | Gemi Clamp |
| 1000 | 508000815 | Pop Off Filter |
