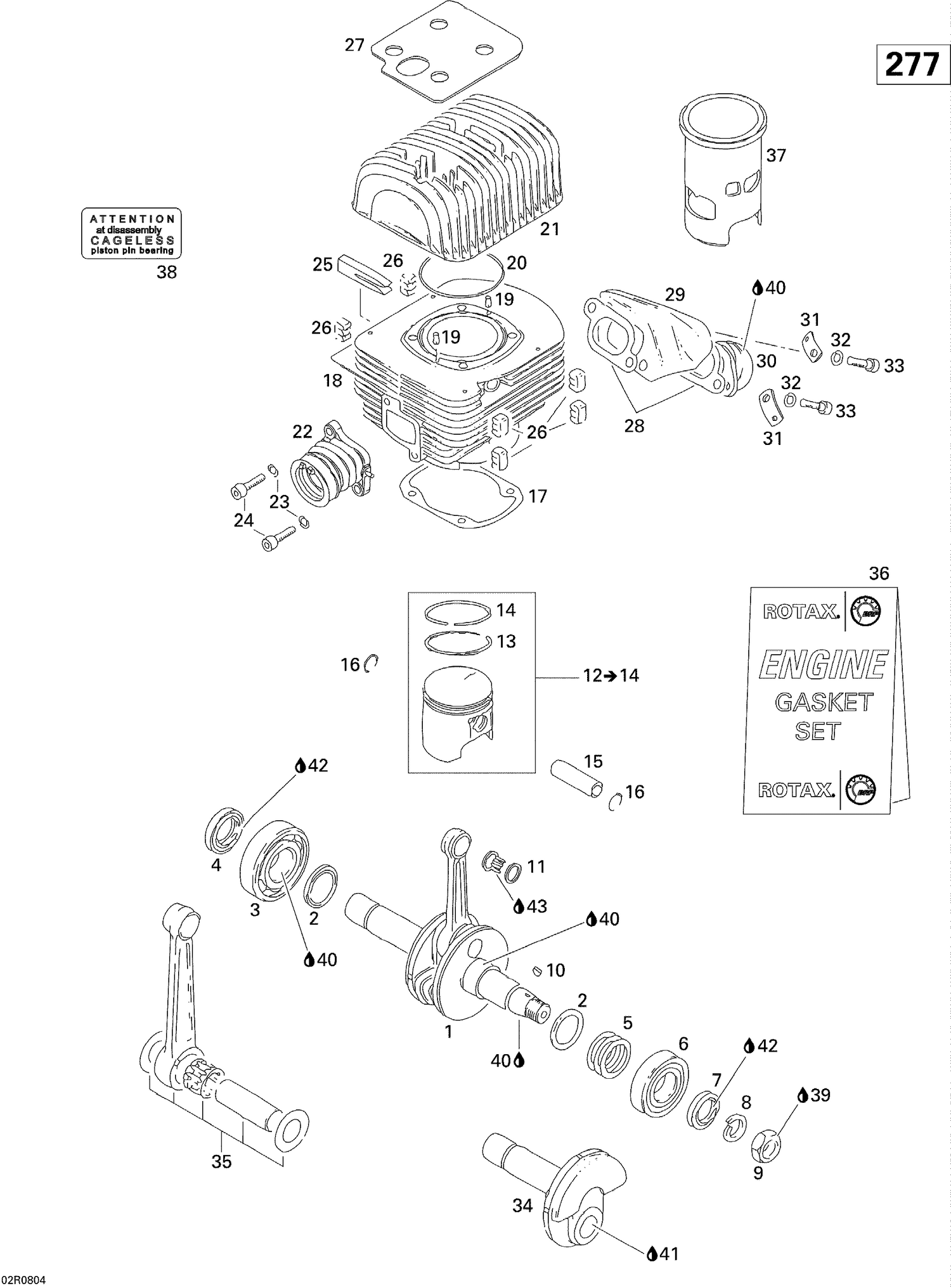

| Ref | Part Number | Description |
|---|
| 1 |
420995307 |
Crankshaft |
| 2 |
420827441 |
SPACER RING - Call your local BRP dealership This part replaces 420827440. |
| 3 |
420932571 |
BALL BEARING - Call your local BRP dealership |
| 4 |
420850050 |
Oil Seal |
| 5 |
420944582 |
SHIM 0.3 - Call your local BRP dealership |
| 5 |
420944583 |
SHIM 0.1 - Call your local BRP dealership |
| 5 |
420944584 |
Shim 0.5 |
| 5 |
420944586 |
SHIM 0.2 - Call your local BRP dealership |
| 6 |
420932581 |
Ball Bearing |
| 7 |
420230425 |
Oil Seal |
| 8 |
420945759 |
Lock Washer, 22 mm |
| 9 |
420842239 |
Hex. Nut, M22 X 1.5 This part replaces 420842234. |
| 10 |
420246055 |
Woodruff Key |
| 11 |
420832320 |
Needle Bearing |
| 13 |
420915850 |
RECTANGULAR RING 72 MM, STD - Call your local BRP dealership |
| 13 |
420915851 |
RECTANGULAR RING 72.25 MM, 1ST - Call your local BRP dealership |
| 13 |
420915852 |
RECTANGULAR RING 72.5 MM, 2ND - Call your local BRP dealership |
| 14 |
420815200 |
SEMI-TRAPEZ RING 72.0 MM, STD - Call your local BRP dealership |
| 14 |
420815201 |
SEMI-TRAPEZ RING 72.25 MM, 1ST - Call your local BRP dealership |
| 14 |
420815202 |
SEMI-TRAPEZ RING 72.5 MM, 2ND - Call your local BRP dealership |
| 15 |
420916186 |
GUDGEON PIN - Call your local BRP dealership |
| 16 |
420945735 |
Piston Circlip |
| 17 |
420831858 |
Gasket 0.4 mm |
| 18 |
420623180 |
CYLINDER WITH SLEEVE - Call your local BRP dealership |
| 19 |
420929650 |
Drive Pin 5 X 10 |
| 20 |
293300026 |
O-Ring |
| 21 |
420823786 |
CYLINDER HEAD - Call your local BRP dealership |
| 22 |
420667274 |
Tubulure D'Adm.*Socket-Intake This part replaces 420667270. |
| 23 |
420945832 |
Washer-Lock Din.128 This part replaces 420945752. |
| 24 |
205082544 |
Socket Head Screw M8 X 25 |
| 25 |
420860100 |
RUBBER FIN - Call your local BRP dealership |
| 26 |
420860097 |
NOISE DAMPER - Call your local BRP dealership |
| 27 |
420960130 |
SILENT BLOCK - Call your local BRP dealership |
| 28 |
420831847 |
Gasket 1 mm |
| 29 |
420975720 |
AIR DEFLECTOR - Call your local BRP dealership |
| 30 |
420978836 |
Exhaust Socket |
| 31 |
420953170 |
SPRING BRACKET - Call your local BRP dealership |
| 32 |
420845311 |
Lock Washer |
| 33 |
205083044 |
Socket Head Screw M8 X 30 |
| 34 |
Not |
Available As Spare Part - PTO Crankshaft |
| 35 |
Not |
Available As Spare Part - Rod Repair Kit |
| 36 |
420992069 |
Ens.Joint Etanc*Kit-Gasket This part replaces 420992068. |
| 37 |
Not |
Available As Spare Part - Cylinder Sleeve |
| 38 |
420897280 |
Cageless Label |
| 39 |
293800060 |
Loctite 243, 10 ml |
| 40 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 41 |
219703000 |
Sealant Loctite 648 This part replaces 413711400. |
| 42 |
413707000 |
Dow Corning 111, 150 g |
