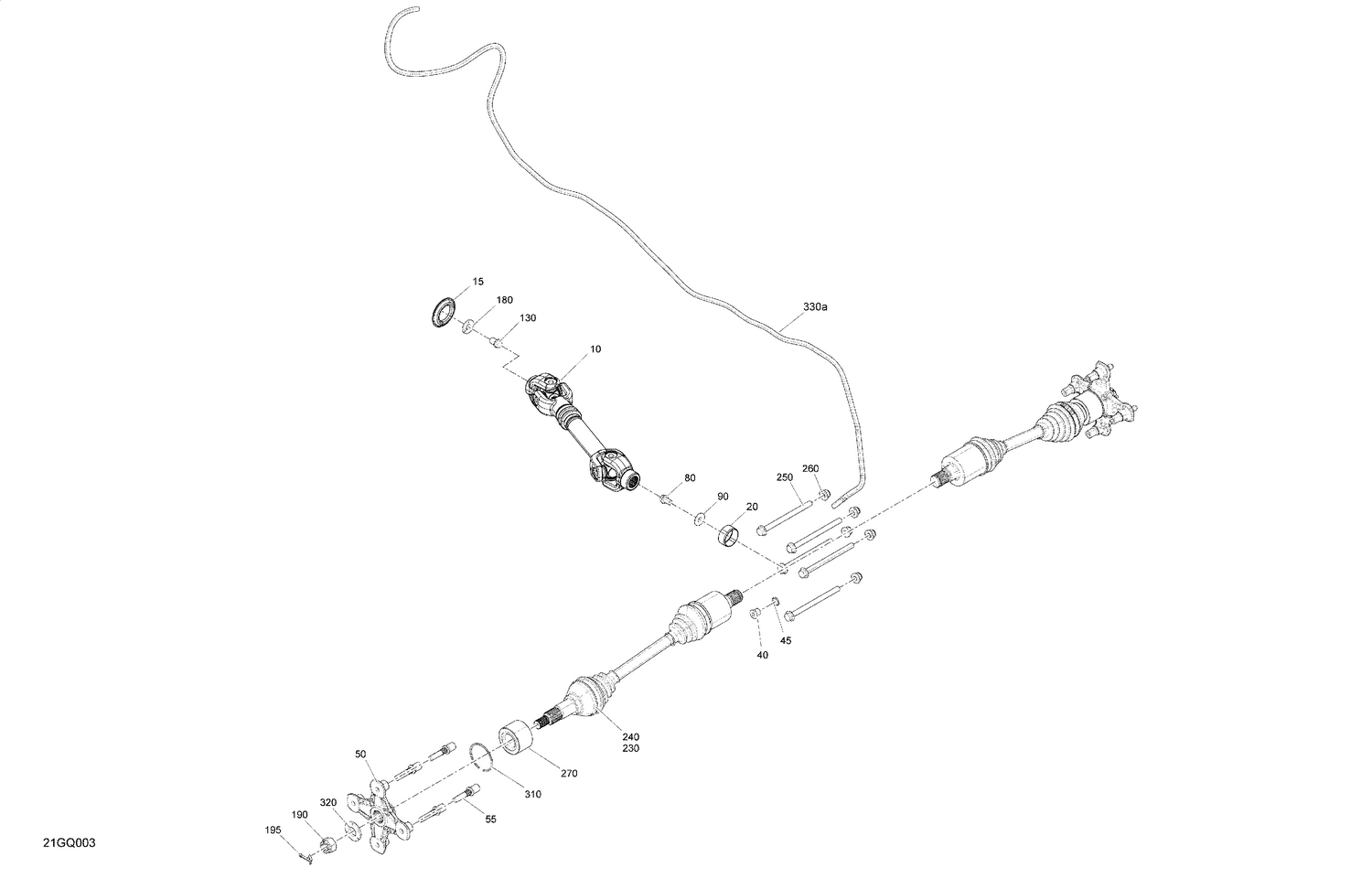

04- Drive - Rear - Common Parts - Europe
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 703500986 | Shaft Ass'y Kit |
| 15 | 705501123 | Protector |
| 20 | 705400036 | Wear Ring |
| 40 | 705500504 | Fill Level Plug |
| 45 | 705500506 | Copper Washer |
| 50 | 705501900 | Wheel Hub |
| 55 | 250300643 | Wheel Stud This part replaces 250300642. |
| 80 | 250001044 | Hex. Flange Screw M10 X 16 S.GRIP |
| 90 | 250200014 | Flat Washer M10 |
| 130 | 250001039 | Hex Flange Screw M12 X 16 |
| 180 | 250200005 | Conical Spring Washer M12 |
| 190 | 232291413 | Hex. Flange Castellated Nut M18 |
| 195 | 250400071 | Cotter Pin |
| 230 | 705501897 | RH Half Shaft Ass'y |
| 240 | 705501898 | LH Half Shaft Ass'y |
| 250 | 250001041 | Hex. Flange Screw M10 X 135 |
| 260 | 233201436 | Hex. Flange Elastic Nut M10 |
| 270 | 293350150 | Ball Bearing |
| 310 | 293370019 | Circlip |
| 320 | 250200171 | Conical Spring Washer M18 |
