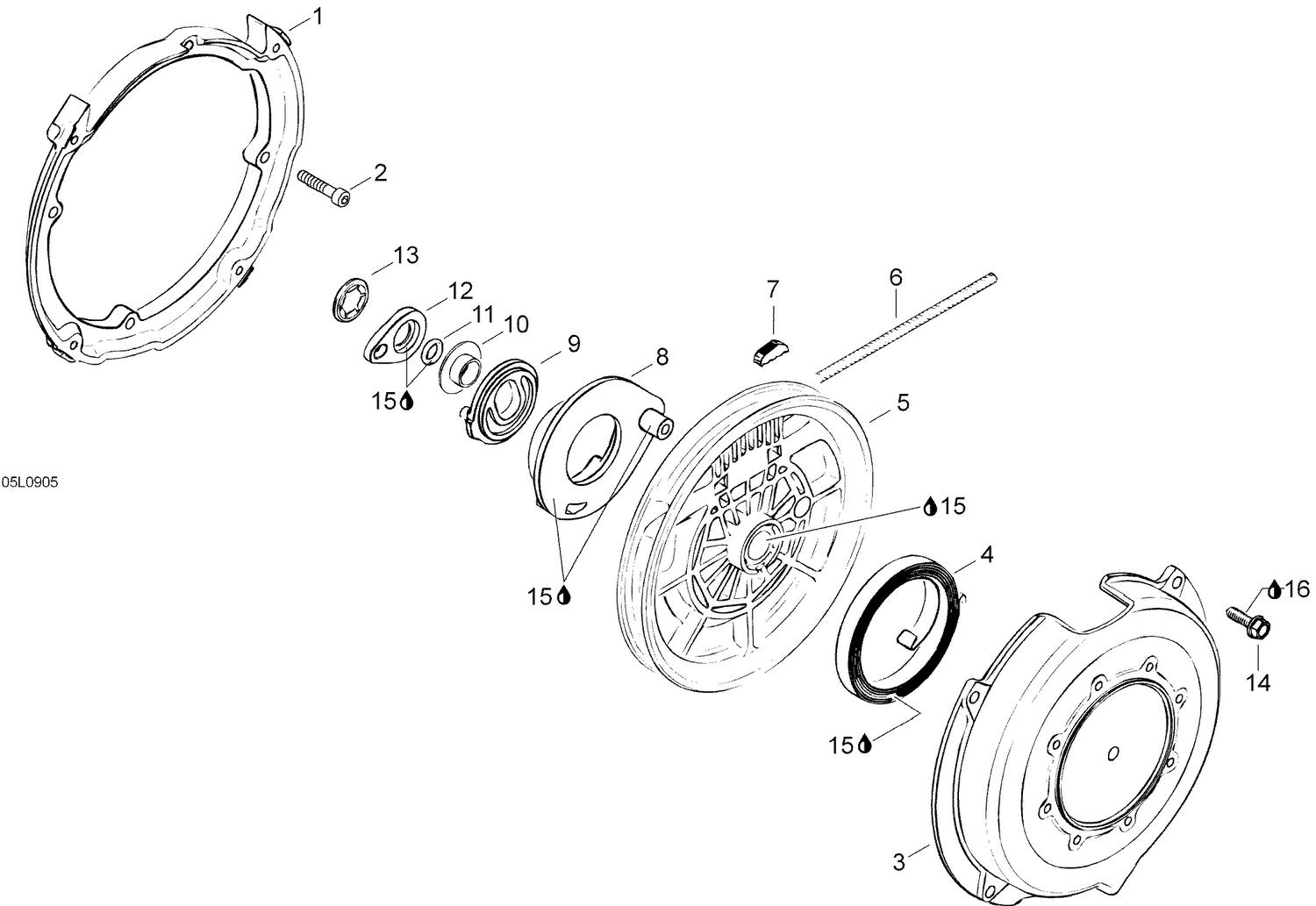

04- Rewind Starter
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420810955 | Connecting Flange This part replaces 420810952. |
| 2 | 420440207 | Flanged Torx Screw M6X20-SW8/T30 This part replaces 420440202. |
| 3 | Not | Available As Spare Part - Starter housing |
| 4 | 420939115 | Rewind Spring Ass'y |
| 5 | 420852480 | Rope sheave |
| 6 | 412500200 | Starter rope |
| 7 | 420852070 | Key clamp |
| 8 | 420852296 | Pawl |
| 9 | 420852305 | PAWL LOCK - Call your local BRP dealership |
| 10 | 420847926 | Stage Sleeve This part replaces 420847925. |
| 11 | 420250400 | O-ring |
| 12 | 420852520 | Lock ring |
| 13 | 420845560 | Locking element |
| 14 | 420941251 | SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250. |
| 15 | 420899763 | Molykote PG 54, 10g |
