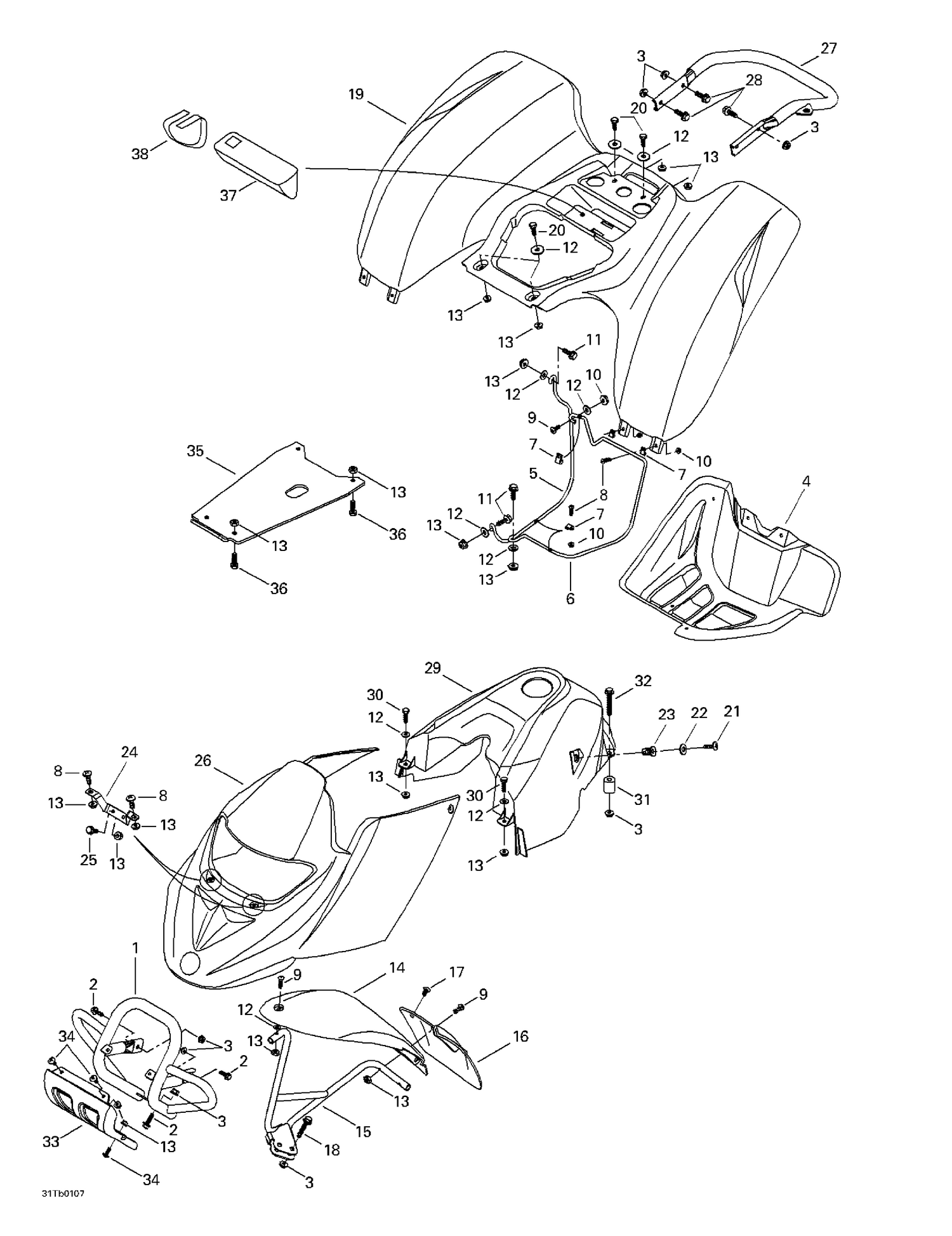

| Ref | Part Number | Description |
|---|
| 1 |
715000172 |
BUMPER DS - Call your local BRP dealership This part replaces 705000142. |
| 2 |
207682544 |
Hex. Flange Screw M8 X 25 |
| 3 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 4 |
705000301 |
RH FOOT PROTECTOR - Call your local BRP dealership |
| 5 |
705000116 |
RH Support |
| 6 |
705000117 |
RH FOOT PROTECTOR SUPPORT, EXTERIOR - Call your local BRP dealership |
| 7 |
293650111 |
Gear Clamp |
| 8 |
250000080 |
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 9 |
250000032 |
PHILLIPS SCREW M6 X 30 - Call your local BRP dealership |
| 10 |
232561414 |
Elastic Stop Nut M6 |
| 11 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 12 |
224061201 |
Flat Washer |
| 13 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 14 |
705000360 |
RH FRONT FENDER, BLACK - Call your local BRP dealership |
| 15 |
705000150 |
RH Fender Support |
| 16 |
705000095 |
RH FRONT MUDGUARD - Call your local BRP dealership |
| 17 |
414939500 |
Dart |
| 18 |
207683544 |
Hex. Flange Screw M8 X 35 |
| 19 |
705000362 |
Rear Fender (Black) |
| 20 |
207161844 |
Hex. Screw M6 X 18 |
| 21 |
250000043 |
Phillips Screw M6 X 20, Scotch Grip |
| 22 |
506117300 |
BUSHING - Call your local BRP dealership |
| 23 |
732610057 |
JACK NUT M6 - Call your local BRP dealership |
| 24 |
705000146 |
FASCIA BRACKET, BLACK - Call your local BRP dealership |
| 25 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 26 |
705000363 |
Front Fascia |
| 27 |
705000143 |
Rear Bumper |
| 28 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 29 |
705000276 |
Tank Cover Kit |
| 30 |
207063044 |
Hex. Screw M6 X 30 |
| 31 |
705000114 |
SPACER - Call your local BRP dealership |
| 32 |
207686044 |
Hex. Flange Screw M8 x 60 |
| 33 |
705000303 |
Protective Plate |
| 34 |
250000080 |
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 35 |
705000304 |
Skid Plate |
| 36 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 37 |
295000178 |
Tool Kit |
| 705000096 |
Garde-boue |
Avant GA - Appelez votre concessionnaire BRP local 705000096 |
| 705000096 |
LH |
FRONT MUDGUARD - Call your local BRP dealership 705000096 |
| 705000119 |
LH |
Support 705000119 |
| 705000119 |
Support |
GA 705000119 |
| 705000120 |
LH |
FOOT PROTECTOR SUPPORT, EXTERIOR - Call your local BRP dealership 705000120 |
| 705000120 |
Support |
De Repose-pied GA, Extérieur - Appelez votre concessionnaire BRP local 705000120 |
| 705000151 |
LH |
Fender Support 705000151 |
| 705000302 |
LH |
FOOT PROTECTOR - Call your local BRP dealership 705000302 |
| 705000302 |
Protège-pied |
GA - Appelez votre concessionnaire BRP local 705000302 |
| 705000361 |
LH |
Front Fender Kit 705000361 |
