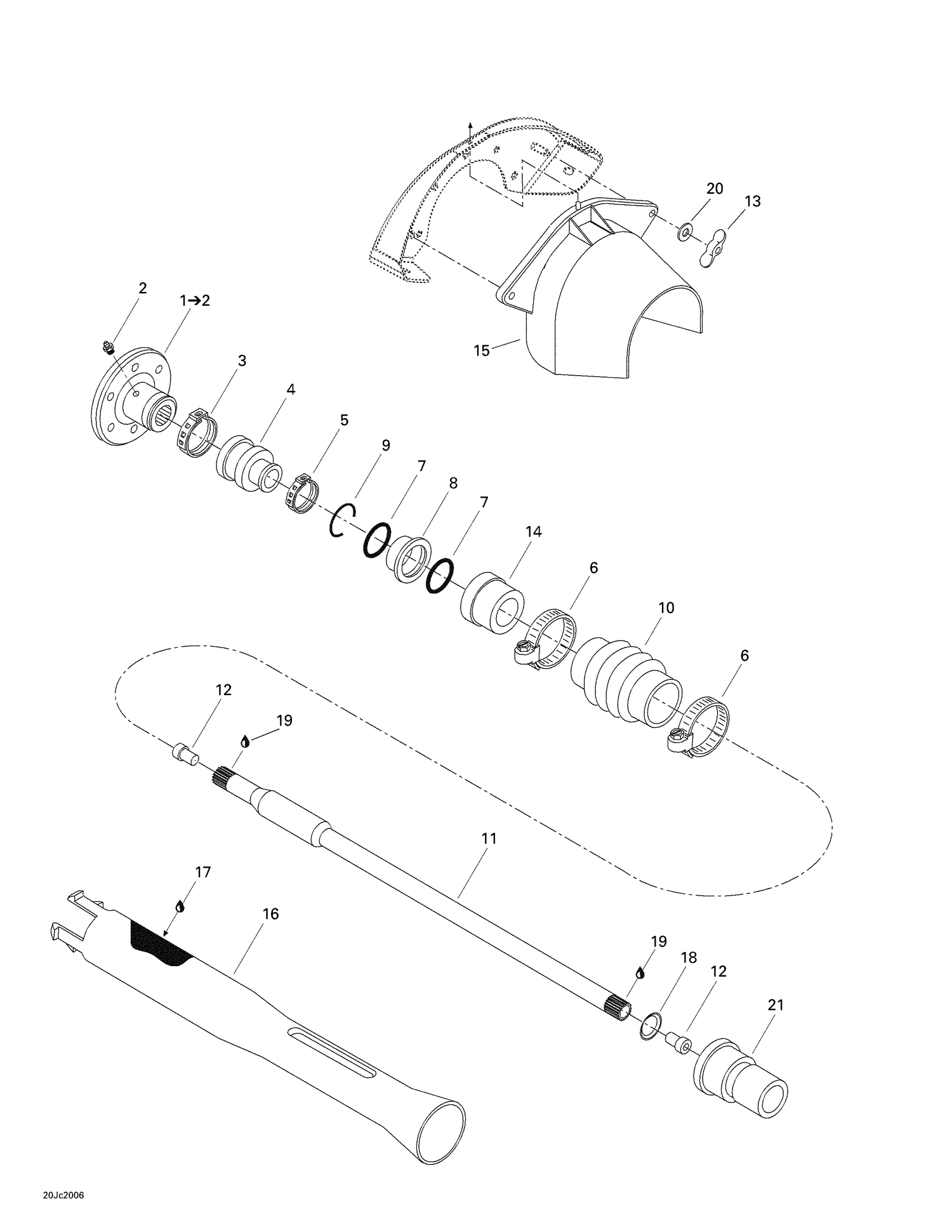

| Ref | Part Number | Description |
|---|
| 2 |
290499113 |
GREASE FITTING - Call your local BRP dealership |
| 3 |
293650021 |
OETIKER CLAMP - Call your local BRP dealership |
| 4 |
272000001 |
RUBBER BOOT - Call your local BRP dealership |
| 5 |
293650067 |
OETIKER CLAMP - Call your local BRP dealership |
| 6 |
293650075 |
Norma Clamp |
| 7 |
293300032 |
O-Ring |
| 8 |
272000064 |
Support Ring |
| 9 |
272000135 |
C-CLIP - Call your local BRP dealership |
| 10 |
272000184 |
BELLOWS - Call your local BRP dealership This part replaces 272000167. |
| 11 |
272000151 |
DRIVE SHAFT - Call your local BRP dealership |
| 12 |
272000019 |
DRIVE SHAFT PLUG - Call your local BRP dealership |
| 13 |
232681100 |
Wing Nut M8 |
| 14 |
272000770 |
Carbon Ring This part replaces 272000042. |
| 15 |
272000094 |
FLYWHEEL GUARD - Call your local BRP dealership |
| 16 |
204120135 |
SHAFT PROTECTEUR - Call your local BRP dealership |
| 17 |
219701421 |
Instant Gasket This part replaces 293800053. |
| 18 |
204120132 |
Retaining Ring |
| 19 |
293550010 |
Synthetic Grease, 400 G |
| 20 |
234082600 |
Flat Washer 8 mm, Stainless |
