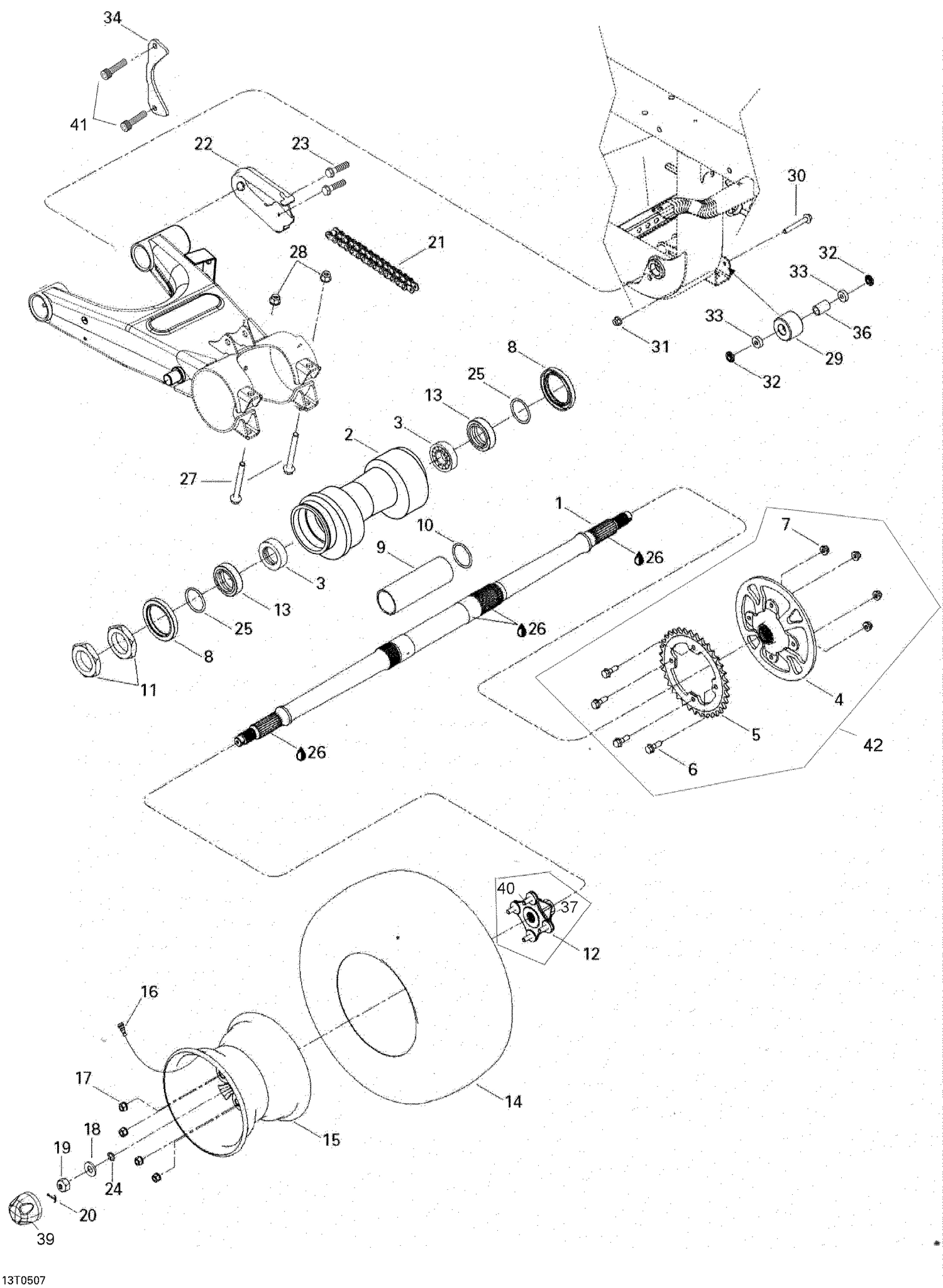

08- Drive System, Rear
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A42301179001 | REAR AXLE - Call your local BRP dealership |
| 2 | A52200179000 | CHAIN TENSIONNER - Call your local BRP dealership |
| 3 | A961006007LLU | BALL BEARING - Call your local BRP dealership |
| 4 | A42610179001 | Hub |
| 5 | 705500219 | Sprocket, 35 Teeth |
| 6 | 207582586 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 7 | 233281416 | Hex. Elastic Flange Nut M8 |
| 8 | A96500506810 | OIL SEAL - Call your local BRP dealership |
| 9 | 705500291 | SPACER - Call your local BRP dealership |
| 10 | 705500292 | RETAINER RING - Call your local BRP dealership |
| 11 | 705500293 | Locking Nut |
| 12 | A42035179000 | Wheel Hub Ass'y |
| 13 | A52109179000 | WEAR RING - Call your local BRP dealership |
| 14 | 705500294 | Rear Tire |
| 15 | 705500295 | Rear Rim |
| 16 | 705400193 | Rim Valve With Cap |
| 17 | 250100042 | Steel Wheel Nut |
| 18 | 705500481 | FORMED WASHER - Call your local BRP dealership |
| 19 | 232591414 | Elastic Stop Nut M18 |
| 20 | 250400036 | Cotter Pin This part replaces 250400016. |
| 21 | A40530179000 | Chain |
| 22 | A40533179000 | SHOE SLIDER - Call your local BRP dealership |
| 23 | 207661644 | Hex. Flange Screw M6 X 16 |
| 24 | 293300082 | O-RING - Call your local BRP dealership |
| 25 | 293300089 | O-RING - Call your local BRP dealership |
| 26 | 293550030 | Grease, Super Lube |
| 27 | A9600010090 | Hex. Flange Screw M10 X 90 |
| 28 | A9035110000 | Elastic Flange Nut M10 |
| 29 | A40537179000 | ROLLER CHAIN - Call your local BRP dealership |
| 30 | 207686044 | Hex. Flange Screw M8 x 60 |
| 31 | 233281416 | Hex. Elastic Flange Nut M8 |
| 32 | 705500398 | SPACER - Call your local BRP dealership |
| 33 | 293350039 | BALL BEARING - Call your local BRP dealership |
| 34 | A40516179000 | CHAIN GUIDE - Call your local BRP dealership |
| 36 | A40539179000 | SPACER - Call your local BRP dealership |
| 37 | Not | Available As Spare Part - Wheel Hub Ass'y |
| 39 | 705400012 | WHEEL CAP - Call your local BRP dealership |
| 40 | 250300013 | Wheel Stud |
| 41 | A9600008016G | SCREW-HEX.FLANGE M8 X 16 - Call your local BRP dealership |
