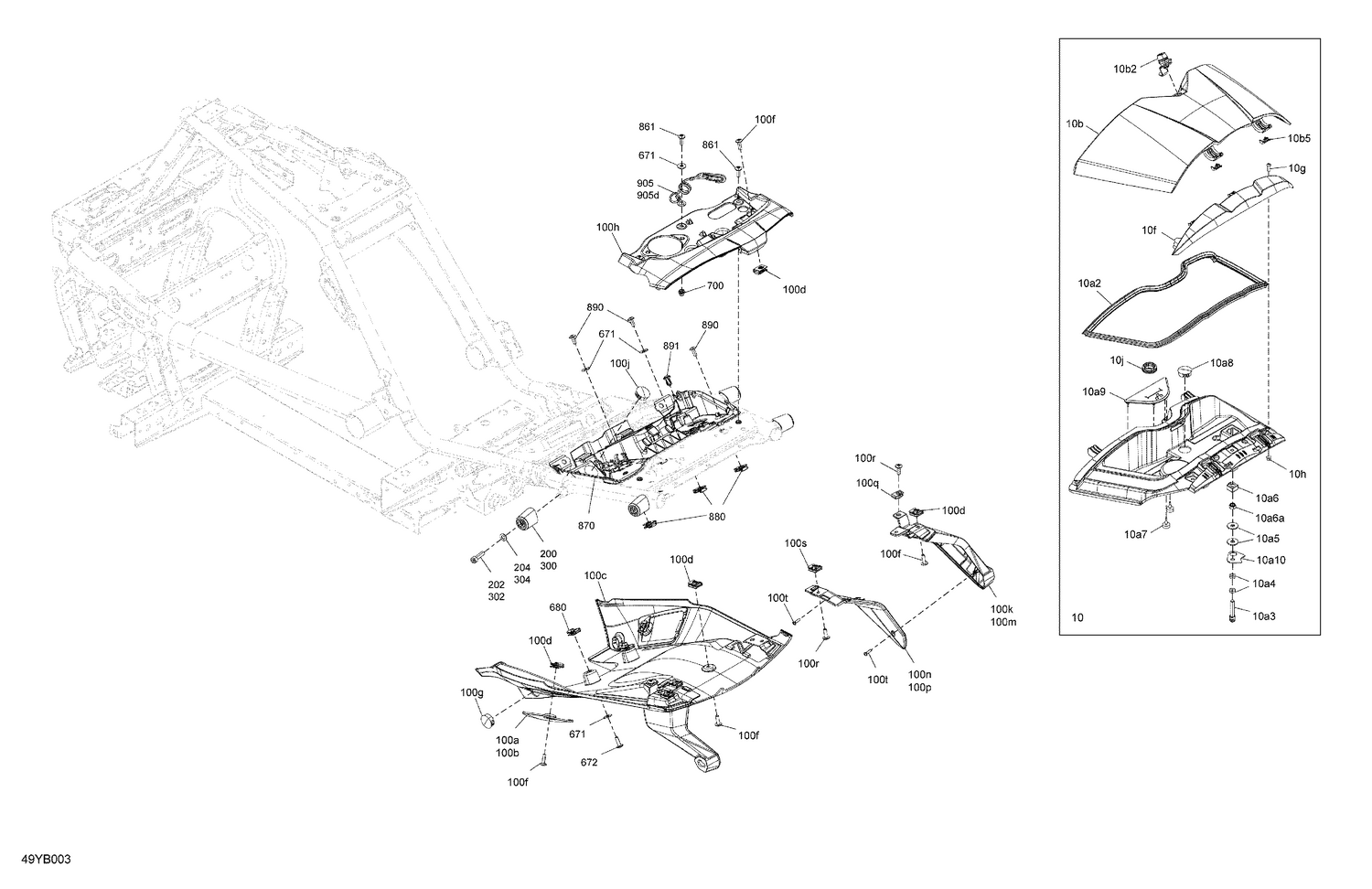

07- Body - Cargo
Parts (46)
| Ref | Part Number | Description |
|---|---|---|
| 10a10 | 708001909 | Washer |
| 10a2 | 293250336 | EXTRUSION - Call your local BRP dealership |
| 10a3 | 708001990 | LUG - Call your local BRP dealership |
| 10a4 | 232180600 | Hex. Jam Nut M8 |
| 10a5 | 234082410 | Flat Washer 8 mm |
| 10a6a | 232581200 | Hex. Elastic Nut M8 Brass |
| 10a7 | 708000759 | Rubber Stopper |
| 10a8 | 414916600 | Black, Nylon Cap |
| 10a9 | 708301604 | Backrest Trim |
| 10b2 | 219800407 | Lock Kit |
| 10b5 | 708301727 | Opening Limiter |
| 10f | 708301416 | Trim |
| 10g | 250000578 | Torx Truss Screw M5 X 16, T25 |
| 10h | 233251434 | Flange Elastic Nut M5 |
| 10j | 710002926 | Grommet Boot |
| 100a | 708301513 | LH Front Cap |
| 100b | 708301514 | RH Front Cap |
| 100c | 708001415 | Under Tail Cover |
| 100d | 250100208 | Panel Nut M6 X 1.0 |
| 100f | 250000446 | Torx Screw M6 X 20, Scotch Grip |
| 100g | 414916600 | Black, Nylon Cap |
| 100h | 708002814 | Taillight Support |
| 100j | 414916600 | Black, Nylon Cap |
| 100k | 708001622 | LH Support |
| 100m | 708001623 | RH Support |
| 100n | 708001624 | LH Cap Support |
| 100p | 708001625 | RH Cap Support |
| 100q | 250100198 | Panel Nut M6 X 1.0 |
| 100r | 250000446 | Torx Screw M6 X 20, Scotch Grip |
| 100s | 250100208 | Panel Nut M6 X 1.0 |
| 100t | 250000759 | Torx Truss Pt K40 X 16 |
| 200 | 708301525 | Frame Protector |
| 202 | 250000823 | Socket Head Screw M8 X 30, Scotch Grip |
| 204 | 234081670 | Stainless Steel Flat Washer 8 mm |
| 300 | 708301525 | Frame Protector |
| 302 | 250000823 | Socket Head Screw M8 X 30, Scotch Grip |
| 304 | 234081670 | Stainless Steel Flat Washer 8 mm |
| 671 | 234062670 | Stainless Steel Flat Washer |
| 672 | 250000446 | Torx Screw M6 X 20, Scotch Grip |
| 680 | 250100208 | Panel Nut M6 X 1.0 |
| 700 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 861 | 250000722 | Torx Screw M6 X 20 |
| 870 | 708301698 | Cargo Rear Support |
| 880 | 250100208 | Panel Nut M6 X 1.0 |
| 890 | 250000881 | Torx Truss M8 X 16 |
| 891 | 293150230 | Tuflok Plastic Rivet |
