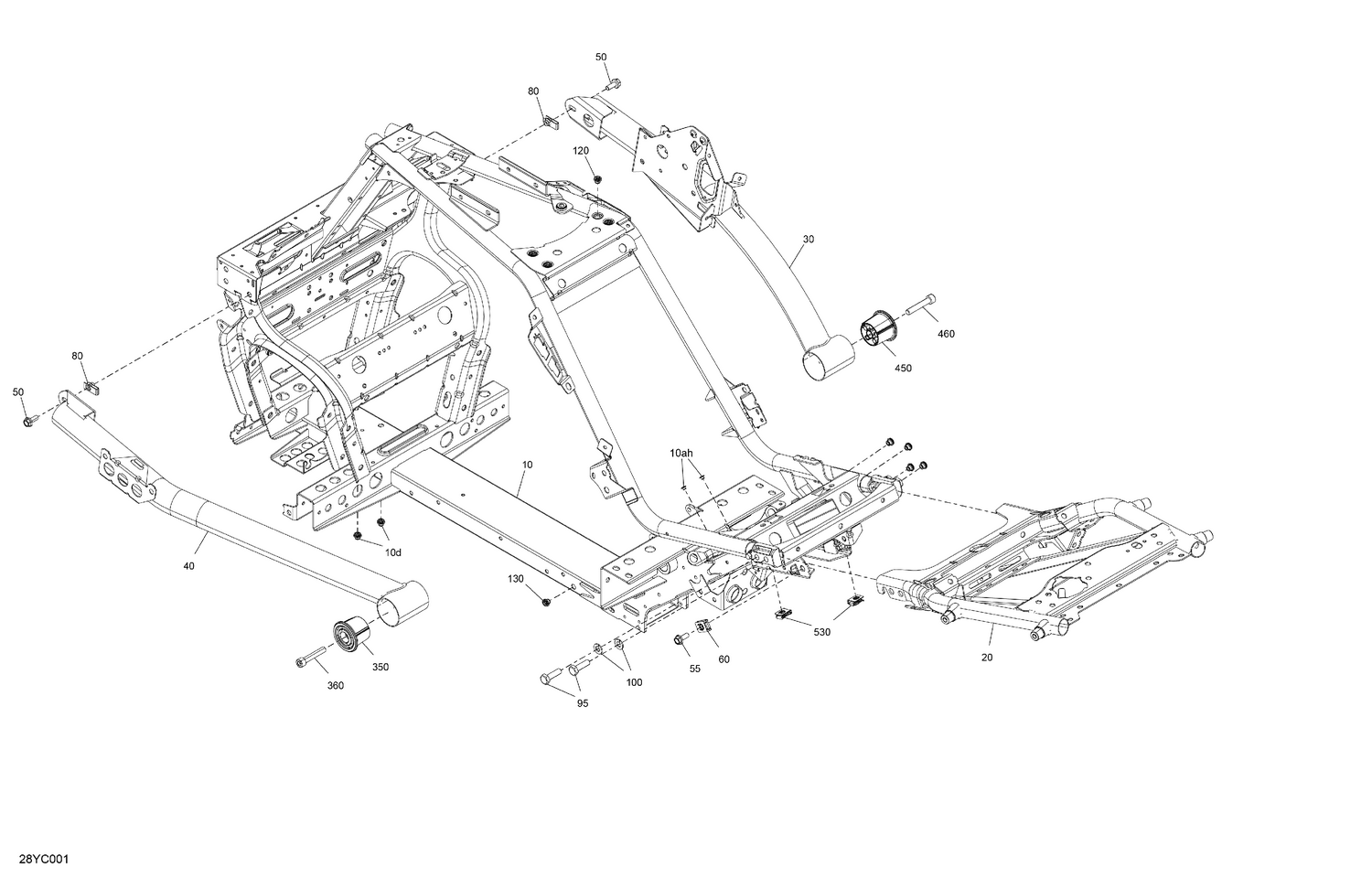

06- Frame - System
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 10ah | 390402200 | Pop Rivet 3/16" |
| 10d | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 20 | 219800410 | Frame Extension Kit |
| 30 | 705204611 | Deep Black, RH Upper Lateral Support |
| 40 | 705204616 | Deep Black, LH Upper Lateral Support |
| 50 | 207582054 | Hex Screw Washer Head M8 X 20 |
| 55 | 207582054 | Hex Screw Washer Head M8 X 20 |
| 60 | 250100069 | Panel Nut M8 X 1.25 |
| 80 | 250100118 | Panel Nut M8 X 1.25 |
| 95 | 207303544 | Hex. Screw M10 x 35 (Scotch Grip) |
| 100 | 234101411 | Lock Washer Helical M10 |
| 120 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 130 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 350 | 705010202 | Pivot Cap |
| 360 | 205505560 | Socket Head Screw |
| 450 | 705010202 | Pivot Cap |
| 460 | 205505560 | Socket Head Screw |
