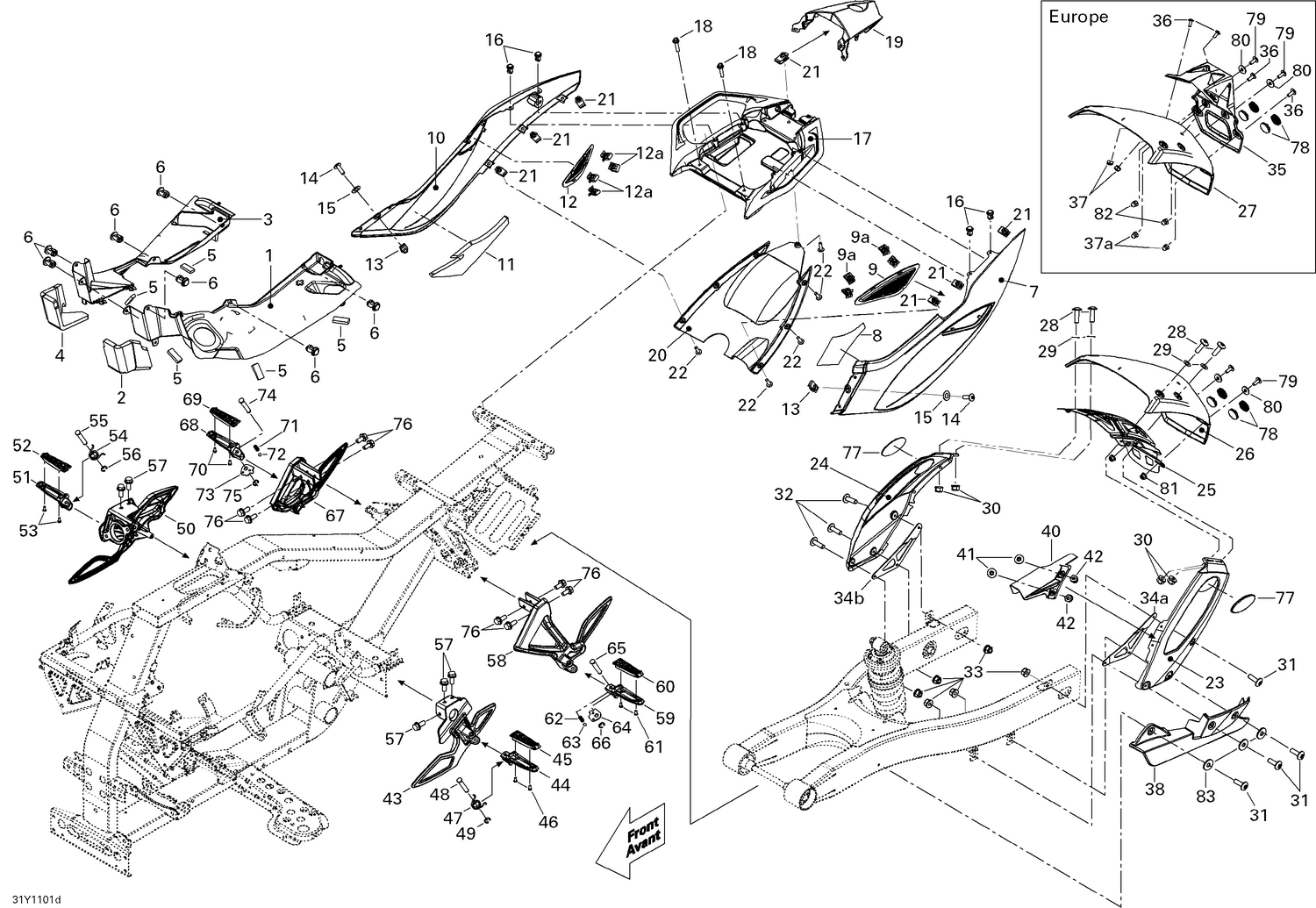

| Ref | Part Number | Description |
|---|
| 1 |
705006275 |
TANK COVER LH - Call your local BRP dealership This part replaces 705004898. |
| 2 |
705002920 |
LH FOAM - Call your local BRP dealership |
| 3 |
705002546 |
RH GAS TANK COVER - Call your local BRP dealership |
| 4 |
705002921 |
RH DEFLECTOR FOAM - Call your local BRP dealership |
| 5 |
219704364 |
Neoprene Seal (1PAC=3M) |
| 6 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 8 |
705002508 |
LH Heat Reflective Sheet |
| 9 |
705001542 |
LH REAR GRILL - Call your local BRP dealership |
| 11 |
705002509 |
BLACK RH REAR PANEL FOAM - Call your local BRP dealership |
| 12 |
705001544 |
RH REAR GRILL - Call your local BRP dealership |
| 12a |
517302785 |
Edge Clip |
| 13 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250100113. |
| 14 |
250000350 |
Torx Truss Screw M6 X 20 |
| 15 |
705003207 |
Plastic Washer |
| 16 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 17 |
705009315 |
Passenger Handle This part replaces 705001550. |
| 18 |
207584034 |
Hex. Flange Screw, Scotch Grip |
| 20 |
705001551 |
UNDER TAIL COVER - Call your local BRP dealership |
| 21 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250100113. |
| 22 |
250000350 |
Torx Truss Screw M6 X 20 |
| 23 |
705006084 |
LH Rear Fender Support This part replaces 705002503. |
| 24 |
705006085 |
RH REAR FENDER SUPPORT - Call your local BRP dealership This part replaces 705002501. |
| 25 |
705003031 |
CENTRAL REAR FENDER SUPPORT - Call your local BRP dealership |
| 28 |
250000303 |
Torx Truss Screw M6 X 20 |
| 29 |
705003207 |
Plastic Washer |
| 30 |
233261494 |
Hex. Flange Elastic Nut M6 |
| 31 |
250000350 |
Torx Truss Screw M6 X 20 |
| 32 |
250000350 |
Torx Truss Screw M6 X 20 |
| 33 |
233261494 |
Hex. Flange Elastic Nut M6 |
| 34a |
705002980 |
LH REINFORCEMENT PLATE - Call your local BRP dealership |
| 34b |
705002981 |
RH Reinforcement Plate |
| 38 |
705002092 |
Lower Belt Guard |
| 40 |
705007213 |
UPPER BELT GUARD - Call your local BRP dealership This part replaces 705001555. |
| 41 |
250000349 |
Torx Truss Screw M6 X 10 |
| 42 |
232361493 |
Domed Nut M6 |
| 47 |
705001701 |
Spring |
| 54 |
705003362 |
Spring |
| 76 |
207581644 |
Hex. Flange Screw M8 X 16, Scotch Grip |
| 78 |
293740028 |
Dual Lock Velcro Washer 3/4" |
| 79 |
250000303 |
Torx Truss Screw M6 X 20 |
| 80 |
234062600 |
Flat Washer M6, Stainless |
| 83 |
234062670 |
Stainless Steel Flat Washer |
