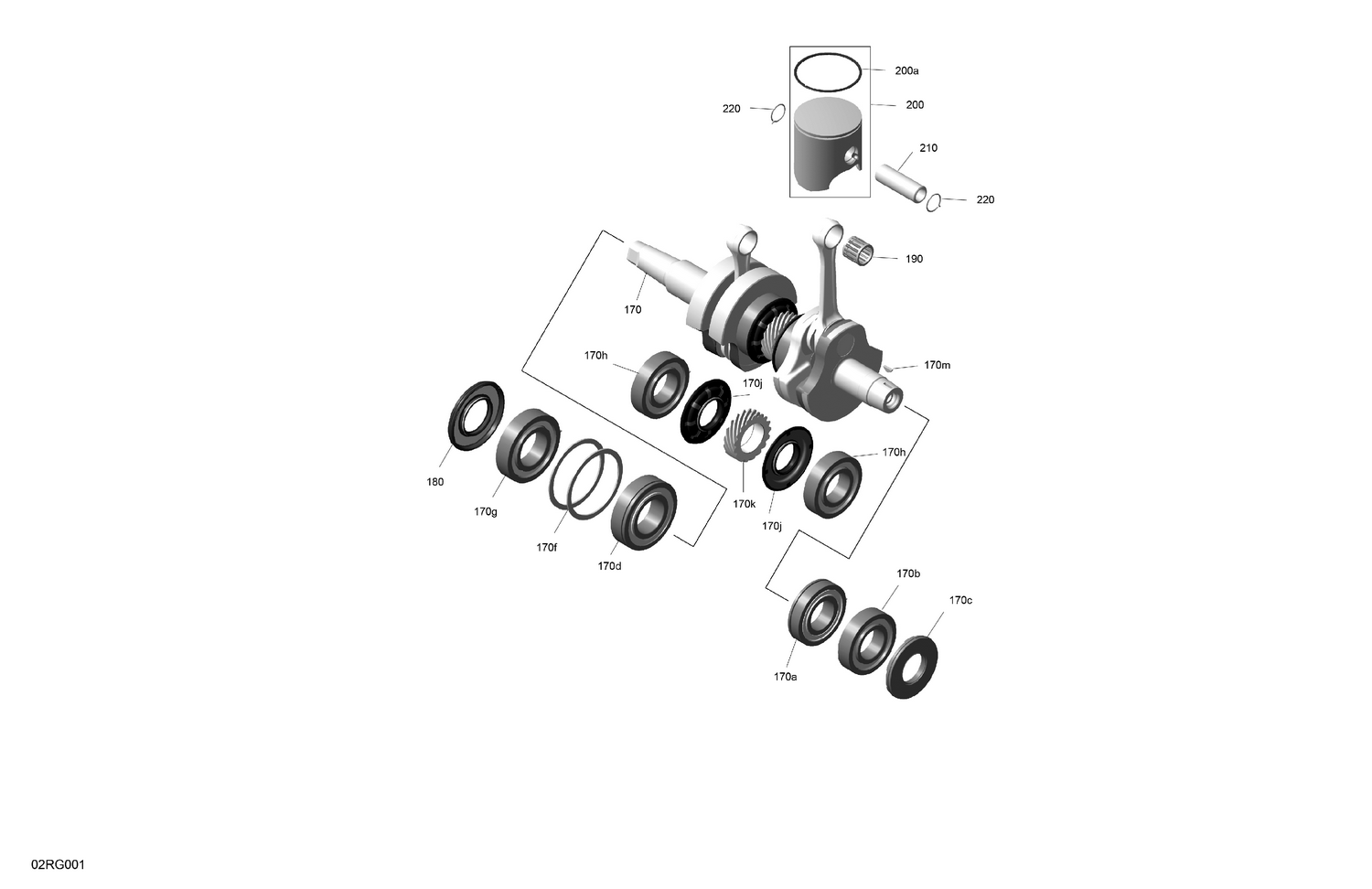

01- ROTAX - Crankshaft and Pistons
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 170a | 420832673 | Ball Bearing Sealed, 6207 |
| 170b | 420832575 | Ball Bearing 6207 |
| 170c | 420831955 | Oil Seal |
| 170d | 420832672 | Ball Bearing Sealed, 6208 |
| 170f | 420926190 | Retaining disk |
| 170g | 420832600 | Ball Bearing 6208 |
| 170h | 420832575 | Ball Bearing 6207 |
| 170j | 420931455 | Oil seal |
| 170k | 420834566 | Central Gear |
| 170m | 420246015 | Woodruff Key |
| 180 | 420931284 | Oil Seal |
| 190 | 420832445 | Piston pin bearing |
| 200a | 420815470 | Semi Trapez Ring |
| 210 | 420916412 | Piston Pin |
