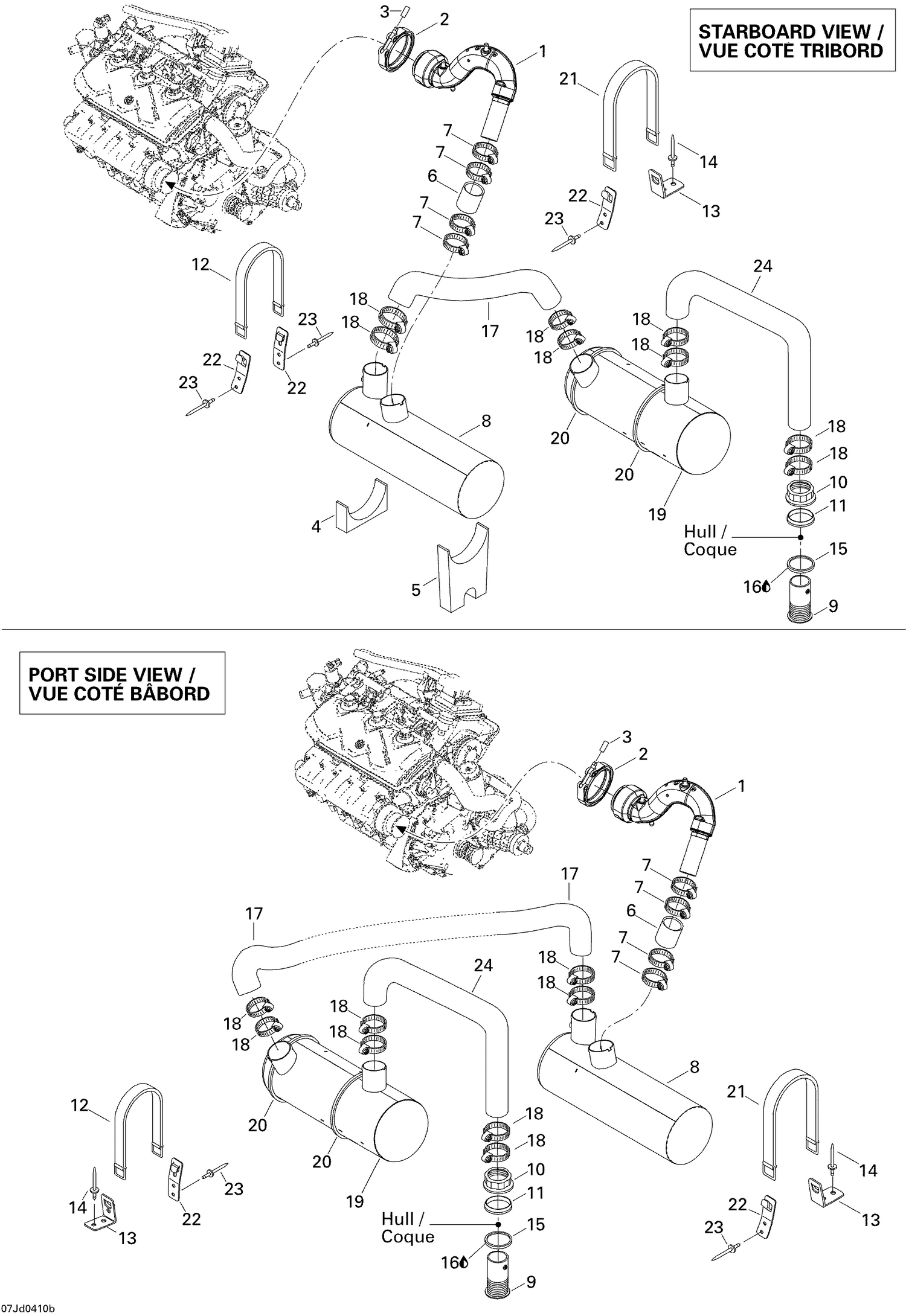

| Ref | Part Number | Description |
|---|
| 1 |
274001030 |
EXHAUST PIPE - Call your local BRP dealership |
| 2 |
274001472 |
Exhaust Clamp This part replaces 274000959. |
| 3 |
219704410 |
Polyurethane Hose 10000Mm Long |
| 4 |
204340421 |
Muffler Support |
| 5 |
204340420 |
MUFFLER SUPPORT - Call your local BRP dealership |
| 6 |
274001302 |
Exhaust Hose This part replaces 274000961. |
| 7 |
293650006 |
TRIDON GEAR CLAMP - Call your local BRP dealership |
| 8 |
204340422 |
Coated Muffler |
| 9 |
204340393 |
Exhaust Outlet |
| 10 |
274000224 |
Nut 72 mm |
| 11 |
274000225 |
STABILIZING WASHER - Call your local BRP dealership |
| 12 |
293850097 |
Retainer Strap This part replaces 293850021. |
| 13 |
204060017 |
Strap Clip 90° |
| 14 |
293150037 |
Avdel Rivet 3/16" |
| 15 |
293250041 |
GASKET - Call your local BRP dealership |
| 16 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 17 |
204340413 |
Exhaust Hose, Starboard |
| 18 |
293650179 |
Tridon Clamp This part replaces 293650107. |
| 19 |
274001059 |
Secondary Muffler |
| 20 |
293830034 |
Rubber Strip |
| 21 |
293850097 |
Retainer Strap This part replaces 293850021. |
| 22 |
293850024 |
STRAP CLIP - Call your local BRP dealership |
| 23 |
293150037 |
Avdel Rivet 3/16" |
| 24 |
204340404 |
Exhaust Hose, Starboard |
| 204340414 |
Exhaust |
Hose, Port Side 204340414 |
