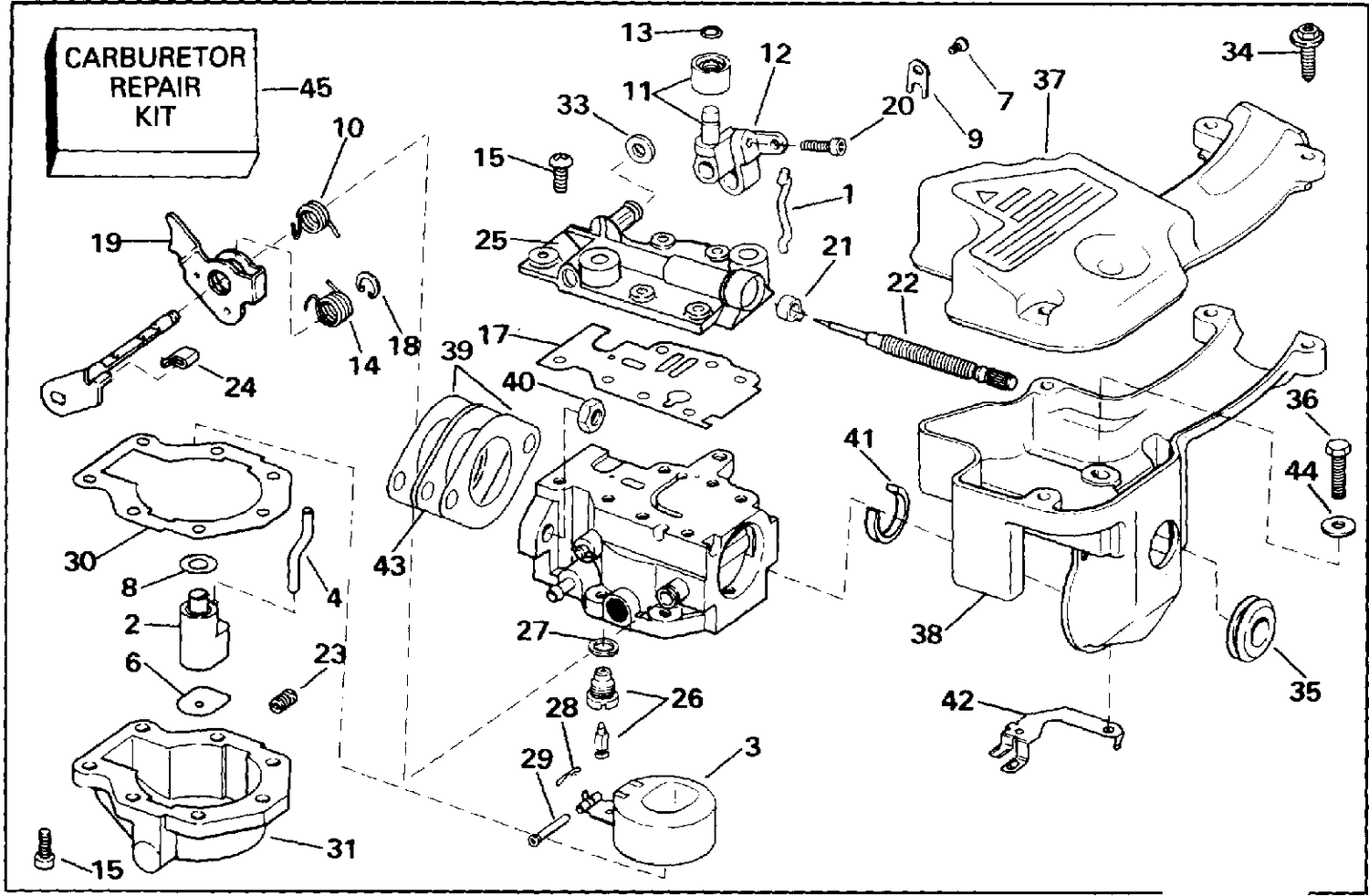

| Ref | Part Number | Description |
|---|
| 2 |
0396605 |
NOZZLE WELL |
| 4 |
0336567 |
FLEX TUBE |
| 6 |
0333348 |
GASKET, Cover to housing |
| 8 |
0338883 |
GASKET, Upper This part replaces 0333347. |
| 11 |
0396236 |
ROLLER, Cam follower |
| 13 |
0308776 |
O-RING |
| 14 |
0321734 |
SPRING Choke override |
| 17 |
0334043 |
GASKET, Cover |
| 21 |
0315232 |
RETAINER , Needle valve stbd |
| 22 |
0432760 |
NEEDLE VALVE, Slow speed |
| 22 |
0435356 |
NEEDLE VALVE, Slow speed |
| 23 |
0334014 |
ORIFICE PLUG, No. 54 |
| 24 |
0318536 |
SLEEVE |
| 25 |
0336049 |
COVER, Carburetor body |
| 25 |
0337833 |
COVER, Carburetor body |
| 28 |
0336842 |
CLIP, SPRING |
| 31 |
0398068 |
FLOAT CHAMBER This part replaces 0336393. |
| 35 |
0320521 |
GROMMET |
| 36 |
0331758 |
SCREW, Air horn to carburetor |
| 37 |
0330581 |
COVER, Air silencer |
| 38 |
0322120 |
BASE, Air silencer |
| 39 |
0318932 |
JOINT |
| 40 |
0328742 |
NUT |
| 41 |
0319287 |
SEAL, Air silencer |
| 42 |
0336395 |
DETENT, Choke knob |
| 44 |
0306413 |
WASHER |
| 0433989 |
0433989 |
CARBURETOR ASSEMBLY |
| 0433990 |
0433990 |
CARBURETOR ASSEMBLY |
| 0433991 |
0433991 |
CARBURETOR ASSEMBLY |
| 0433992 |
0433992 |
CARBURETOR ASSEMBLY |
| 0433993 |
0433993 |
CARBURETOR ASSEMBLY |
