Home / BRP / EVINRUDE / 1988 / 48 / 08- Suspension, Rear _26Y1508

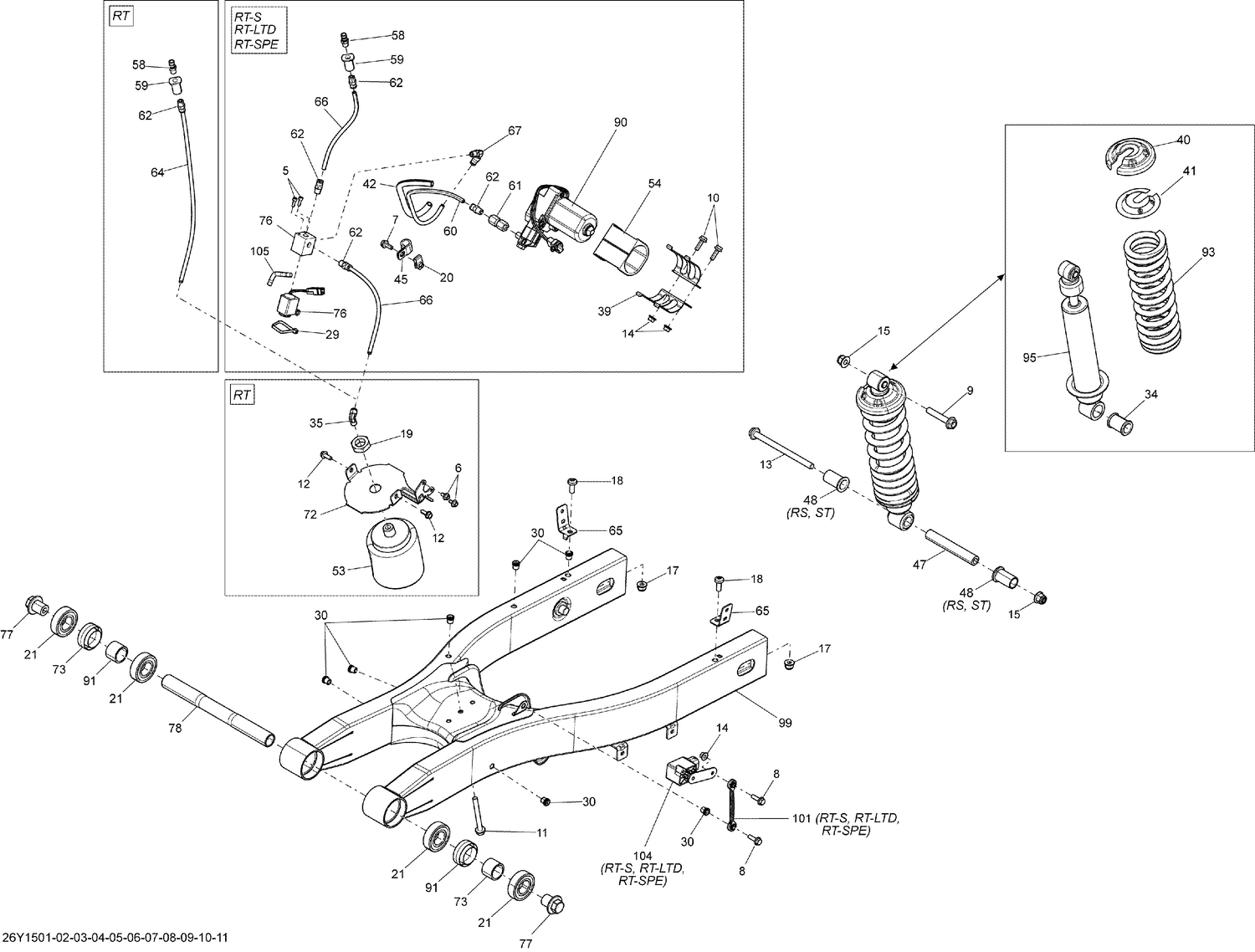

08- Suspension, Rear _26Y1508

08- Suspension, Rear _26Y1508

Parts (49)

RefPart NumberDescription
5 XXX Not Available As Spare Parts
6 XXX Not Available As Spare Parts
7 XXX Not Available As Spare Parts
8 XXX Not Available As Spare Parts
9 207605554 Hex. Flange Screw M10 X 55
10 XXX Not Available As Spare Parts
11 XXX Not Available As Spare Parts
12 XXX Not Available As Spare Parts
13 230604034 Hex. Flange Screw M10 X 140
14 XXX Not Available As Spare Parts
15 233201464 Hex. Flange Elastic M10 x 1.5
17 233281414 Hex. Flange Elastic Nut M8
18 236282084 Hex. Screw M8 X 20
19 XXX Not Available As Spare Parts
20 XXX Not Available As Spare Parts
21 293350115 Ball Bearing This part replaces 293350055.
29 414115200 Tie-Rap 180 mm
30 293450275 Insert
34 503191609 Urethane Cushion
35 XXX Not Available As Spare Parts
39 XXX Not Available As Spare Parts
40 503191604 SPRING STOPPER - Call your local BRP dealership
41 503191605 CAP - Call your local BRP dealership
42 XXX Not Available As Spare Parts
45 XXX Not Available As Spare Parts
47 706000409 Shock Absorber Shaft
48 706000410 Spacer
53 XXX Not Available As Spare Parts
54 XXX Not Available As Spare Parts
58 XXX Not Available As Spare Parts
59 XXX Not Available As Spare Parts
60 XXX Not Available As Spare Parts
61 XXX Not Available As Spare Parts
62 706000869 Connector
64 XXX Not Available As Spare Parts
65 706000895 Bracket
66 XXX Not Available As Spare Parts
67 706000928 Elbow 90°
72 XXX Not Available As Spare Parts
73 706001152 Spacer
76 XXX Not Available As Spare Parts
77 706001579 Bolt M20
78 706001182 Swing Arm Axle
90 XXX Not Available As Spare Parts
91 706001366 Sleeve
93 706001890 SPRING - Call your local BRP dealership This part replaces 706001111.
95 706001110 Shock Absorber
99 706001574 Swing Arm
101 XXX Not Available As Spare Parts
