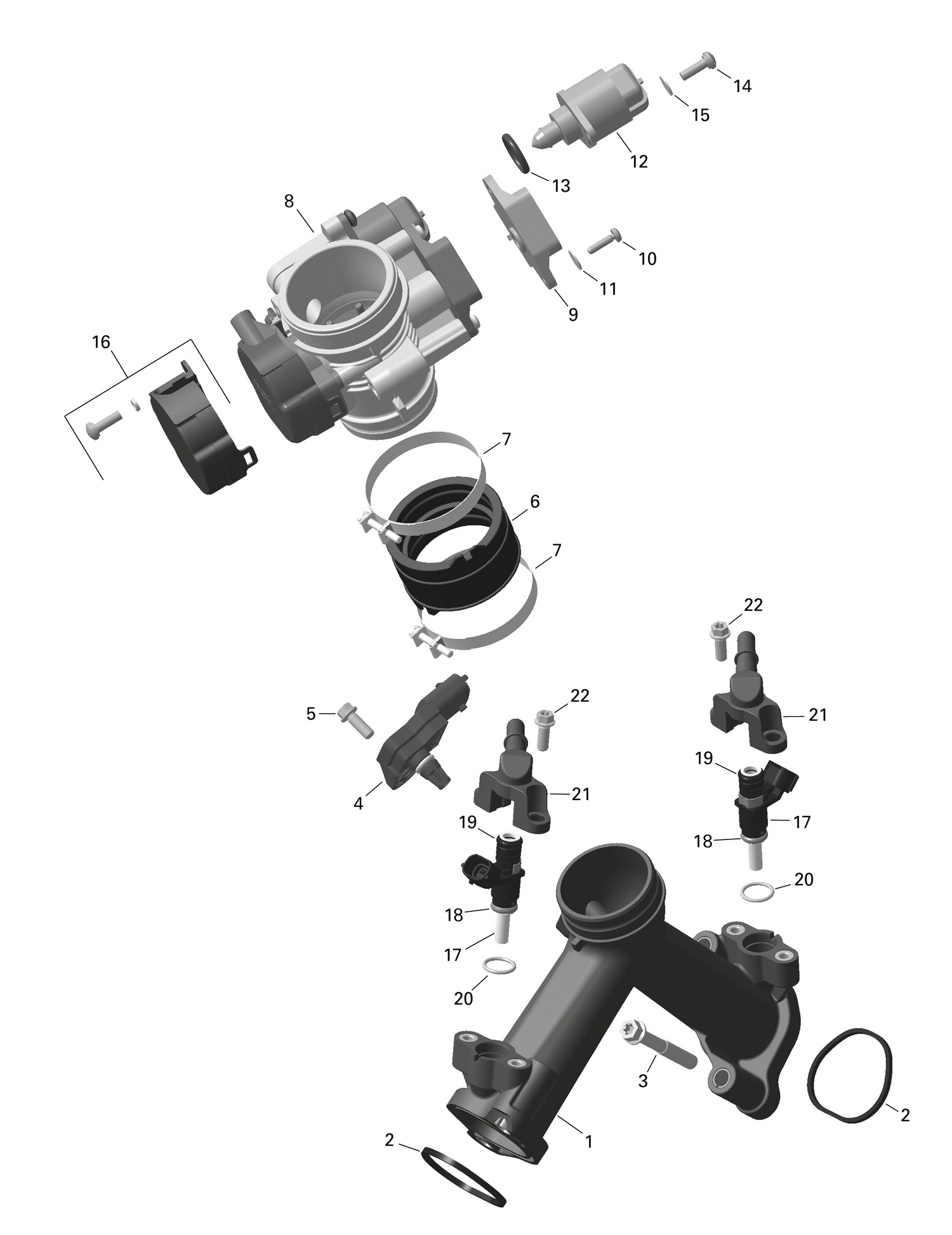

01- ROTAX - Air Intake Manifold And Throttle Body
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420667581 | Air Intake Manifold |
| 3 | 420641213 | Torx Flange Screw M8 X 55 This part replaces 420440397. |
| 4 | 420874658 | Pressure And Temperature Sensor |
| 5 | 420440149 | Hex. Flange Screw M6 X 12 |
| 6 | 420267480 | Intake Adaptor |
| 7 | 420251480 | Clamp |
| 9 | 420866120 | Position Sensor This part replaces 415129603. |
| 10 | XXX | Not Available As Spare Parts |
| 11 | XXX | Not Available As Spare Parts |
| 12 | 420665941 | Idle Air Control Valve |
| 14 | 420440911 | Binding Head Screw M5 X 16 |
| 15 | 420845710 | Snap Ring |
| 16 | 420281540 | Cover Kit |
| 18 | 420431890 | O-Ring |
| 19 | 420631220 | O-Ring |
| 21 | 420874901 | Fuel Rail |
