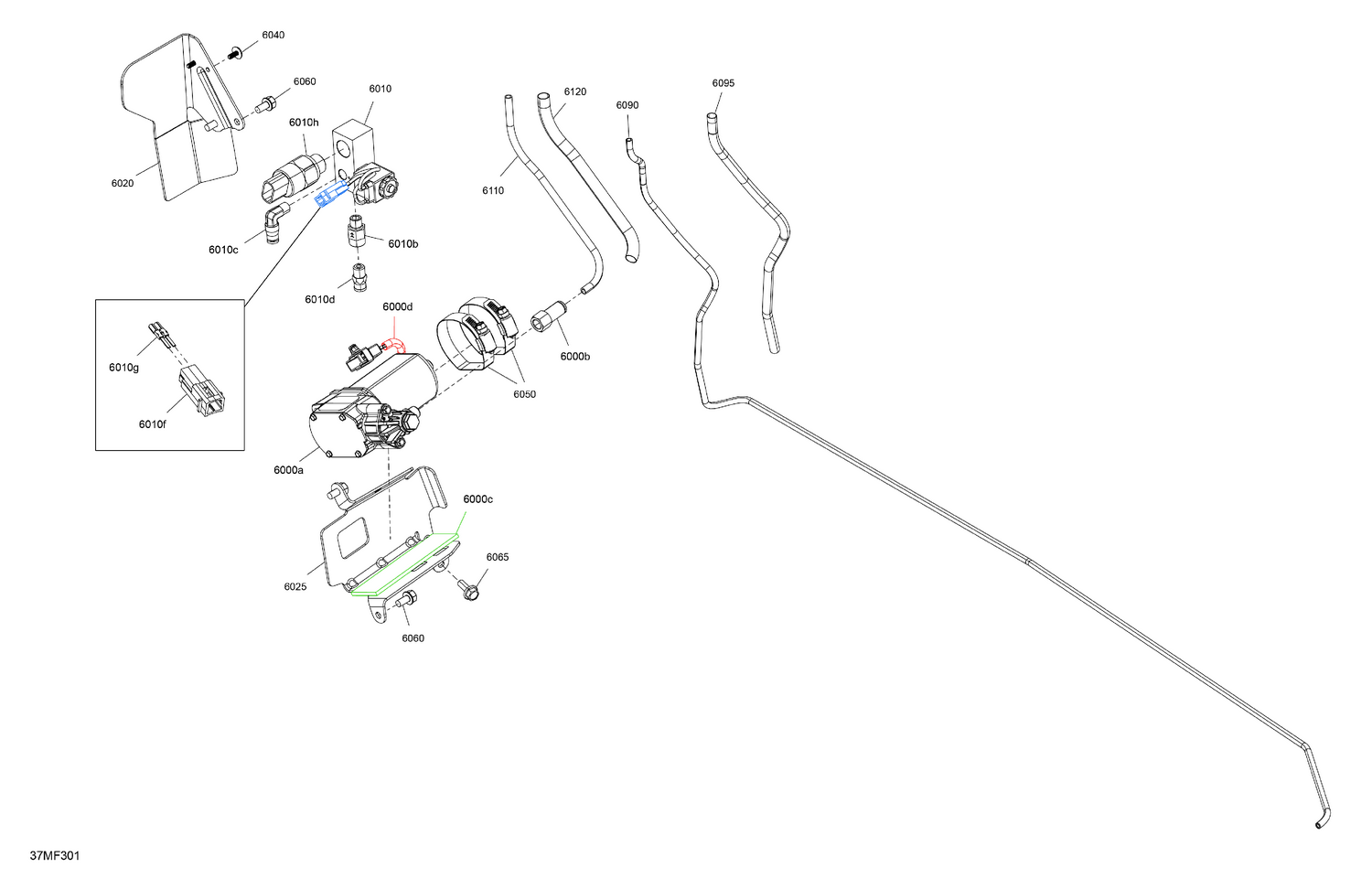

05- Suspension - Air Compressor
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 6000a | 503194941 | Compressor |
| 6000b | 706201253 | Female Connector |
| 6000c | 503191940 | Rubber Damper |
| 6000d | 219704425 | Tubing 6 Mm 3000Mm Long |
| 6010b | 706000860 | Check Valve |
| 6010c | 706000872 | Elbow 90° |
| 6010d | 706000869 | Connector |
| 6010f | 515175654 | Male Terminal Housing, 2 Circuits |
| 6010g | 515175232 | Male Terminal |
| 6010h | 515179088 | Air Suspension Sensor |
| 6020 | 503197852 | Manifold Support |
| 6025 | 503194921 | Support |
| 6040 | 250000565 | Hexalob Screw M4 X 10 |
| 6050 | 293650090 | Norma Gear Clamp |
| 6060 | 210261250 | Hex. Flange Screw M6 X 12 |
| 6065 | 207661654 | Hex. Flange Screw M6 X 16 |
| 6090 | 219704415 | Hose 4.32Mm 3000Mm Long |
| 6095 | 503195447 | Protector Tube |
| 6110 | 706001211 | Hose 1/4 |
