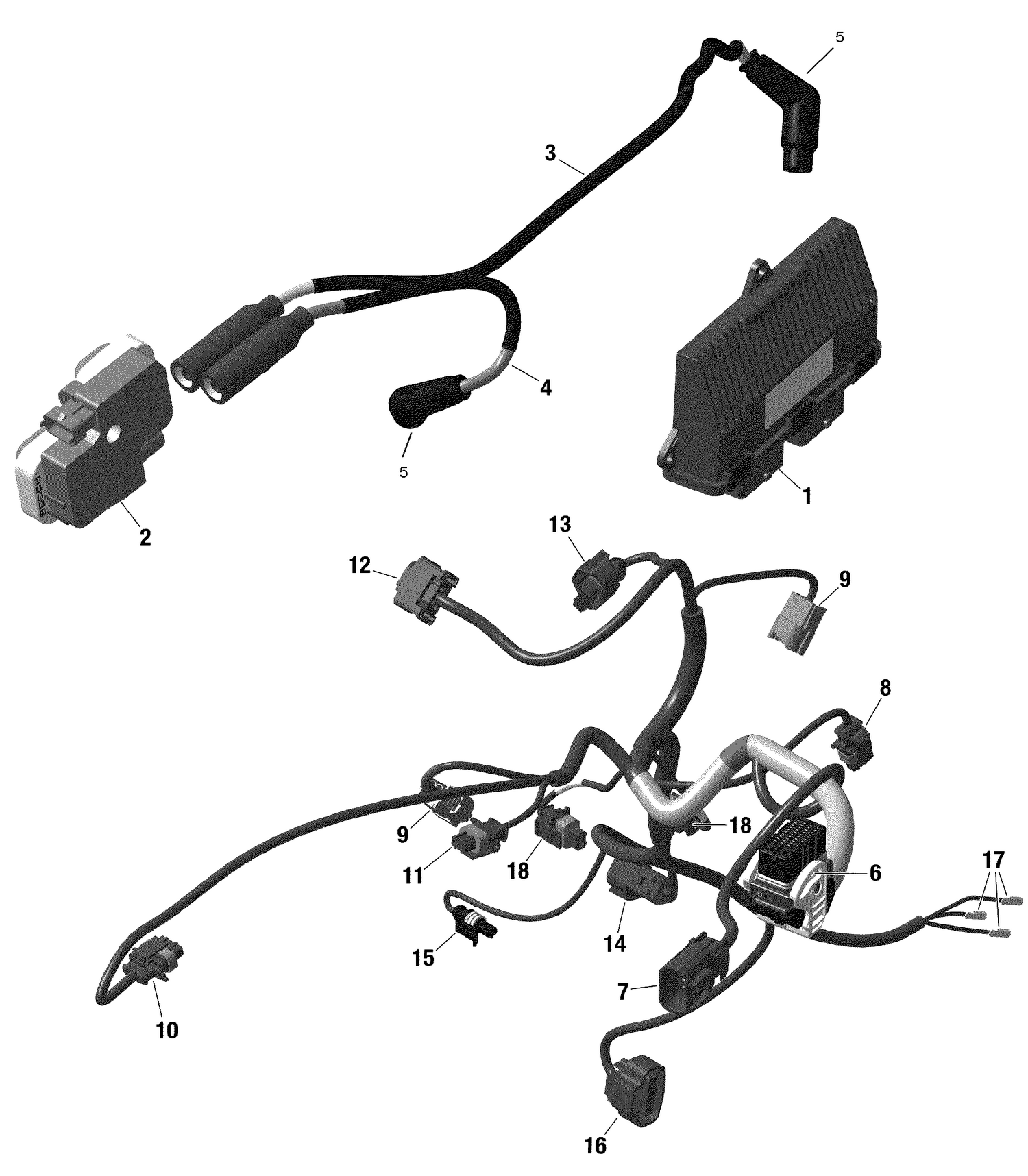

10- Engine Harness And Electronic Module - 322
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420666064 | Electronic Module Programmable |
| 2a | 710000568 | Housing |
| 3 | 420464166 | Ignition Cable 570MM PTO |
| 4 | 420464155 | Ignition Cable 315MM MAG |
| 5 | 420265020 | Spark Plug Connector |
| 6 | 420866710 | Tie Rap |
| 8 | XXX | Not Available As Spare Parts |
| 9 | 710001227 | Housing |
| 10 | 710001927 | Housing |
| 11 | 278001005 | Male Housing, 2 Circuits |
| 12 | 515176129 | Female Housing |
| 13 | 278000997 | Male Housing, 3 Circuits |
| 14 | 278001005 | Male Housing, 2 Circuits |
| 15 | 278001829 | Housing Connector, 3 Circuits |
| 16 | 515176410 | Male Connector |
| 17 | XXX | Not Available As Spare Parts |
| 18 | 278002378 | Male Housing |
| 19 | 278001012 | Male Housing, 1 Circuit |
| 20 | 710000329 | Male Housing, 4 Circuits |
| 21 | 278001007 | Insulated Sheath |
