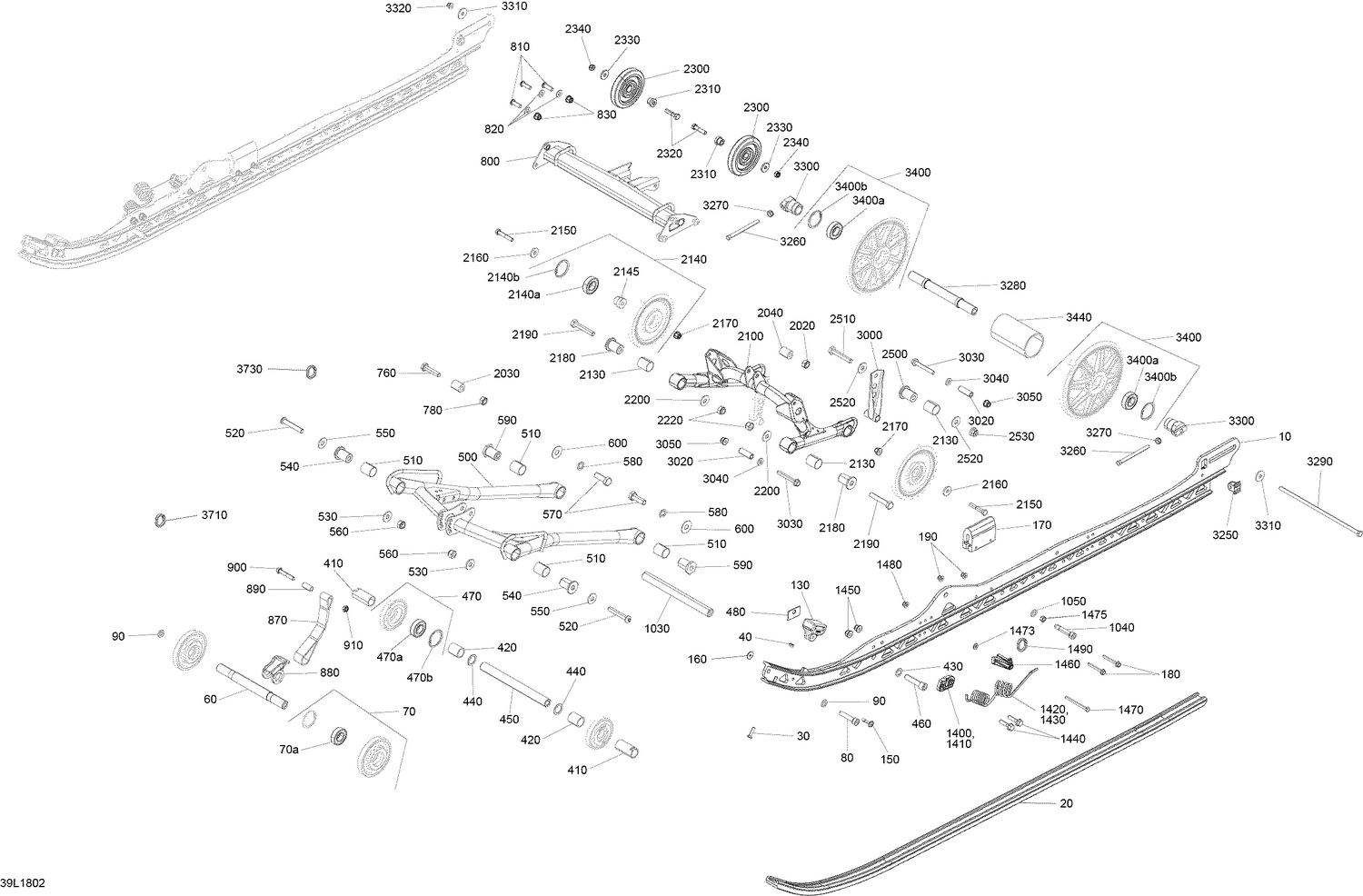

08- Rear Suspension Shocks Boondocker - 850 E-TEC - Package BD4100 DS
Parts (101)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 503194801 | Runner Bd4100 Ds True Titanium |
| 20 | 503194240 | Slide Shoe Bd4100 |
| 30 | 208562531 | Phillips Screw M6 X 25 |
| 40 | 232561414 | Elastic Stop Nut M6 |
| 60 | 503192842 | Front Wheel Shaft |
| 70a | 503190396 | Ball Bearing |
| 80 | 205505054 | Socket Screw |
| 90 | 503192496 | Washer |
| 130 | 503193504 | Rubber Stopper |
| 150 | 293150224 | Rivet Pop 3/16 |
| 160 | 503191273 | Washer |
| 170 | 570023100 | RUBBER STOPPER - Call your local BRP dealership |
| 180 | 207664554 | Hex, Flange Screw |
| 190 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 410 | 503194575 | Spacer |
| 420 | 503194576 | Spacer |
| 430 | 503192491 | Washer |
| 440 | 31013 | Shim Ring |
| 450 | 605350690 | Iskunvaimentajan ala-akseli |
| 460 | 205525554 | Socket Screw |
| 470a | 503190396 | Ball Bearing |
| 470b | 415129371 | Retaining Ring |
| 480 | 605449294 | Support Plate |
| 500 | 503194695 | Front Arm |
| 510 | 503191554 | Bushing |
| 520 | 503194947 | Screw-socket Bn.hd. M10 X 60 |
| 530 | 503191926 | Washer |
| 540 | 503190698 | Axle |
| 550 | 503191926 | Washer |
| 560 | 233601466 | Elastic Locking Nut M10 |
| 570 | 250000537 | Hex. Cap Screw M12 X 35 |
| 580 | 503192491 | Washer |
| 590 | 503191966 | Lower Axle |
| 600 | 503190656 | Washer |
| 760 | 207004544 | Hex. Screw M10 X 45 |
| 780 | 232500416 | Elastic Stop Nut M10 |
| 800 | 503194697 | Middle Beam |
| 810 | 250000757 | Screw-Torx Button Head M8 X 25 S.Gr |
| 820 | 503192494 | Washer |
| 830 | 233281414 | Hex. Flange Elastic Nut M8 |
| 870 | 503194577 | Limiter Strap |
| 880 | 503194867 | Holder, Limiter Strap |
| 890 | 605455335 | Sleeve |
| 900 | 207084544 | Hex. Screw M8 X 45 |
| 910 | 232581414 | Hex. Elastic Stop Nut M8 |
| 1030 | 5343471 | Eturemmin akseli |
| 1040 | 205505054 | Socket Screw |
| 1050 | 503192496 | Washer |
| 1400 | 503194294 | LH Support |
| 1410 | 503194295 | RH Support |
| 1420 | 503194900 | LH Spring |
| 1430 | 503194901 | RH Spring |
| 1440 | 207683054 | Hex. Flange Screw M8 X 30 |
| 1450 | 233281466 | Elastic Flang Nut M8 |
| 1460 | 503195087 | Hook Assy |
| 1470 | 207167054 | Hex. Cap Screw M6 X 70 |
| 1473 | 250200039 | Flat Washer |
| 1475 | 232061414 | Hex. Nut M6 |
| 1480 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 1490 | 414115200 | Tie-Rap 180 mm |
| 2020 | 232500416 | Elastic Stop Nut M10 |
| 2030 | 5446652 | Bushing |
| 2040 | 5446652 | Bushing |
| 2100 | 503194848 | Rear Arm |
| 2130 | 503191554 | Bushing |
| 2140a | 503190396 | Ball Bearing |
| 2140b | 415129371 | Retaining Ring |
| 2145 | 605454461 | Sleeve |
| 2150 | 207084544 | Hex. Screw M8 X 45 |
| 2160 | 20077 | M8 Washer |
| 2170 | 233281414 | Hex. Flange Elastic Nut M8 |
| 2180 | 503190698 | Axle |
| 2190 | 250000696 | Hexagonal Screw |
| 2200 | 503191926 | Washer |
| 2220 | 233601466 | Elastic Locking Nut M10 |
| 2300 | 572043500 | Idler Wheel |
| 2310 | 503193330 | Sleeve |
| 2320 | 207083544 | Hex. Screw M8 X 35 |
| 2330 | 20077 | M8 Washer |
| 2340 | 232581414 | Hex. Elastic Stop Nut M8 |
| 2500 | 503190698 | Axle |
| 2510 | 250000696 | Hexagonal Screw |
| 2520 | 503191926 | Washer |
| 2530 | 233201466 | Flanged Elastic Nut M10 |
| 3000 | 503194869 | Rear Swing |
| 3020 | 503194890 | Pivot Arm Axle |
| 3030 | 207186054 | Screw Hexagonal Cap M8 X 60 |
| 3040 | 503192494 | Washer |
| 3050 | 233281466 | Elastic Flang Nut M8 |
| 3250 | 503194266 | Tensioner |
| 3260 | 503194267 | Hex. Cap Screw M8 X 95 |
| 3270 | 232581414 | Hex. Elastic Stop Nut M8 |
| 3280 | 503194508 | Rear Wheell Axle |
| 3290 | 503194069 | Bolt M8 |
| 3300 | 503194747 | Tip |
| 3310 | 211200041 | Aluslevy M8 |
| 3320 | 233281466 | Elastic Flang Nut M8 |
| 3400a | 503190396 | Ball Bearing |
| 3400b | 415129371 | Retaining Ring |
| 3440 | 503194286 | Bushing |
| 3710 | 414115200 | Tie-Rap 180 mm |
