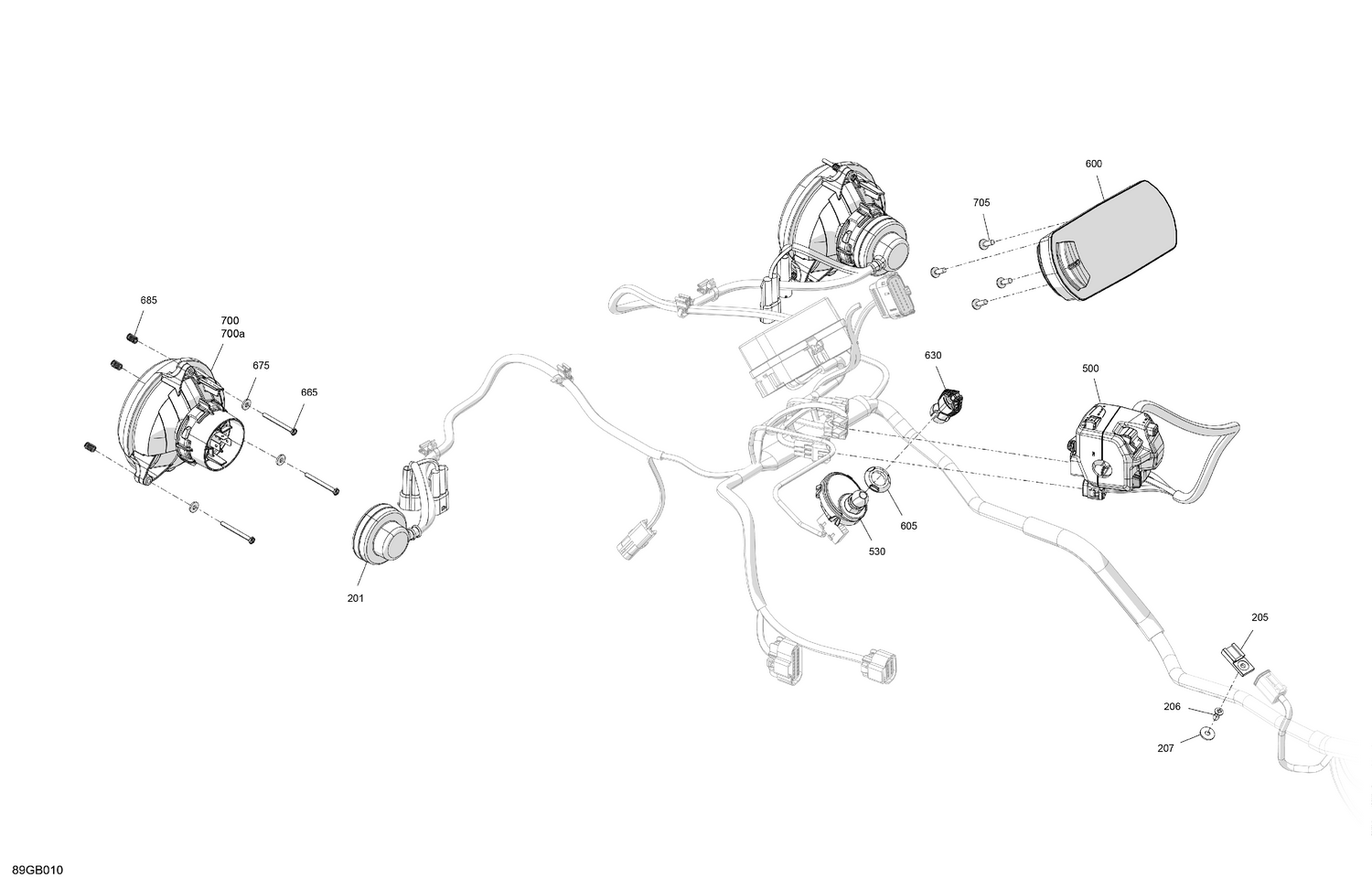

08- Electric - Front Section
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 201 | 710005780 | Light Cable |
| 205 | 270000141 | Clip |
| 206 | 390402300 | Pop Rivet 3/16" |
| 207 | 391301600 | Washer |
| 500 | 710006143 | LH Front Switch Housing |
| 530 | 515178840 | Terminal Dess One-Wire |
| 600 | 710008108 | Multifunction Gauge Compact Mono |
| 605 | 278004274 | Specialized Nut |
| 630 | 710004964 | Grey Key RFID |
| 665 | 250000718 | Hex. Screw K40 X 45 |
| 675 | 517225900 | Flat Washer |
| 685 | 517168600 | Spring |
| 700a | 710000871 | Bulb, 12V 35/35W |
