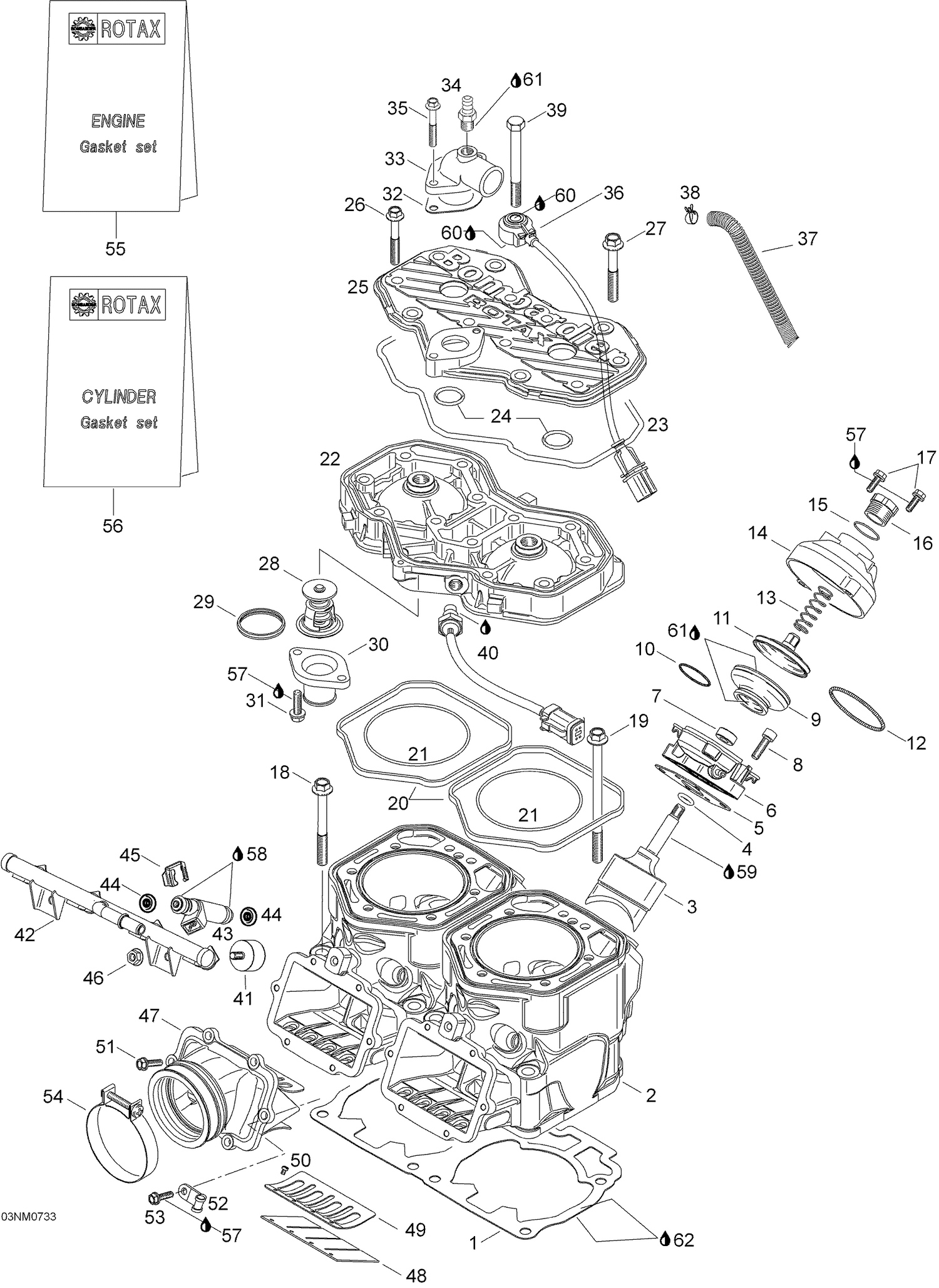

| Ref | Part Number | Description |
|---|
| 1 |
420431160 |
Double Gasket 0.5 mm This part replaces 420931893. |
| 1 |
420431161 |
Double Gasket 0.6 mm This part replaces 420931892. |
| 1 |
420431162 |
Double Gasket 0.7 mm This part replaces 420931894. |
| 1 |
420431163 |
Double Gasket 0.8 mm This part replaces 420931895. |
| 2 |
420613944 |
CYLINDER H.O. SDI - Call your local BRP dealership |
| 3 |
420854650 |
Avloppsventil |
| 4 |
420430110 |
O-Ring |
| 5 |
420931542 |
Packning |
| 6 |
420854454 |
VALVE HOUSING - Call your local BRP dealership |
| 7 |
420950732 |
Oil Seal This part replaces 420950730. |
| 8 |
205062544 |
Allen Screw M6 x 25 This part replaces 420840861. |
| 9 |
420260729 |
Bellows |
| 10 |
420838255 |
Kiristysjousi |
| 11 |
420854449 |
Exhaust valve piston |
| 12 |
420939281 |
Hose Spring This part replaces 420939280. |
| 13 |
420239942 |
SPRING - Call your local BRP dealership |
| 14 |
420911559 |
Valve Cover This part replaces 420911558. |
| 15 |
420430220 |
O-rengas |
| 16 |
420241221 |
Adjuster screw This part replaces 420241220. |
| 17 |
420241271 |
Hex. Taptite Screw M5 X 25 This part replaces 420241270. |
| 18 |
420640524 |
Hex. Collar Screw M10 x 80 |
| 19 |
420640534 |
Hex. Collar Screw M10 x 120 |
| 20 |
420931590 |
Tiivisterengas |
| 21 |
293300026 |
O-Ring This part replaces 420850540. |
| 22 |
420613704 |
CYLINDER HEAD - Call your local BRP dealership |
| 23 |
420950320 |
O-rengas |
| 24 |
420430782 |
O-rengas |
| 25 |
420923465 |
CYLINDER HEAD COVER - Call your local BRP dealership This part replaces 420923460. |
| 26 |
420841307 |
Hex. Collar Screw M8 X 65 This part replaces 420841306. |
| 27 |
420941627 |
Hex. Screw M8 X 56.5 This part replaces 420941621. |
| 28 |
420922519 |
Termostaatti |
| 29 |
420931272 |
Thermostat gasket |
| 30 |
420922025 |
BENT OUTLET SOCKET - Call your local BRP dealership |
| 31 |
420941251 |
SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250. |
| 32 |
420850339 |
Gasket This part replaces 420850338. |
| 33 |
420922062 |
BENT OUTLET SOCKET - Call your local BRP dealership |
| 34 |
420822340 |
Hose nipple |
| 35 |
420941451 |
HEX. COLLAR SCREW M6 X 40 - Call your local BRP dealership |
| 36 |
420664035 |
Nakutuksen tunnistin |
| 37 |
420460010 |
TUBE - Call your local BRP dealership |
| 38 |
420960890 |
CLIP - Call your local BRP dealership |
| 39 |
420941221 |
HEX. SCREW M8 X 80 - Call your local BRP dealership |
| 40 |
515177835 |
Capteur Temp. *Sensor-Temp. This part replaces 420664500. |
| 41 |
420960065 |
STOPPER - Call your local BRP dealership |
| 42 |
420874490 |
RAIL FUEL - Call your local BRP dealership |
| 43 |
420874485 |
Injektionmustycke |
| 44 |
420631220 |
O-Ring |
| 45 |
420851800 |
CLIP - Call your local BRP dealership |
| 46 |
420442172 |
NUT - Call your local BRP dealership |
| 48 |
420924680 |
Reed ventil komp. |
| 49 |
420924695 |
Venttiilin rajoitin |
| 50 |
420941215 |
Oval-head screw M3 x 5 |
| 51 |
420941928 |
Taptite Screw M5 X 16 This part replaces 420941925. |
| 52 |
420851115 |
Hållare |
| 53 |
420841550 |
Tapping Screw M5 X 22 |
| 54 |
420851065 |
Kiristin |
| 55 |
420889931 |
Engine Gasket Set This part replaces 420889922. |
| 56 |
420889936 |
Cylinder Gasket Set This part replaces 420889926. |
| 57 |
293800060 |
Liima Loctite 243, 10ml |
| 58 |
Not |
Available As Spare Part - Multipurpose grease |
| 59 |
779119 |
NEEDS DESCRIPTION This part replaces 413802900. |
| 60 |
293800081 |
Loctite 5910, 300 ml |
| 61 |
420297907 |
Sealing Compound Loctite 5366 310Ml This part replaces 420297906. |
