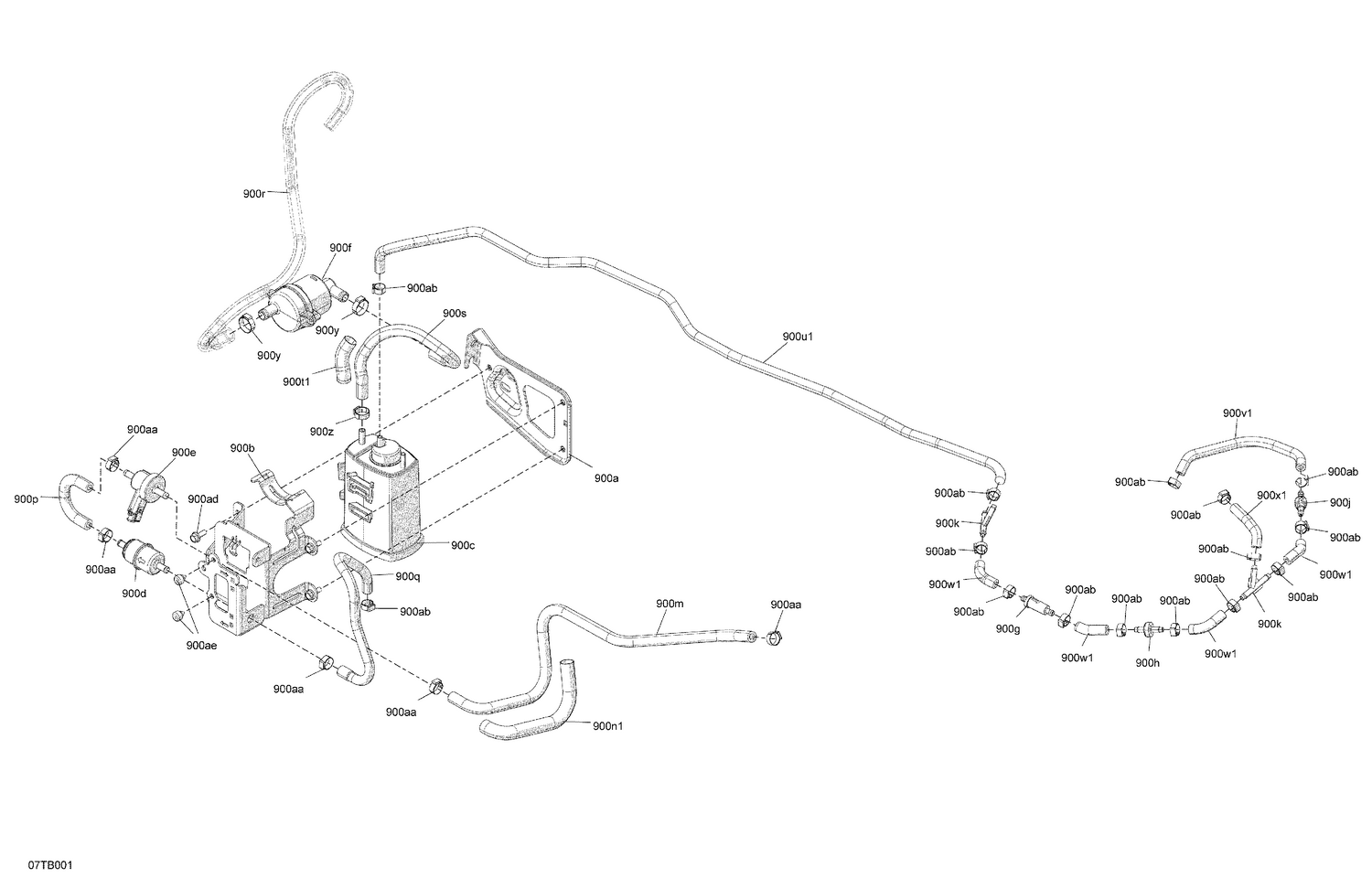

02- Engine - Charcoal Canister Assembly
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 900a | 709001222 | Charcoal Canister Support |
| 900aa | 293650047 | Crimp Clamp, 15.3-706R |
| 900ab | 293650042 | Oetiker Clamp |
| 900ad | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 900b | 709001221 | Charcoal Canister Support |
| 900c | 709000090 | Vapor Canister |
| 900d | 513034047 | Fuel Filter This part replaces 513033719. |
| 900e | 709000443 | Bleed Valve |
| 900f | 709001109 | Air Filter |
| 900g | 709001120 | Filter |
| 900h | 275500398 | Check Valve |
| 900j | 513033469 | Check Valve |
| 900k | 293710059 | Y-Fitting |
| 900m | 709001237 | Hose |
| 900n1 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 900p | 709001256 | Hose |
| 900q | 709001225 | Hose |
| 900r | 709001226 | Hose Fuel Vapour Canister |
| 900s | 709001227 | Hose |
| 900t1 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 900u1 | 219704611 | Hose 6.35Mm 5000Mm Long This part replaces 219704442. |
| 900v1 | 219704611 | Hose 6.35Mm 5000Mm Long This part replaces 219704442. |
| 900w1 | 219704611 | Hose 6.35Mm 5000Mm Long This part replaces 219704442. |
| 900x1 | 219704611 | Hose 6.35Mm 5000Mm Long This part replaces 219704442. |
| 900y | 293650186 | Oetiker Clamp |
| 900z | 293650053 | Crimp Clamp |
