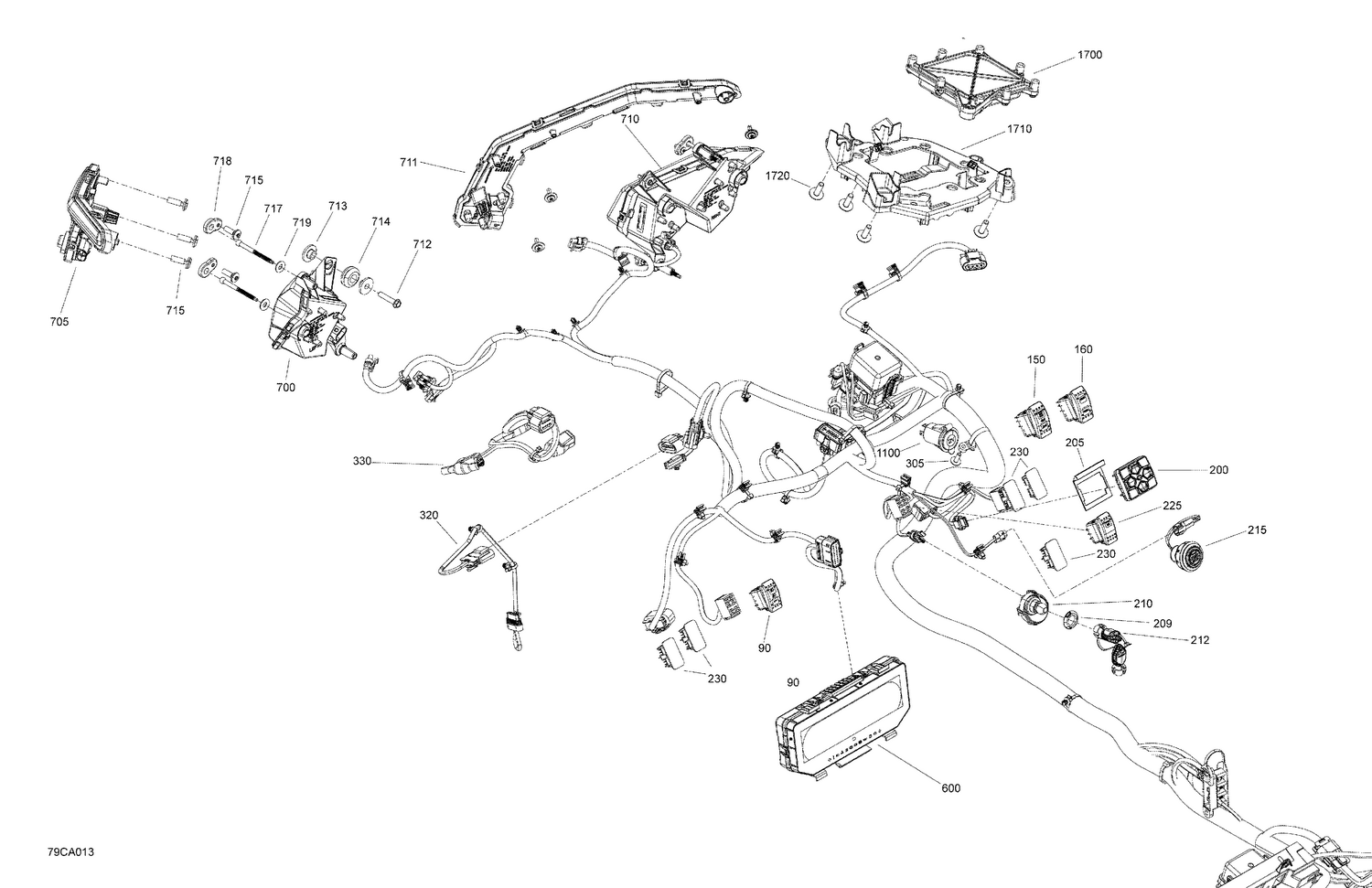

08- Electric - Front Section
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 90 | 710007022 | Headlights Switch |
| 150 | 710006040 | Differential Switch |
| 160 | 710006558 | Differential Mode Switch |
| 200 | 710006059 | Switch Multifunction |
| 205 | 707900778 | Rubber Stopper |
| 209 | 278002963 | Safety Nut (DESS Switch) |
| 210 | 515178840 | Terminal Dess One-Wire |
| 212 | 710004964 | Grey Key RFID |
| 215 | 710005213 | Start-Stop Button |
| 225 | 710002053 | Switch, Over ride |
| 230 | 710007173 | Plug Carling |
| 305 | 250000959 | Screw PT Type K-50 X 16 |
| 320 | 710005291 | Cable Throttle Pedal |
| 330 | 710006807 | Front Differential Wiring Harness |
| 600 | 710007409 | Multifunction Gauge MID |
| 700 | 710008811 | LH Front Auxiliary LED Light This part replaces 710004658. |
| 705 | 710004994 | LH Signature Beam |
| 710 | 710008812 | RH Front Auxiliary LED Light This part replaces 710004659. |
| 711 | 710004995 | RH Signature Beam |
| 712 | 241152540 | Hex. Flange Screw K50 X 2.24 X 25 |
| 713 | 710004749 | Shoulder Bushing |
| 714 | 709000582 | Grommet |
| 715 | 250000959 | Screw PT Type K-50 X 16 |
| 717 | 710005837 | Ajustment Screw |
| 718 | 710005097 | Adjustment Guide |
| 719 | 293300192 | O-Ring |
| 1100 | 710005374 | Prise Accessoire 12V |
| 1700 | 710008871 | Differential Module This part replaces 710008127. |
| 1710 | 710005807 | FDM Support |
