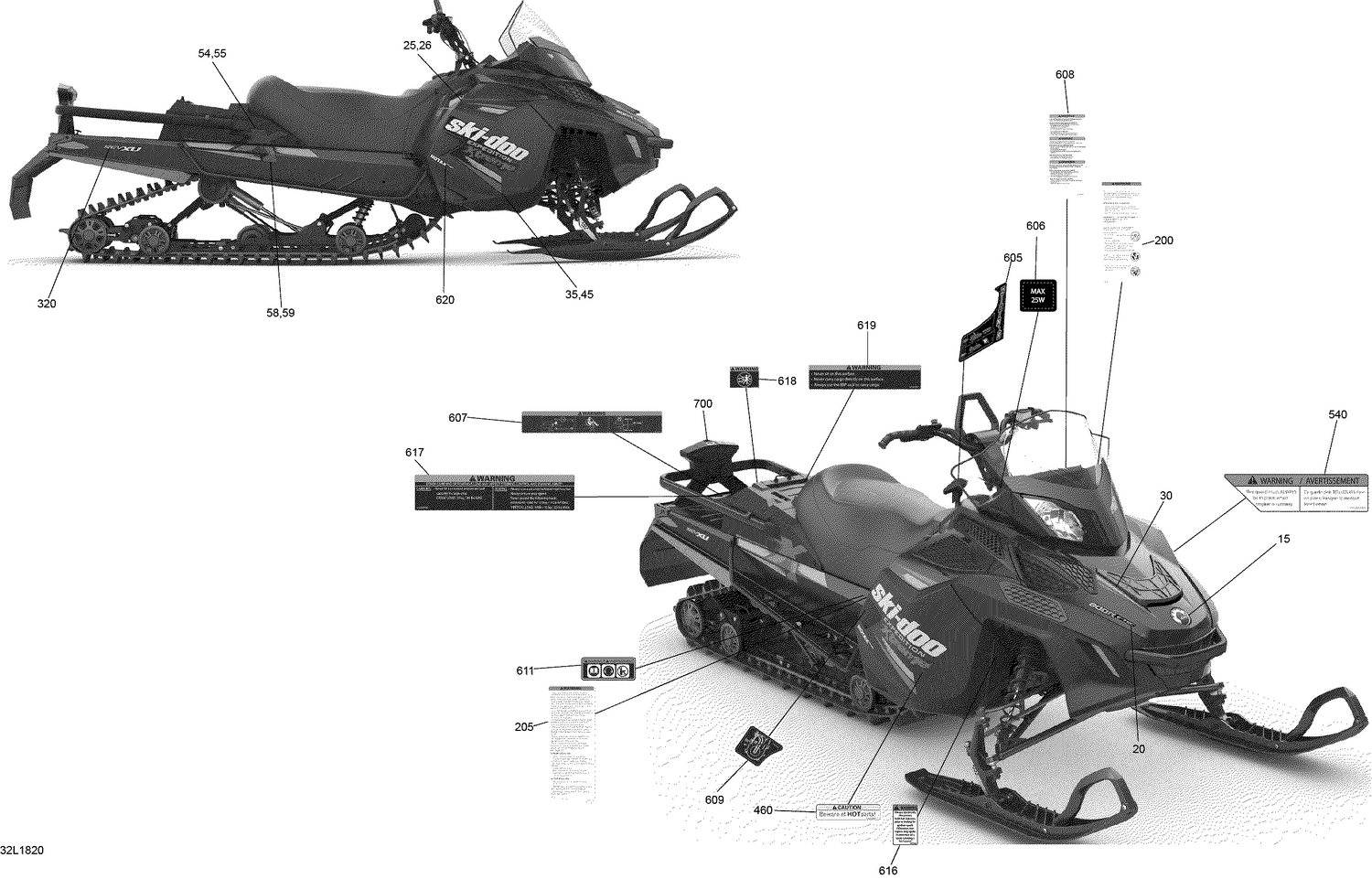

09- Decals Expedition - Extreme
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 15 | 516008739 | BRP Logo 68mm This part replaces 516006888. |
| 20 | 516007157 | Hood Decal "800R E-Tec" |
| 25 | 516007457 | LH Access Panel Decal |
| 26 | 516007458 | RH Access Panel Decal |
| 30 | 516007456 | Hood Decal |
| 35 | 516007415 | LH Side Panel Decal |
| 45 | 516007416 | RH Side Panel Decal |
| 54 | 516007417 | LH Storage Box Decal |
| 55 | 516007418 | Decal |
| 58 | 516007419 | LH Frame Decal |
| 59 | 516007420 | RH Frame Decal |
| 320 | 516007167 | REV XU Decal |
| 460 | 516006903 | Hot Parts Decal |
| 605 | 516004305 | Instruction Label, Transmission |
| 609 | 516003925 | Checking Label, Transmission |
| 616 | 516005583 | WARNING DECAL, INJECTORS - Call your local BRP dealership |
| 620 | 516006331 | Decal ROTAX POWER |
