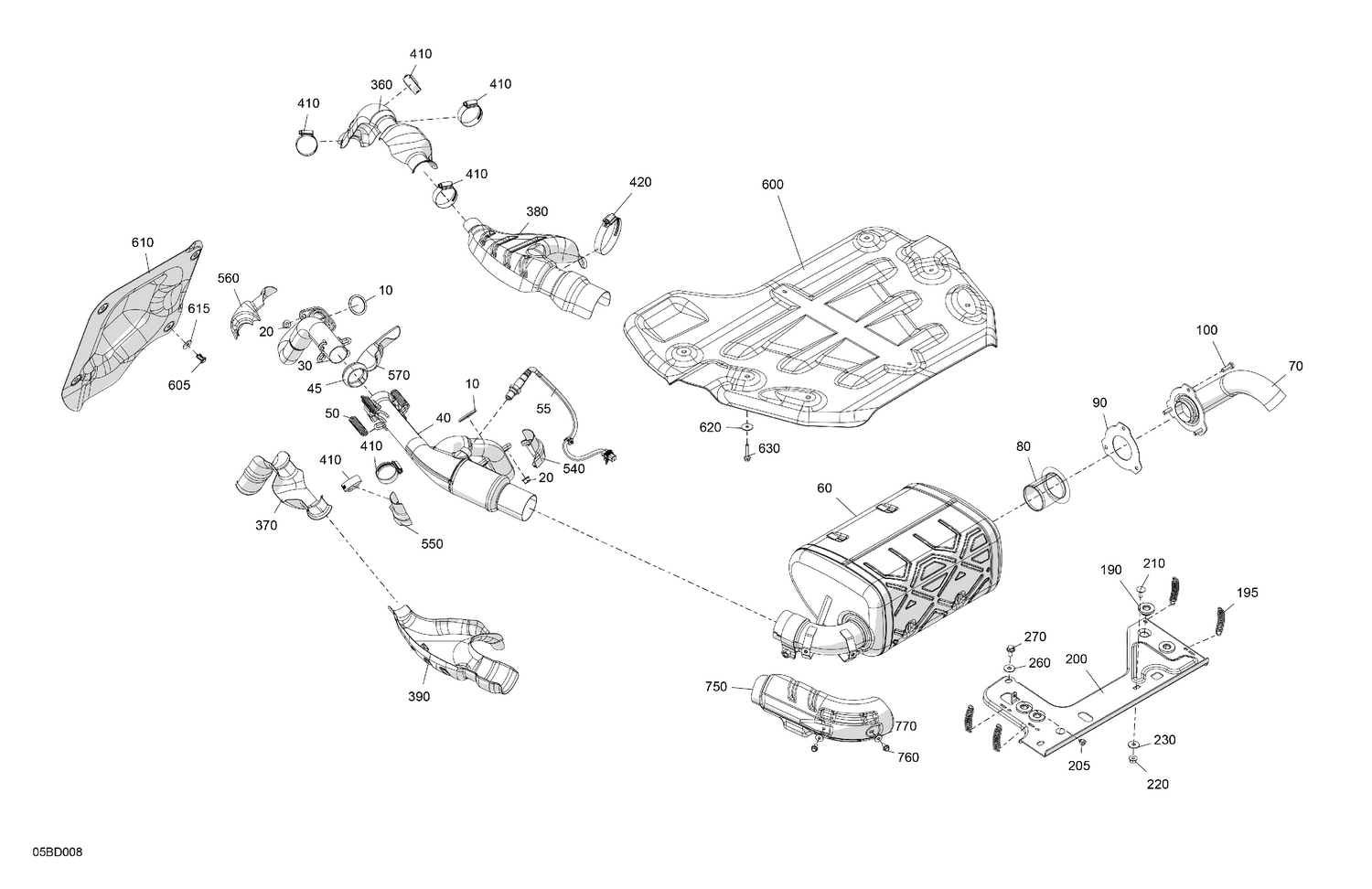

02- Engine - Exhaust
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 707600317 | Gasket |
| 20 | 233081436 | Hex. Flange Nut |
| 30 | 707602039 | Front Exhaust Pipe |
| 40 | 707602390 | Rear Exhaust Pipe |
| 45 | 707601033 | Exhaust Gasket |
| 50 | 707601834 | Spring |
| 55 | 707600872 | Oxygen Sensor |
| 60 | 707602903 | Muffler |
| 70 | 707602905 | Exhaust Pipe Out |
| 80 | 707602133 | Spark Arrester |
| 90 | 707603026 | Exhaust Gasket |
| 100 | 207182546 | Hex. Screw Cap DIN.933 |
| 190 | 707602802 | Vibration Damper |
| 195 | 707601834 | Spring |
| 200 | 707603432 | Muffler Support |
| 205 | 293830005 | Rubber Bumper |
| 210 | 207782044 | Carriage Bolt, M8 X 20 |
| 220 | 233081436 | Hex. Flange Nut |
| 230 | 234082410 | Flat Washer 8 mm |
| 260 | 234082410 | Flat Washer 8 mm |
| 270 | 207581646 | Hex. Flange Screw M8 X 16, Scotch Grip |
| 360 | 707602666 | Front Heat Shield |
| 370 | 707602667 | Rear Heat Shield |
| 380 | 707602668 | Upper Heat Shield |
| 390 | 707602669 | Lower Heat Shield |
| 410 | 293650305 | Murray Gear Clamp |
| 420 | 293650250 | Tridon Gear Clamp |
| 540 | 707602670 | Upper Rear Heat Shield |
| 550 | 707602671 | Lower Rear Heat Shield |
| 560 | 707602672 | Front Upper Heat Shield |
| 570 | 707602673 | Lower Front Heat Shield |
| 600 | 707603178 | Heat Shield |
| 605 | 293150230 | Tuflok Plastic Rivet |
| 610 | 707602043 | Heat Shield |
| 615 | 234082410 | Flat Washer 8 mm |
| 620 | 224060251 | Washer |
| 630 | 207563544 | Hex. Flange Screw S.Grip M6 X 35 |
| 750 | 707602800 | Heat Shield |
| 760 | 207661244 | Hex. Flange Screw M6 X 12 |
