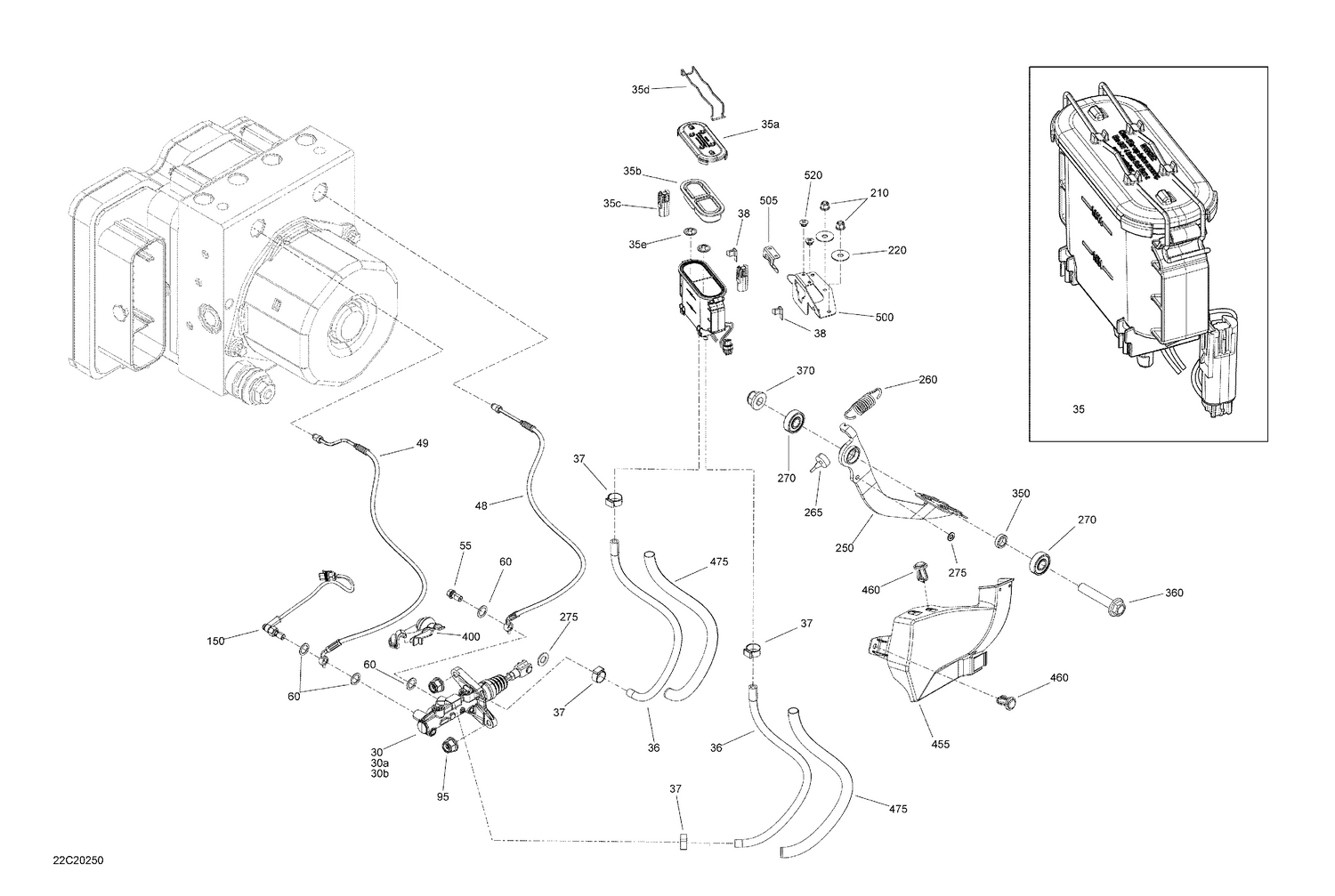

06- Brakes - Master Cylinder
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 30a | 715900373 | Boot Rod Kit |
| 30b | 715900374 | Fork Kit |
| 35a | 219800350 | Diaphragm Cover Ass'y |
| 35b | 219800350 | Diaphragm Cover Ass'y |
| 35c | 705601073 | Oil Level Sensor |
| 35d | 705601294 | Spindle Lock |
| 35e | 211100002 | Push Nut |
| 36 | 705601801 | Hose |
| 37 | 293650046 | Oetiker Clamp |
| 38 | 710001343 | Clip |
| 48 | 705601663 | Front Master Cylinder Hose |
| 49 | 705601664 | Rear Master Cylinder Hose |
| 55 | 705600609 | Banjo Bolt (M10 x 1.25 thread) |
| 60 | 705601628 | Copper Washer |
| 95 | 233281416 | Hex. Elastic Flange Nut M8 |
| 150 | 705601669 | Brake Switch |
| 210 | 233251494 | Elastic Flange Nut M5 |
| 220 | 250200040 | Flat Washer |
| 250 | 705601537 | Brake Pedal |
| 260 | 705600792 | Brake Pedal Spring |
| 265 | 708000759 | Rubber Stopper |
| 270 | 705600458 | Bearing |
| 275 | 250200183 | Nylon Flat Washer M8 |
| 350 | 705601622 | Bushing |
| 360 | 207605546 | Hex. Flange Screw M10 X 55 |
| 370 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 400 | 705601750 | Hose Support |
| 455 | 705601626 | Master Cylinder Deflector |
| 460 | 293150230 | Tuflok Plastic Rivet |
| 475 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 500 | 705601644 | Reservoir Support |
| 505 | 705601608 | Stopper Bracket |
