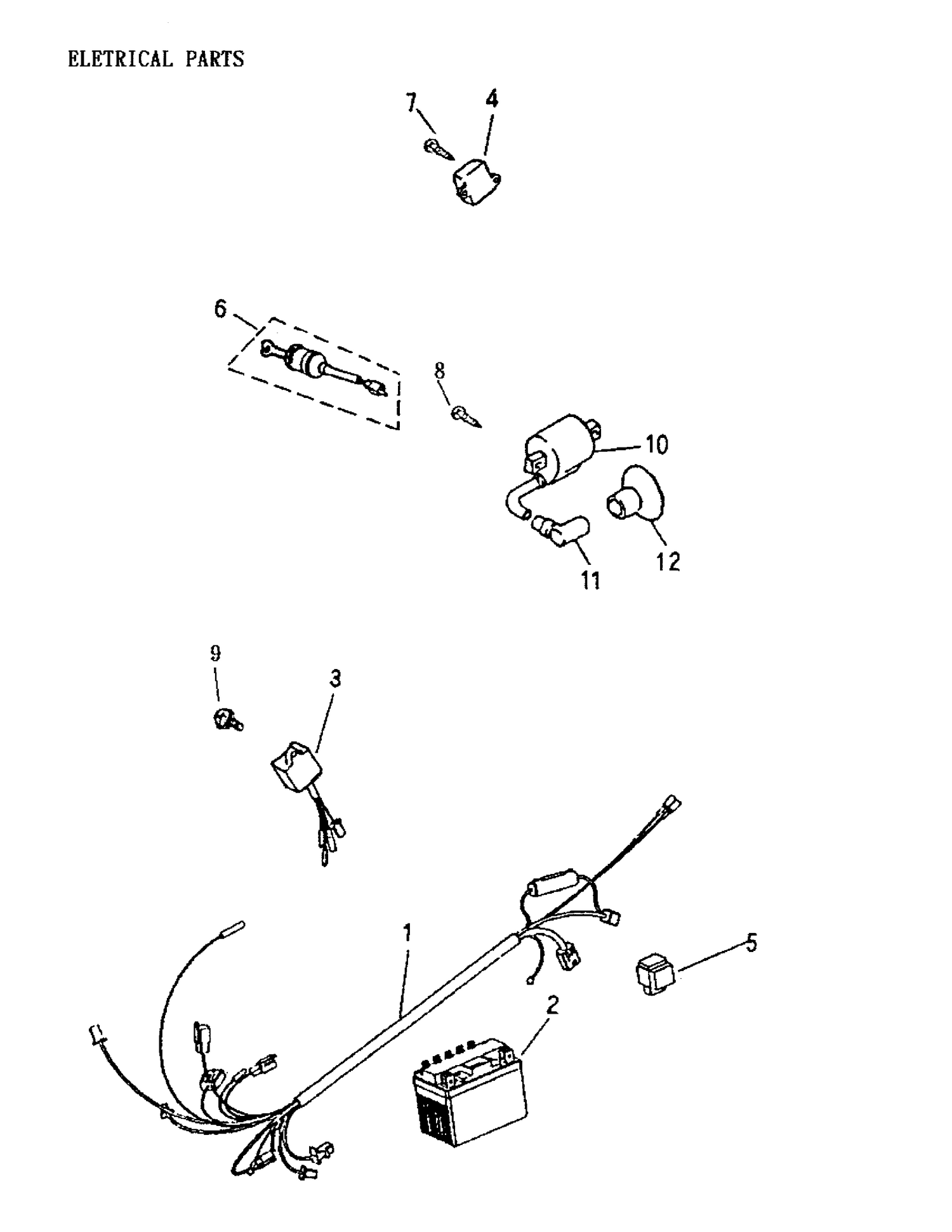

10- Electrical Components
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A32100166001 | Main Wire Harness |
| 2 | 415130961 | Battery 12 Volt 4 Ah This part replaces A31500116000. |
| 3 | A30410117001 | C.D.I Unit (5900RPM) |
| 4 | A31600110000 | Regulator Rectifier |
| 5 | A38501105001 | STARTING RELAY - Call your local BRP dealership |
| 6 | A3510016600A | MAIN SWITCH ASS'Y - Call your local BRP dealership |
| 7 | A9390305016 | Tapping Screw Truss Head Phillips M5 X 1 |
| 8 | A9390305025 | Tapping Screw Truss Head Phillips M5 X 2 |
| 9 | A9380006015S | Pan Head Phillips Bolt M6 X 15 |
| 10 | A30500116000 | HIGH TENSION COIL ASS'Y - Call your local BRP dealership This part replaces A30510110000. |
| 11 | A30700101001 | Spark Plug Cap |
| 12 | A30605116000 | RUBBER CAP - Call your local BRP dealership |
