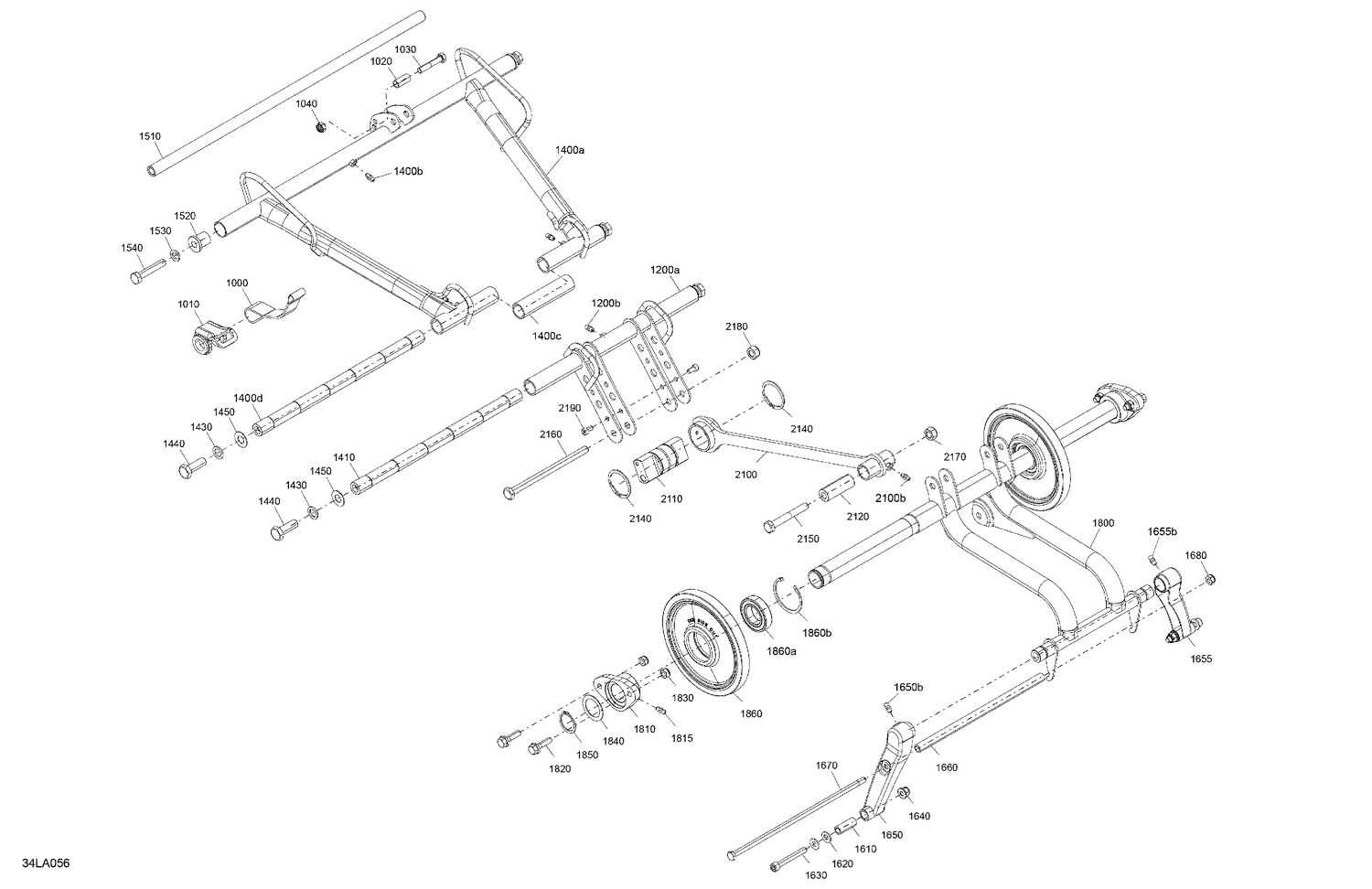

05- Suspension - Rear - Upper Section
Parts (45)
| Ref | Part Number | Description |
|---|---|---|
| 1000 | 503195869 | Strap Stopper |
| 1010 | 503194867 | Holder, Limiter Strap |
| 1020 | 605455335 | Sleeve |
| 1030 | 207084544 | Hex. Screw M8 X 45 |
| 1040 | 232581414 | Hex. Elastic Stop Nut M8 |
| 1200a | 503195613 | Rocker |
| 1200b | 408200700 | Grease Fitting |
| 1400a | 503195457 | Front Suspension Arm |
| 1400b | 408200700 | Grease Fitting |
| 1400c | 503195601 | Lower Tube |
| 1400d | 503194641 | Lower Shaft |
| 1410 | 503194641 | Lower Shaft |
| 1430 | 503192491 | Washer |
| 1440 | 250000537 | Hex. Cap Screw M12 X 35 |
| 1450 | 706200281 | Hardened Washer This part replaces 250200086. |
| 1510 | 503191392 | Upper Shaft |
| 1520 | 503189324 | Bushing |
| 1530 | 503191926 | Washer |
| 1540 | 250000605 | Hex. Screw S.GRIP M10 X 55 |
| 1610 | 503194726 | Pivot Arm Axle |
| 1620 | 503192494 | Washer |
| 1630 | 207686044 | Hex. Flange Screw M8 x 60 |
| 1640 | 233281414 | Hex. Flange Elastic Nut M8 |
| 1650b | 408200700 | Grease Fitting |
| 1655b | 408200700 | Grease Fitting |
| 1660 | 503195343 | Spacer |
| 1670 | 503195342 | Bolt M8 |
| 1680 | 232581414 | Hex. Elastic Stop Nut M8 |
| 1800 | 503195608 | Rear Arm |
| 1810 | 503195042 | Cushion |
| 1815 | 408200700 | Grease Fitting |
| 1820 | 207683054 | Hex. Flange Screw M8 X 30 |
| 1830 | 232581414 | Hex. Elastic Stop Nut M8 |
| 1840 | 503195150 | Shim Ring 30X42X1.0 |
| 1850 | 293370143 | Circlip |
| 1860a | 503191778 | Ball Bearing |
| 1860b | 415129598 | Retaining Ring |
| 2100b | 408200700 | Grease Fitting |
| 2110 | 503195629 | Rod |
| 2120 | 503195628 | Rod |
| 2140 | 293370055 | Circlip |
| 2150 | 207007544 | Hex. Screw M10 x 75 |
| 2160 | 230006034 | Hex. Screw M10 X 160 |
| 2170 | 232500416 | Elastic Stop Nut M10 |
| 2180 | 232500416 | Elastic Stop Nut M10 |
