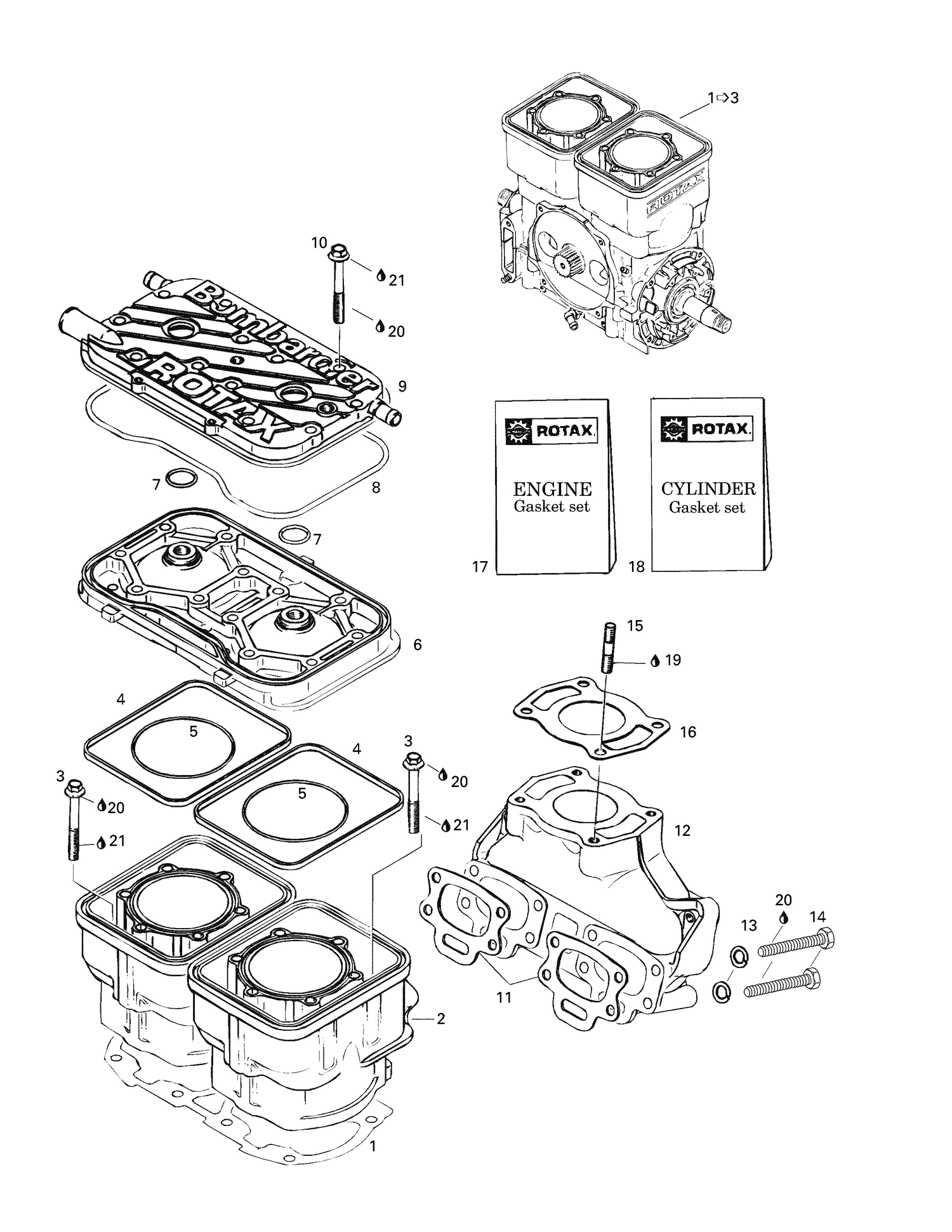

| Ref | Part Number | Description |
|---|
| 1 |
290931400 |
Gasket Cylinder 0.3 mm |
| 2 |
421000056 |
REBUILD-CYLINDERS RESLEEVING 717 95-96 - Call your local BRP dealership This part replaces 290923239. |
| 3 |
290440368 |
HEX. FLANGE SCREW M8 X 90 - Call your local BRP dealership |
| 4 |
290850045 |
Rubber Ring |
| 5 |
420931410 |
O-Ring This part replaces 290931410. |
| 6 |
290923251 |
Head Cylinder (White) |
| 7 |
420430782 |
O-Ring This part replaces 290430782. |
| 8 |
420950360 |
O-RING - Call your local BRP dealership This part replaces 290950360. |
| 9 |
290923261 |
Cylinder Head Cover (White) |
| 10 |
290841998 |
Hex. Flange Screw M8 x 68.5 |
| 11 |
420850638 |
Gasket This part replaces 290850637. |
| 12 |
290979141 |
Exhaust Manifold (White) |
| 13 |
234180602 |
Lock Spring Washer 8 mm, Stainless This part replaces 217383600. |
| 14 |
290841998 |
Hex. Flange Screw M8 x 68.5 |
| 15 |
420941014 |
Stud M8 x 26 This part replaces 290941013. |
| 16 |
420950253 |
Exhaust Gasket This part replaces 290950251. |
| 17 |
290886317 |
Engine Gasket Set (Not Shown) |
| 18 |
290886316 |
CYLINDER GASKET SET (NOT SHOWN) - Call your local BRP dealership |
| 19 |
219703000 |
Sealant Loctite 648 This part replaces 290899788. |
| 20 |
413707000 |
Dow Corning 111, 150 g |
| 290931401 |
Gasket |
Cylinder 0.4 mm 290931401 |
| 290931402 |
GASKET |
CYLINDER 0.5 MM - Call your local BRP dealership 290931402 |
| 290931403 |
Gasket |
Cylinder 0.6 mm 290931403 |
| 290931404 |
Gasket |
Cylinder 0.8 mm 290931404 |
