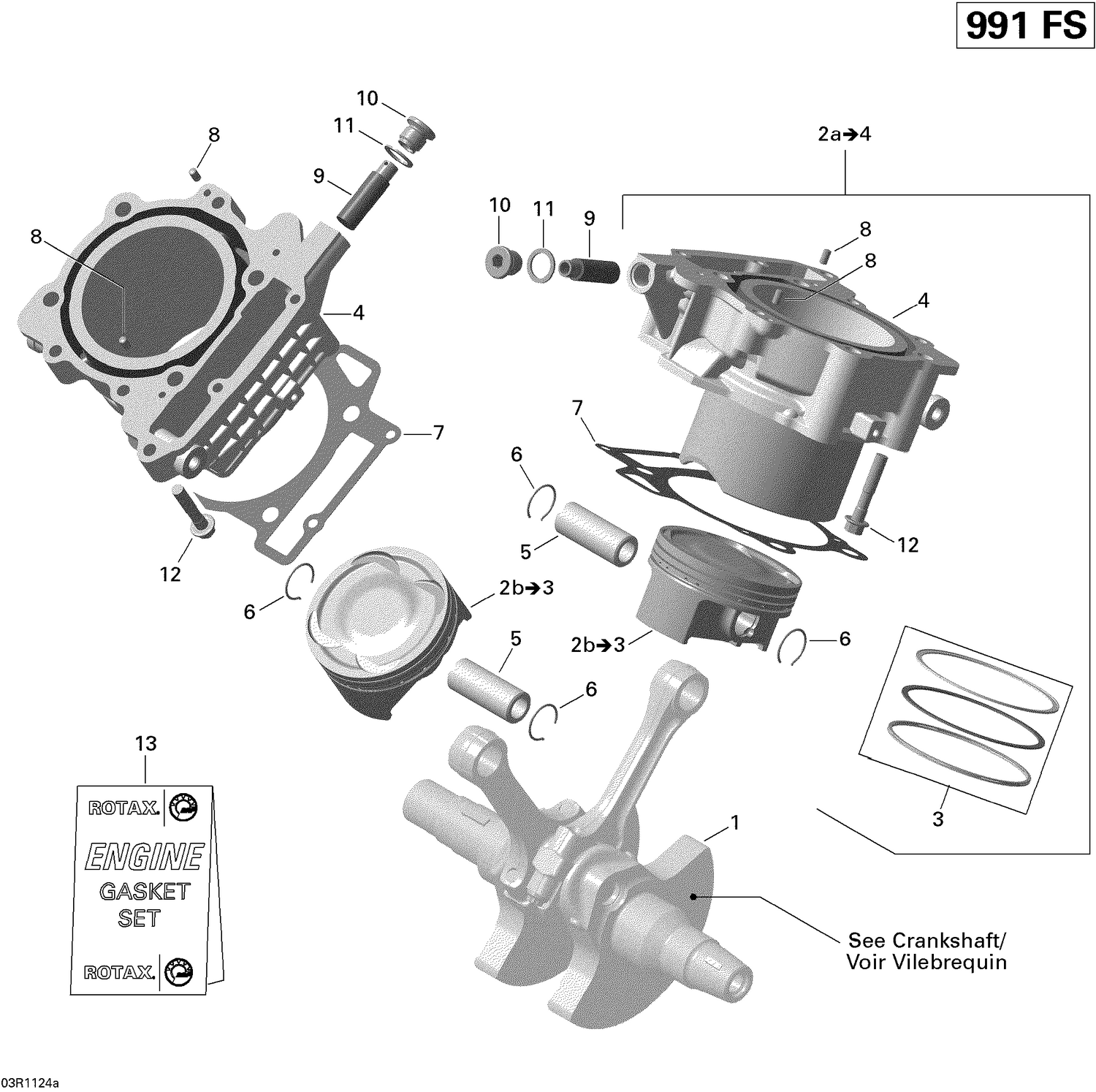

| Ref | Part Number | Description |
|---|
| 1 |
420890567 |
CRANKSHAFT - Call your local BRP dealership This part replaces 420684794. |
| 2b |
420684687 |
PISTON ASS'Y, 96.956 MM - Call your local BRP dealership This part replaces 420684682. |
| 3 |
420295858 |
Piston Ring Set |
| 4 |
Not |
Available As Spare Part - Cylinder |
| 5 |
420216222 |
Piston Pin |
| 6 |
420245436 |
Piston Circlip |
| 7 |
420650390 |
Cylinder Gasket |
| 8 |
420929650 |
Drive Pin 5 X 10 |
| 10 |
420640457 |
Plug Screw |
| 11 |
420430622 |
O-Ring |
| 12 |
420940637 |
HEX. FLANGED SCREW M8 X 45 - Call your local BRP dealership |
