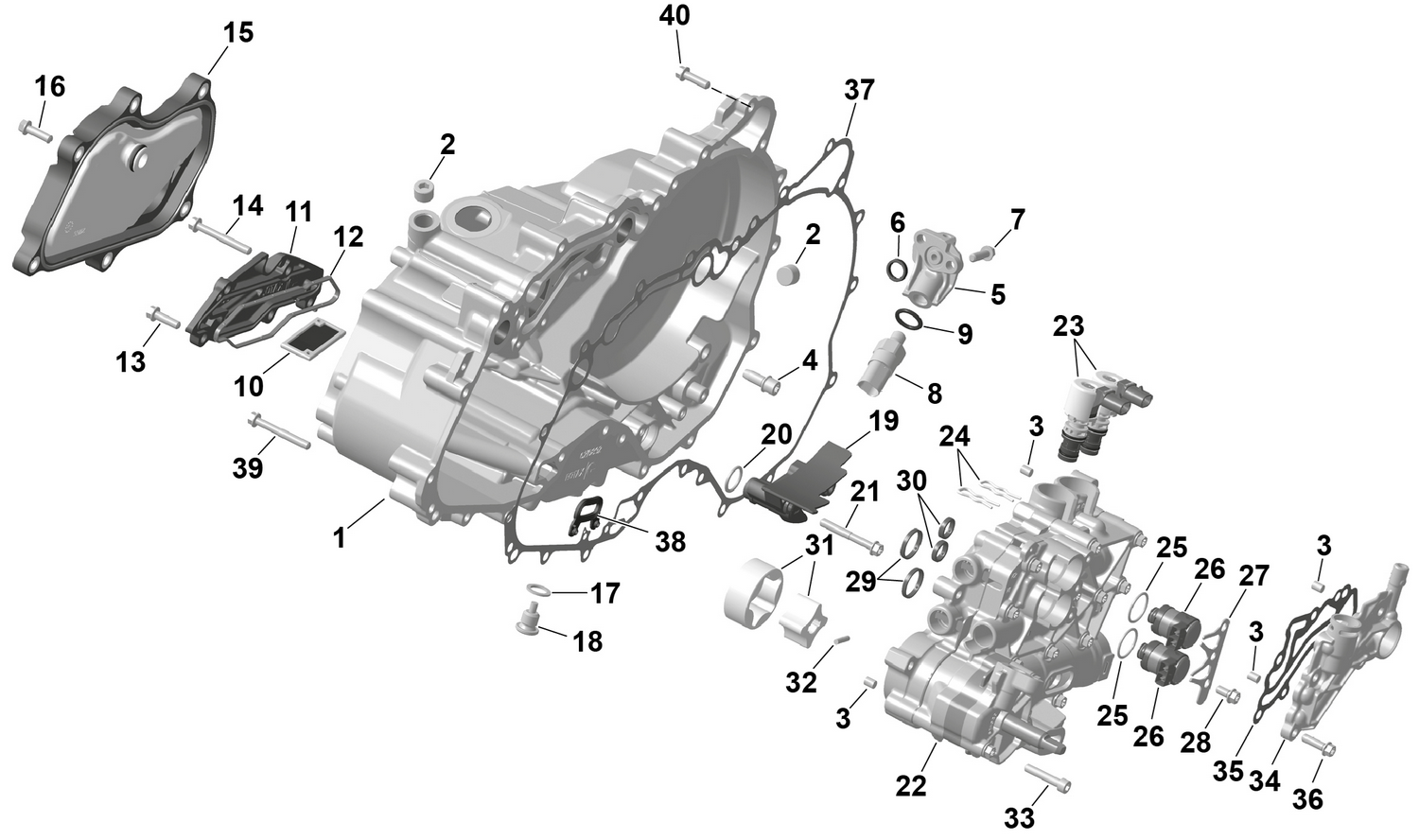

01- ROTAX - Lubrication SE6
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420212907 | Clutch Cover Ass'y |
| 2 | 420641309 | Plug Screw M14 X 1.5 |
| 3 | 420232210 | Center Pin |
| 4 | 420841732 | Torx Screw M8 X 18 |
| 5 | 420212173 | Pressure Sensor Housing |
| 6 | 420450310 | Gasket |
| 7 | 420440207 | Torx Flange Screw M6 X 20 |
| 8 | 420264166 | Oil Pressure Sensor |
| 9 | 420450350 | O-Ring |
| 10 | 420656990 | Oil Sieve |
| 11 | 420210870 | Oil Duct Cover |
| 12 | 420250630 | Gasket |
| 13 | 420440207 | Torx Flange Screw M6 X 20 |
| 14 | 420440324 | Torx Flange Screw M6 X 45 |
| 15 | 420211156 | Oil Filter Cover |
| 16 | 420440207 | Torx Flange Screw M6 X 20 |
| 17 | 420250640 | Copper Washer |
| 18 | 420241780 | Magnetic Drain Plug M12 X 1.5 |
| 19 | 420224085 | Oil Guiding Plate |
| 20 | 420430220 | O-Ring |
| 21 | 420440324 | Torx Flange Screw M6 X 45 |
| 22 | 420210982 | Hydraulic Housing Ass'y |
| 23 | 420264212 | Solenoid Valve 3/2 |
| 24 | 420939041 | Spring Clip |
| 25 | XXX | Not Available As Spare Parts |
| 26 | 420656792 | Solenoid Valve Ass'y |
| 27 | 420651701 | Retaining Plate |
| 28 | 420440147 | Hex. Flange Screw M6 X 12 |
| 29 | 420450240 | Gasket |
| 30 | 420450310 | Gasket |
| 31 | 420456290 | Oil Pump Rotor |
| 32 | 420232731 | Needle Pin |
| 33 | 420840888 | Torx Flange Screw M6 X 30 |
| 34 | 420211124 | Valve Housing |
| 35 | 420450290 | Gasket |
| 36 | 420440207 | Torx Flange Screw M6 X 20 |
| 37 | 420450032 | Gasket Ass`y |
| 38 | XXX | Not Available As Spare Parts |
| 39 | 420440324 | Torx Flange Screw M6 X 45 |
