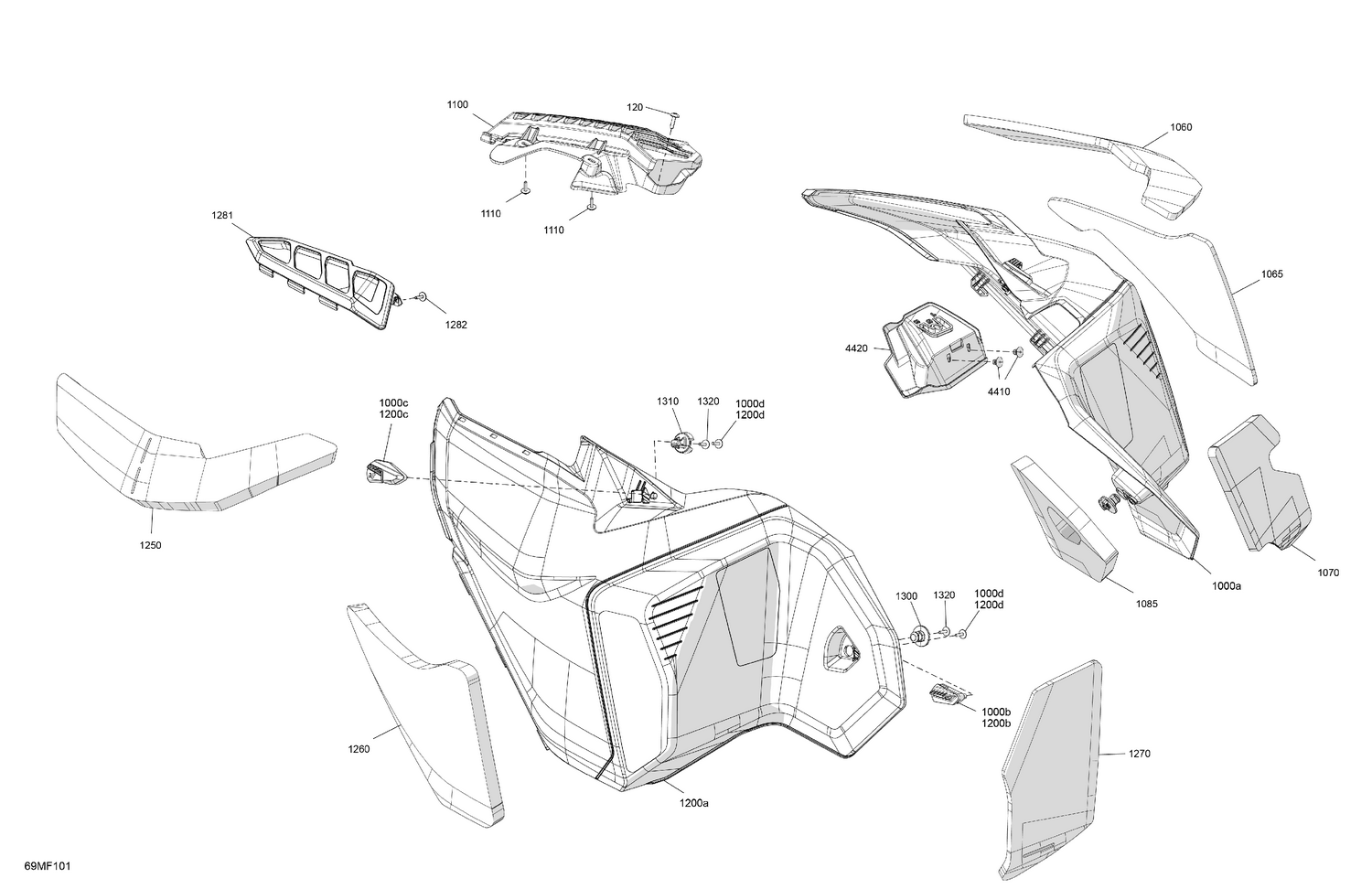

07- Body - Side Panels
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 120 | 250000528 | Torx Screw M5 X 20 |
| 1000a | 517306298 | Deep Black, RH Panel |
| 1000b | 517305773 | RH Rear Latch |
| 1000c | 517305979 | RH Front Latch |
| 1000d | 250000725 | Screw M4 X 16 |
| 1060 | 517306497 | RH Front Panel Foam |
| 1065 | 517306561 | RH Central Panel Foam |
| 1070 | 517306501 | RH Rear Panel Foam |
| 1085 | 517307293 | RH Rear Panel Foam |
| 1100 | 517308292 | RH Hood Grille Ass'y |
| 1110 | 250000725 | Screw M4 X 16 |
| 1200a | 517308784 | Deep Black, LH Panel |
| 1200b | 517305774 | LH Rear Latch |
| 1200c | 517305980 | LH Front Latch |
| 1200d | 250000725 | Screw M4 X 16 |
| 1250 | 517306498 | LH Front Panel Foam |
| 1260 | 517306562 | LH Central Panel Foam |
| 1270 | 517306499 | LH Rear Panel Foam |
| 1281 | 517309770 | LH Panel Grille |
| 1282 | 250000725 | Screw M4 X 16 |
| 1300 | 517305985 | Rear Stud |
| 1310 | 517305988 | Front Stud |
| 1320 | 250000725 | Screw M4 X 16 |
| 4410 | 293150292 | Black, Pop Rivet 3/16 X ,550 |
