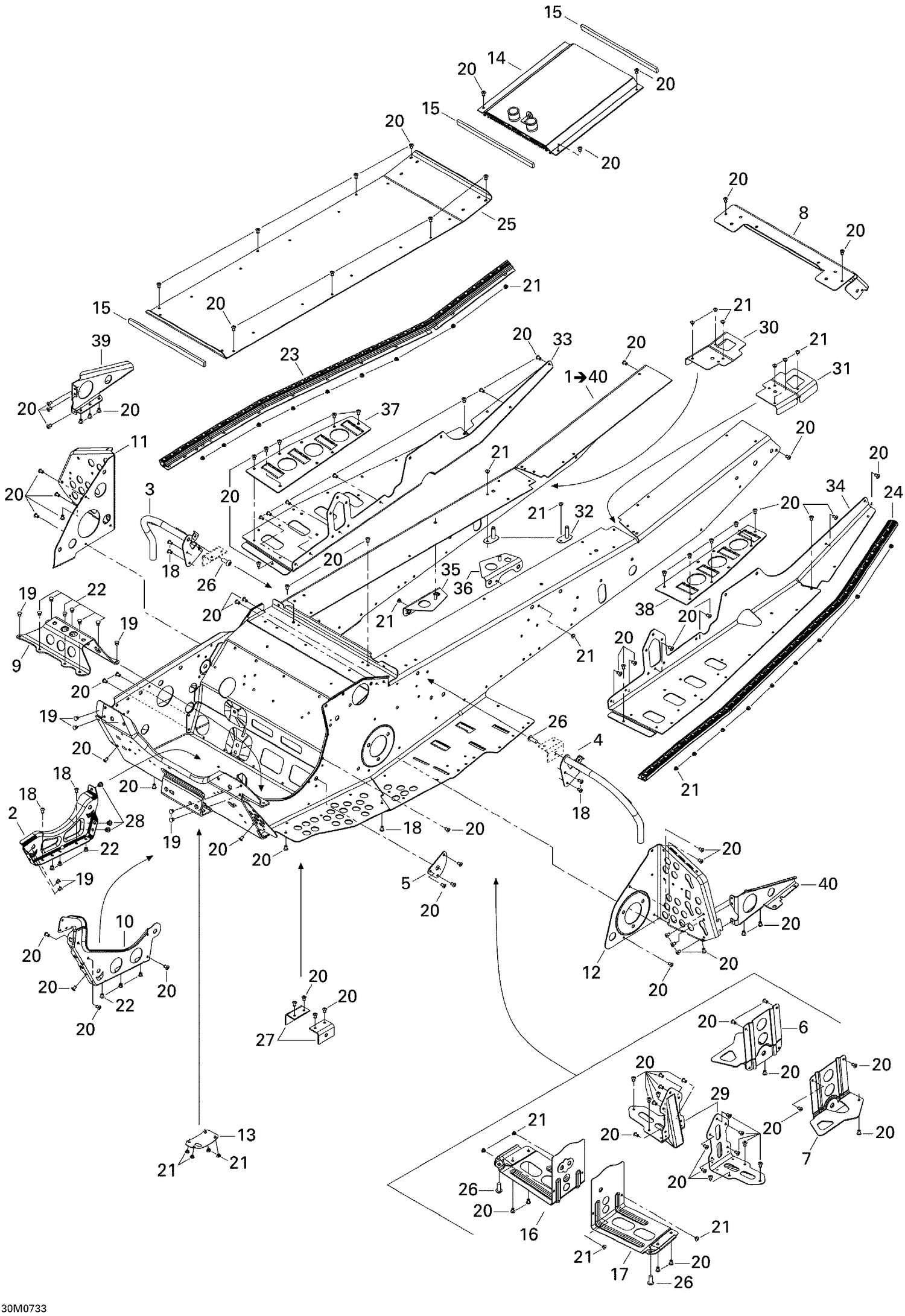

| Ref | Part Number | Description |
|---|
| 2 |
518323346 |
ENGINE SUPPORT, BLACK - Call your local BRP dealership |
| 3 |
518324162 |
RH TOE HOLD SUPPORT - Call your local BRP dealership |
| 4 |
518324163 |
LH TOE HOLD SUPPORT - Call your local BRP dealership |
| 5 |
518323507 |
OUTER REINFORCEMENT - Call your local BRP dealership |
| 6 |
518324703 |
RH SUSPENSION BRACKET, BLACK - Call your local BRP dealership |
| 7 |
518324704 |
LH Suspension Bracket, Black |
| 8 |
518325030 |
Rear Cap |
| 9 |
518324093 |
CENTER CROSS LINK - Call your local BRP dealership |
| 10 |
518323241 |
INNER REINFORCEMENT, BLACK - Call your local BRP dealership |
| 11 |
518323805 |
RH Footrest Reinforcement |
| 12 |
518324527 |
LH FOOTREST REINFORCEMENT - Call your local BRP dealership |
| 13 |
518324169 |
PLATE - Call your local BRP dealership |
| 14 |
518325019 |
Rear Radiator |
| 15 |
293200104 |
GASKET - Call your local BRP dealership |
| 16 |
518324712 |
RH Footrest Reinforcement, Black |
| 17 |
518324713 |
LH FOOTREST REINFORCEMENT, BLACK - Call your local BRP dealership |
| 18 |
390909200 |
Avex Rivet |
| 19 |
390909100 |
Avex Rivet |
| 20 |
390402200 |
Pop Rivet 3/16" |
| 21 |
390402400 |
Pop Rivet 3/16" |
| 22 |
390910300 |
HENROB RIVET - Call your local BRP dealership |
| 23 |
518323310 |
RH Roller |
| 24 |
518323311 |
LH Roller |
| 25 |
Not |
Available As Spare Part - Center Plate |
| 26 |
205982086 |
SOCKET HEAD SCREW M8 X 20, SCOTCH GRIP - Call your local BRP dealership |
| 27 |
518323185 |
Tunnel Reinforcement |
| 28 |
293150096 |
Hemlock Rivet, 6.5 mm |
| 29 |
518323578 |
CENTER REINFORCEMENT - Call your local BRP dealership |
| 30 |
518324431 |
RH FRAME REINFORCEMENT - Call your local BRP dealership |
| 31 |
518324432 |
LH FRAME REINFORCEMENT - Call your local BRP dealership |
| 32 |
518322791 |
Tank Bracket |
| 33 |
Not |
Available As Spare Part - RH Footrest |
| 34 |
Not |
Available As Spare Part - LH Footrest |
| 35 |
518323336 |
RH Frame Reinforcement, Black |
| 36 |
518323337 |
LH Frame Reinforcement, Black |
| 37 |
518325023 |
RH LINER TUNNEL - Call your local BRP dealership |
| 38 |
518325024 |
LH Liner Tunnel |
| 39 |
518323187 |
RH BRACKET - Call your local BRP dealership |
