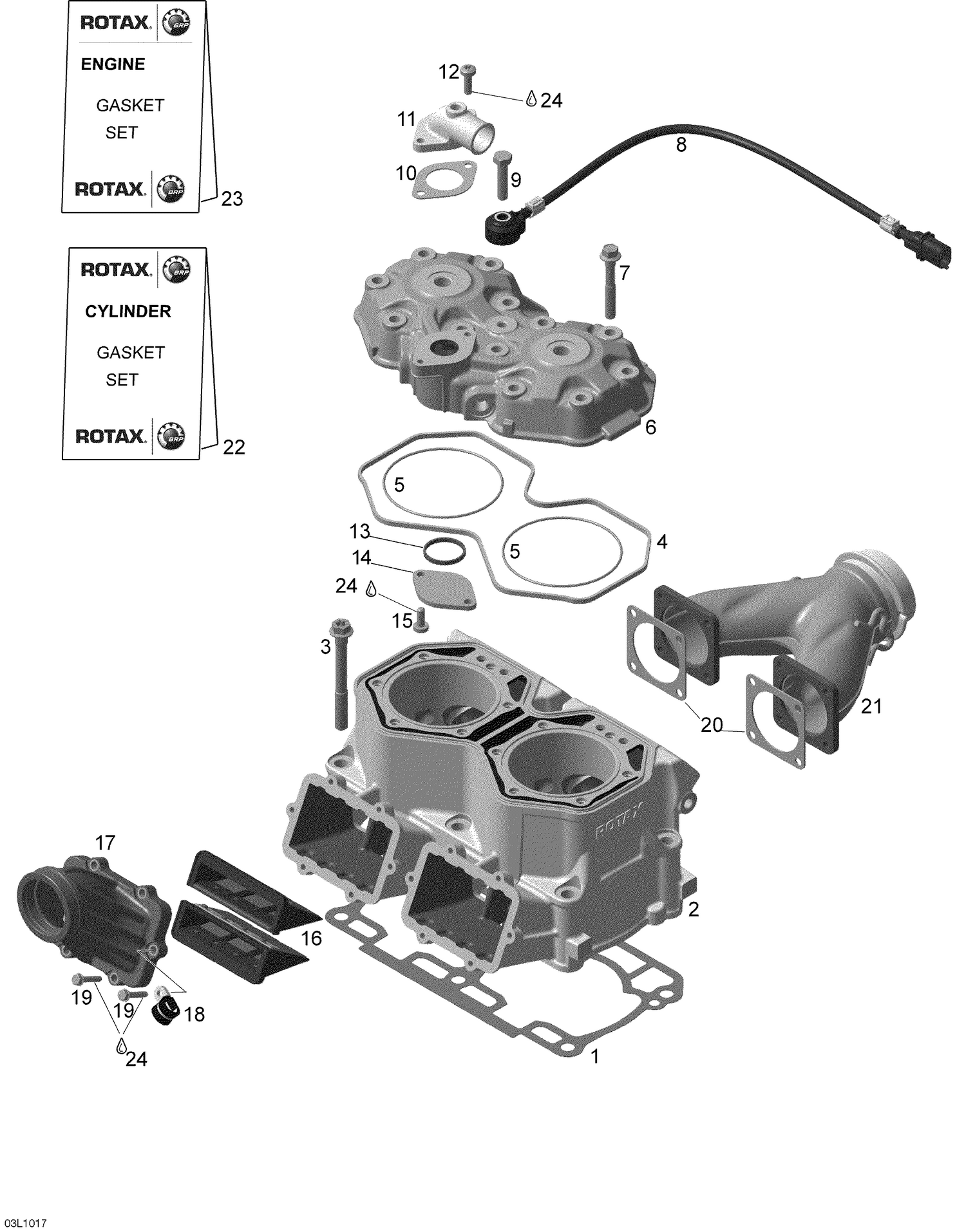

01- Cylinder And Cylinder Head
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420430080 | Double Gasket 0.5 mm |
| 1 | 420430081 | Double Gasket 0.6 mm |
| 1 | 420430082 | Double Gasket 0.7 mm |
| 1 | 420430083 | Double Gasket 0.8 mm |
| 1 | 420430084 | Double Gasket 0.9 mm |
| 2 | 420413041 | Cylinder This part replaces 420623242. |
| 3 | 420441187 | Flanged Torx Screw M10 X 90 -SW 13/T50 |
| 4 | 420430040 | O-Ring |
| 5 | 420931410 | O-Ring |
| 6 | 420613925 | Cylinder Head Cover |
| 7 | 420941627 | Hex. Screw M8 X 56.5 |
| 8 | 270000484 | Noise Sensor |
| 8 | 420460010 | TUBE - Call your local BRP dealership |
| 8 | 420960890 | CLIP - Call your local BRP dealership |
| 9 | 207083544 | Hex. Screw M8 X 35 |
| 10 | 420850339 | Gasket This part replaces 420850338. |
| 11 | 420922062 | BENT OUTLET SOCKET - Call your local BRP dealership |
| 12 | 420441386 | Flanged Torx Screw M6 X 20 This part replaces 420941256. |
| 13 | 420630780 | Gasket |
| 14 | 420926260 | COVER - Call your local BRP dealership |
| 15 | 420640324 | Torx Screw M6 X 16 This part replaces 420640321. |
| 16 | 420924798 | Reed Valve Ass'y This part replaces 420924792. |
| 17 | 420667472 | Intake socket |
| 18 | 420851250 | Clamp |
| 19 | 420241271 | Hex. Taptite Screw M5 X 25 This part replaces 420241270. |
| 20 | 420430482 | Gasket |
| 21 | 420673374 | Exhaust Manifold This part replaces 420673373. |
| 22 | 420892477 | Gasket Set, Cylinder |
| 23 | 420892472 | Gasket Set, Engine |
