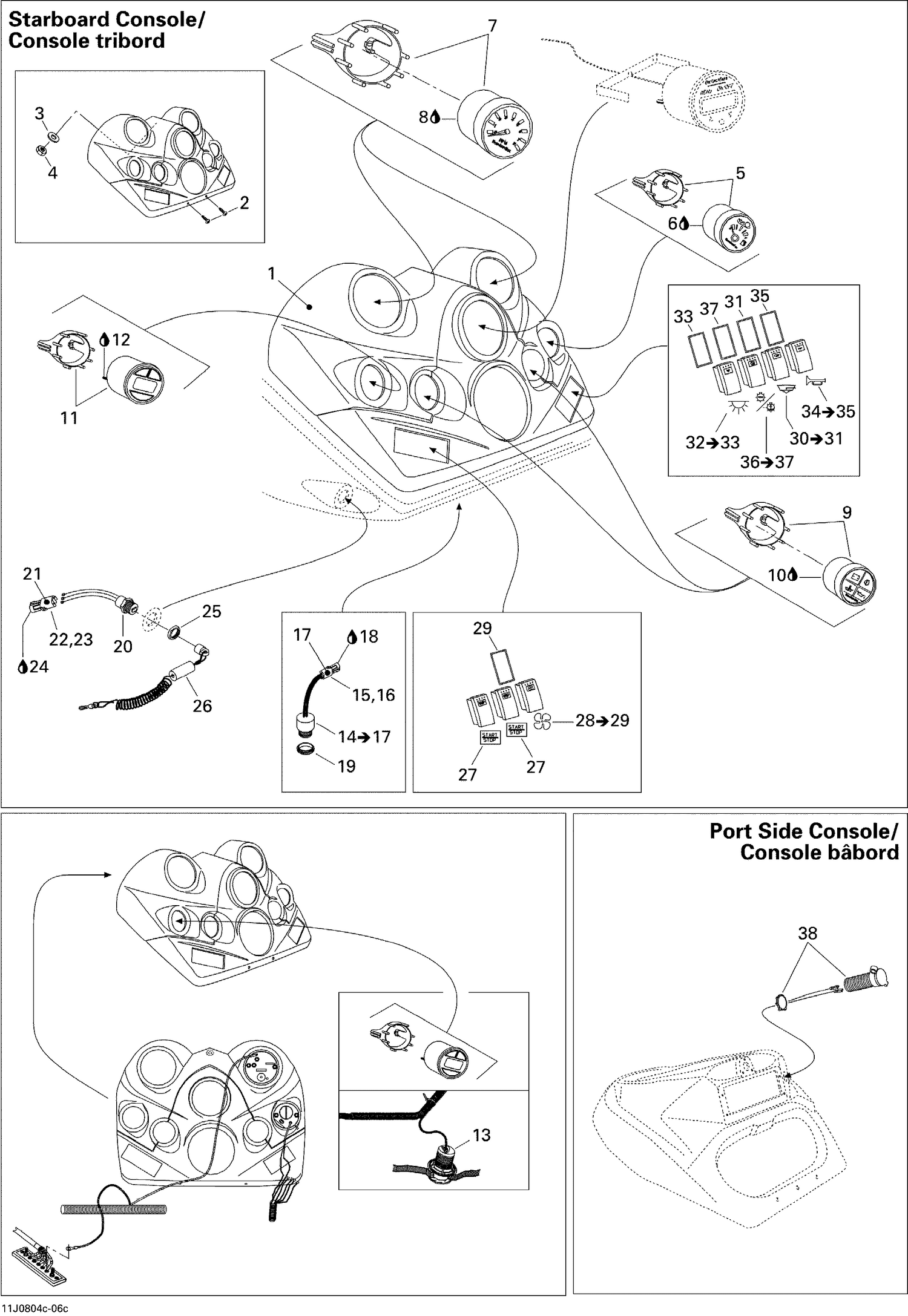

10- Electrical Accessories 3
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 204471259 | Fascia |
| 2 | 202000203 | SCREW-TAPP.TRUSS HD.PH.M4.2X25 - Call your local BRP dealership |
| 3 | 234082600 | Flat Washer 8 mm, Stainless |
| 4 | 212000005 | NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership |
| 5 | 204471128 | FUEL GAUGE - Call your local BRP dealership |
| 6 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 7 | 204470958 | TACHOMETER GAUGE - Call your local BRP dealership |
| 8 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 9 | 204471130 | ENGINE WARNING GAUGE - Call your local BRP dealership |
| 10 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 11 | 204470917 | DEPTH GAUGE - Call your local BRP dealership |
| 12 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 13 | 204471292 | Depth Sensor |
| 15 | 278000222 | Male Terminal |
| 16 | 278000218 | Wire Seal |
| 17 | 278000217 | Female Housing, 2 Circuits |
| 18 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 19 | 278000707 | Buzzer Nut |
| 20 | 278002773 | Safety Switch This part replaces 278001734. |
| 21 | 278000273 | Male Housing, 3 Circuits |
| 22 | 278000218 | Wire Seal |
| 23 | 278000223 | Female Terminal |
| 24 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 25 | 278002963 | Safety Nut (DESS Switch) This part replaces 278000508. |
| 26 | 204471206 | Safety Lanyard |
| 27 | 204471178 | START/STOP SWITCH - Call your local BRP dealership |
| 29 | 204470132 | Gasket |
| 31 | 204470132 | Gasket |
| 33 | 204470132 | Gasket |
| 35 | 204470132 | Gasket |
| 37 | 204470132 | Gasket |
