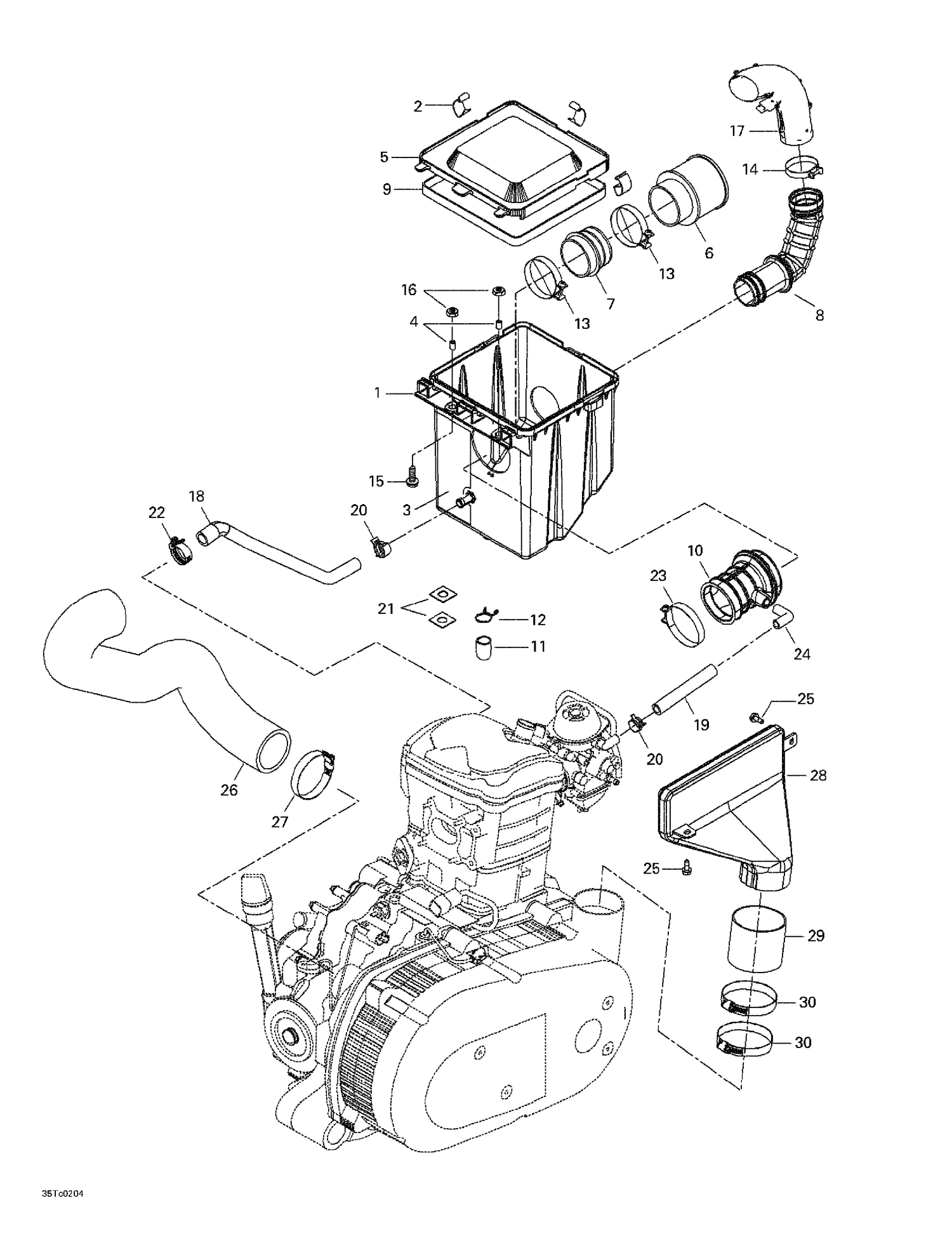

02- Air Intake System
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 707800079 | Bracket Cover |
| 3 | 707800083 | HEAT PROTECTOR - Call your local BRP dealership |
| 4 | Not | Available As Spare Part - Support Bushing |
| 5 | 707800017 | Muffler cover |
| 6 | 707800072 | Air Filter |
| 7 | 707800077 | Adaptor |
| 8 | 707800078 | Intake Adaptor |
| 9 | 293250113 | OIL SEAL - Call your local BRP dealership |
| 10 | 707800065 | Front Air-Intake |
| 11 | 707800080 | Drain Tube |
| 12 | 707800081 | RETAINER CLIP - Call your local BRP dealership |
| 13 | 293650179 | Tridon Clamp This part replaces 293650107. |
| 14 | 293650158 | Gemi Clamp This part replaces 512059006. |
| 15 | 207662044 | Hex. Flange Screw M6 X 20 |
| 16 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 17 | 707800133 | Rear Hose Intake |
| 18 | 707800097 | VENT HOSE - Call your local BRP dealership |
| 19 | 707800132 | VENT HOSE - Call your local BRP dealership |
| 20 | 293650110 | Norma Clamp |
| 21 | 293830091 | Rubber Bumper |
| 22 | 293650172 | Tridon Gear Clamp This part replaces 293650037. |
| 23 | Not | Available As Spare Part - Clamp |
| 24 | 293710098 | Raccord Coudé 90 |
| 25 | 210261050 | Hex. Forming Screw M6 X 10 This part replaces 210261080. |
| 26 | 707000152 | AIR INTAKE - Call your local BRP dealership |
| 27 | 293650023 | Tridon Clamp |
| 28 | 707000153 | Exhaust |
| 29 | 707000154 | FLEXIBLE ADAPTOR - Call your local BRP dealership |
