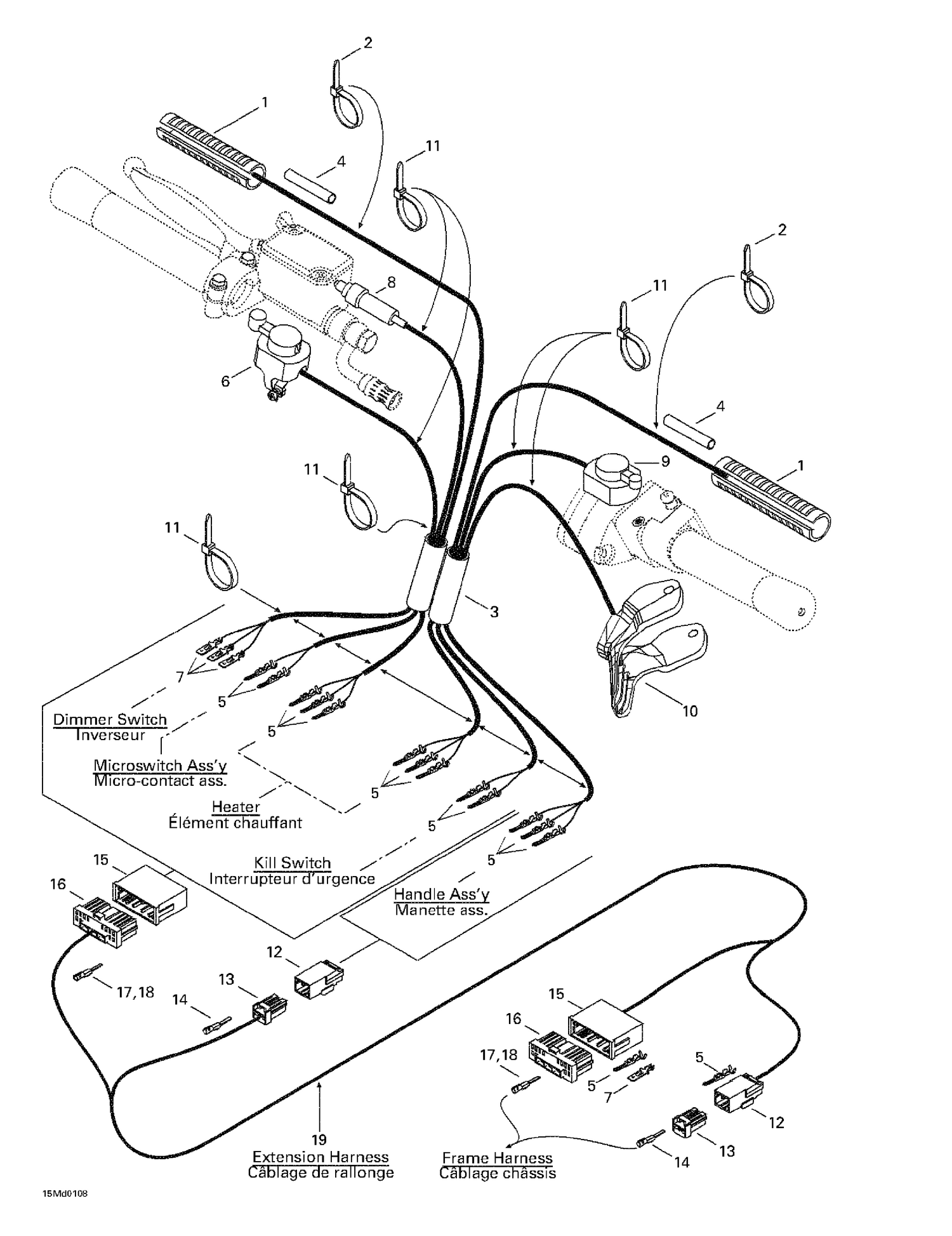

| Ref | Part Number | Description |
|---|
| 1 |
515175573 |
Heating Grip This part replaces 515175389. |
| 2 |
293750001 |
Tie Wrap 94 mm |
| 3 |
515175314 |
GAINE LOW TEMP.VINYL - Call your local BRP dealership |
| 4 |
219704424 |
Vinyl Tubing, Low Temp 3000Mm Long |
| 5 |
515175232 |
Male Terminal |
| 6 |
515175391 |
Dimmer Switch |
| 7 |
515175273 |
MALE TERMINAL - Call your local BRP dealership |
| 8 |
515175653 |
Brake Switch This part replaces 515175571. |
| 9 |
515177454 |
KILL SWITCH - Call your local BRP dealership This part replaces 410105500. |
| 10 |
512060214 |
Handle Ass'y This part replaces 512059152. |
| 11 |
414115200 |
Tie-Rap 180 mm |
| 12 |
515175494 |
Male Housing, 3 Circuits |
| 13 |
515175495 |
Female Housing, 3 Circuits |
| 14 |
515175231 |
Female Terminal |
| 15 |
515175352 |
MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership |
| 16 |
515175350 |
Female Terminal Housing, 13 Circuits |
| 17 |
515175231 |
Female Terminal |
| 18 |
515175282 |
Female Terminal |
