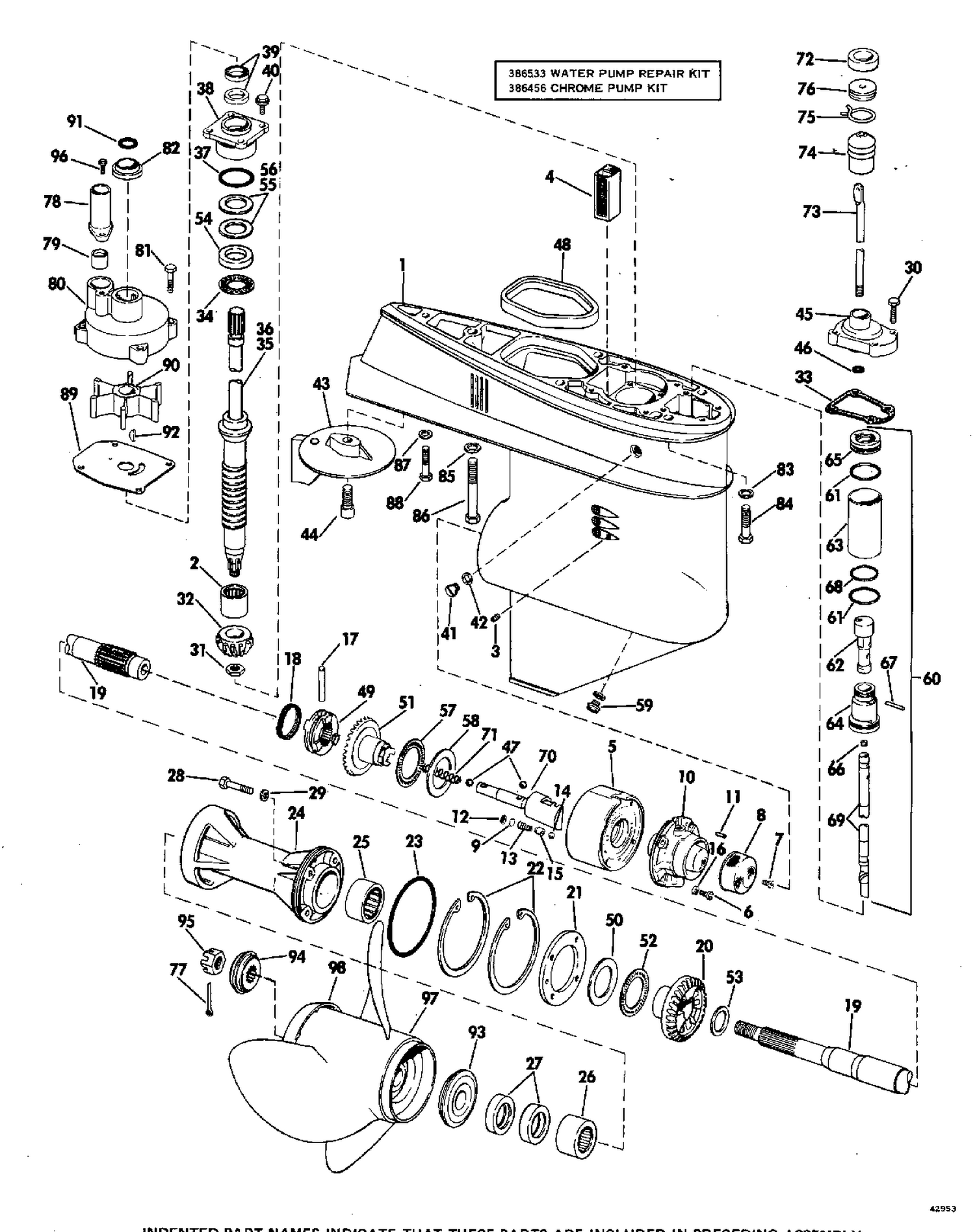

| Ref | Part Number | Description |
|---|
| 1 |
0393752 |
GEARCASE & BEARING ASSY. This part replaces 0385560. |
| 5 |
0385515 |
OIL POUMP ASSEMBLY |
| 15 |
0322879 |
GUIDE,Ball valve This part replaces 0318568. |
| 19 |
0386282 |
PROPELLAR SHAFT ASSY. |
| 29 |
0317178 |
O RING |
| 35 |
0385092 |
DRIVESHAFT ASSY, Std This part replaces 0386121. |
| 36 |
0386122 |
DRIVENSHAFT ASSY.,Long |
| 37 |
0313754 |
O RING |
| 40 |
0319545 |
VIS, supports de montage supérieurs vers support de direction |
| 43 |
0338742 |
COMPENSATEUR DE DÉRIVE This part replaces 0316981. |
| 44 |
0313715 |
SCREW, Cap, hex hd, 7/16-14 x 1 |
| 45 |
0385756 |
COVER ASSEMBLY |
| 51 |
0385567 |
GEAR ASSY, Fwd |
| 55 |
0317231 |
SHIM, . 002" |
| 58 |
0317165 |
THRUST WASHER, Fwd |
| 60 |
0385523 |
SHIFT ASSY, Gearcase |
| 70 |
0386592 |
SHIFT ROD & PLUNGER ASSY |
| 71 |
0318575 |
SPRING DETENT |
| 73 |
0317920 |
SHIFT ROD, Std |
| 73 |
0317921 |
SHIFT ROD, Long |
| 75 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet This part replaces 0318250. |
| 76 |
0321452 |
GROMMET This part replaces 0318249. |
| 80 |
0432955 |
WATER PUMP REPAIR KIT (includes impeller housing) This part replaces 0319277. |
| 83 |
0307708 |
RONDELLE GROWER |
| 85 |
0306314 |
L'WASHER,Scr,long |
| 86 |
0313697 |
SCR,Grc to hsg.long |
| 88 |
0306503 |
SCREW, Short |
| 90 |
0382547 |
IMPELLER ASSEMBLY |
| 96 |
0319292 |
SCREW, Clamp |
| 97 |
0382761 |
PROPELLER ,14 x 11 |
| 97 |
0382765 |
PROPELLER 13 X 19 |
| 97 |
0382766 |
PROP. 12-3/4 X 21 (STD) |
| 97 |
0383160 |
PROPELLER 14 X 19 |
| 97 |
0384139 |
PROP., 13 - 3/8 x 17 - SST |
| 97 |
0384142 |
PROP., 13 x 19 - SST |
| 97 |
0384144 |
PROP., 13-3/4 x 15 - sst |
| 97 |
0389512 |
PRO, 12-3/4 x 21 sst cupped This part replaces 0384141. |
| 97 |
0765181 |
PROPELLER This part replaces 0382762. |
| 97 |
0765182 |
PROPELLER - W Models This part replaces 0382763. |
| 97 |
0765183 |
PROPELLER, WDEL Models This part replaces 0382764. |
| 98 |
0314188 |
CONVERGING RING |
| 98 |
0315850 |
CONVERGING RING, Brnz |
| 0386596 |
0386596 |
G'CASE ASSY,. Complete std. |
| 0386597 |
0386597 |
G'CASE ASSY, Complete long |
