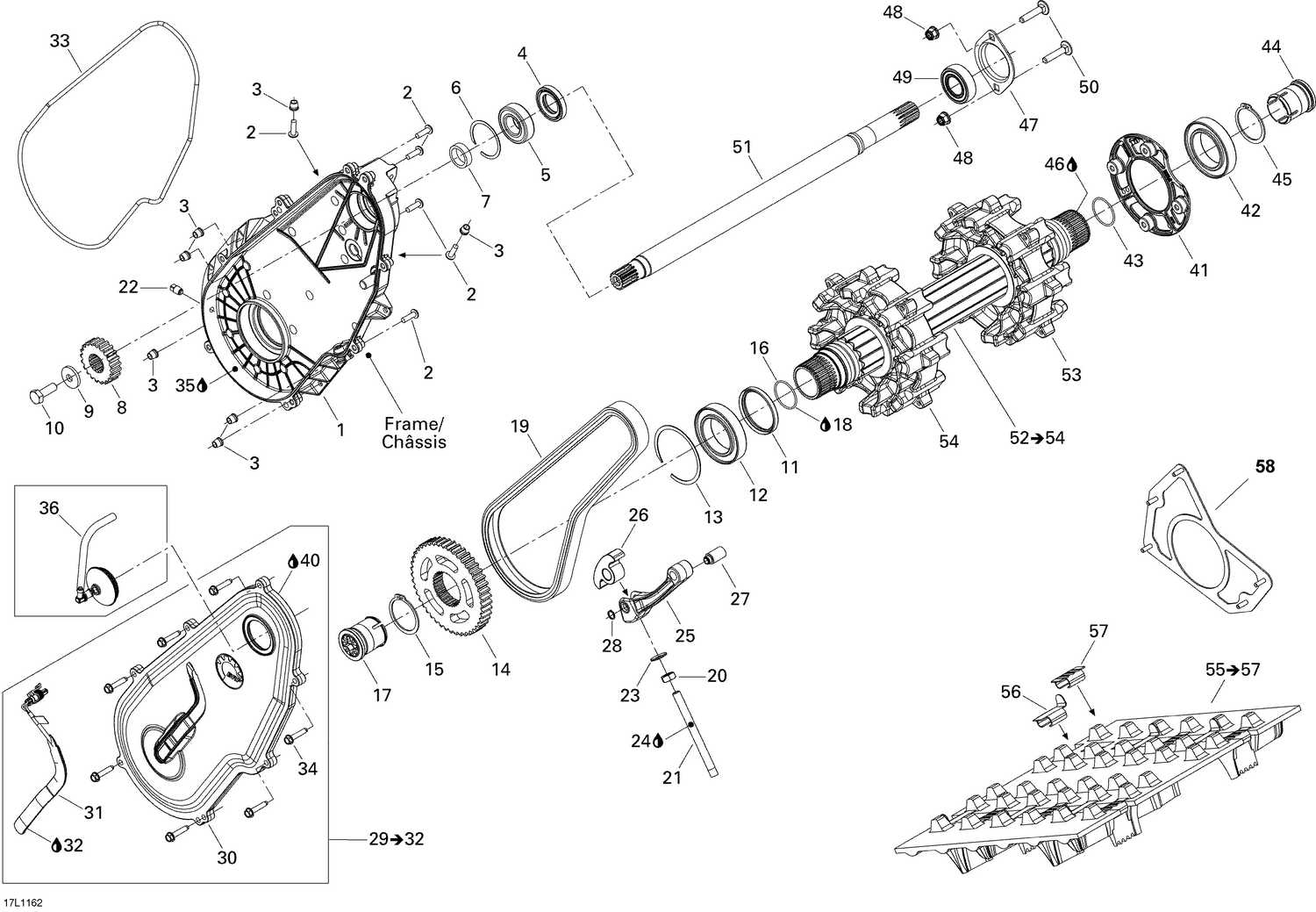

05- Drive System
Parts (50)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 504153181 | Chaincase This part replaces 504152914. |
| 2 | 207662034 | Hex. Flange Screw M6 x 20 |
| 3 | 233261434 | Flanged Elastic Nut M6 |
| 4 | 293200168 | Oil Seal This part replaces 293250175. |
| 5 | 293350059 | Ball Bearing |
| 6 | 504152576 | Circlip |
| 7 | 504152628 | Shim |
| 8 | 504153910 | Sprocket 21 Teeth This part replaces 504096200. |
| 9 | 504152784 | Spring Washer M10 |
| 10 | 207103044 | Hex. Screw M10 X 30 |
| 11 | 293200159 | Oil Seal This part replaces 504152571. |
| 12 | 293350059 | Ball Bearing |
| 13 | 504152582 | Circlip |
| 14 | 861805538 | Kit Sprocket This part replaces 504152593. |
| 15 | 504152572 | Circlip |
| 16 | 293300122 | O-Ring |
| 17 | 504152619 | Magnetic Cap |
| 18 | 293550033 | SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership |
| 19 | 504152579 | Drive Chain, 102 Links |
| 20 | 232006414 | Hex. Nut M10 |
| 21 | 504152602 | Adjustment Screw |
| 22 | 504152636 | Magnetic Plug |
| 23 | 293200128 | Bonded Washer |
| 24 | 413803300 | SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership |
| 25 | 504153429 | Chain Tensioner This part replaces 504152685. |
| 26 | 504152739 | Slider Chain |
| 27 | 504152841 | Tensionner Axle |
| 28 | 504152282 | Circlip |
| 30 | 504153151 | Casting Cover This part replaces 504152917. |
| 31 | 504152896 | Sensor |
| 32 | 293800066 | SEALANT LOCTITE SI 5900 - Call your local BRP dealership |
| 33 | 293300130 | O-Ring |
| 34 | 250000360 | Flanged Hex. Screw M6 X 30 |
| 35 | 413803300 | SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership |
| 40 | 413803300 | SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership |
| 41 | 504153886 | Retaining Ring This part replaces 504152949. |
| 42 | 293350059 | Ball Bearing |
| 43 | 293300122 | O-Ring |
| 44 | 504152619 | Magnetic Cap |
| 45 | 504152572 | Circlip |
| 46 | 293550033 | SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership |
| 47 | 504153089 | BEARING HOUSING ASS'Y - Call your local BRP dealership This part replaces 501026900. |
| 48 | 233281414 | Hex. Flange Elastic Nut M8 |
| 49 | 293350074 | Ball Bearing |
| 50 | 207784044 | Bolt Carriage M8 X 40 |
| 51 | 504153000 | Countershaft |
| 53 | Not | Available As Spare Part - Sprocket, 8 Teeth |
| 54 | Not | Available As Spare Part - Sprocket, 8 Teeth |
| 56 | 415129528 | Track Guide |
| 57 | 504152651 | Cleat |
