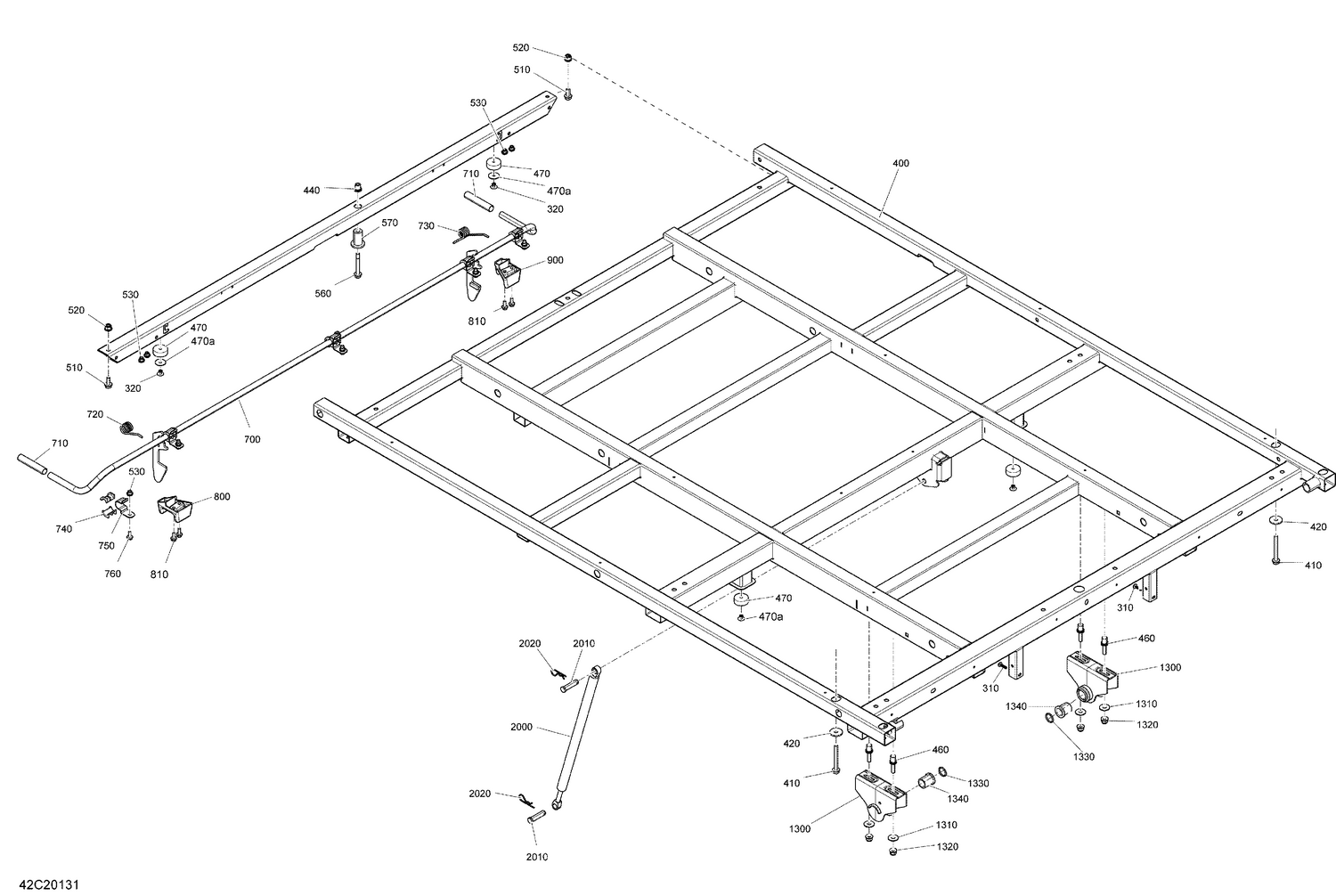

09- Rear Cargo Box - Frame
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 310 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 320 | 293150104 | Pop Rivet 3/16" |
| 410 | 207587044 | Hex. Flange Screw M8 X 70 |
| 420 | 250200187 | Flat Washer M8 |
| 440 | 293450307 | Insert Half Hex Body M8 x 1.25 |
| 460 | 250300645 | Protruding Stud M8 X 28 |
| 470a | 224060251 | Washer |
| 510 | 207682046 | Hex. Flange Screw M8 X 20 |
| 520 | 233281416 | Hex. Elastic Flange Nut M8 |
| 530 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 560 | 207586044 | Hex. Flange Screw M8 X 60, Scotch Grip |
| 570 | 705207754 | Spacer |
| 710 | 708300358 | Cap Latch Lever |
| 720 | 708303190 | LH Torsion Spring |
| 730 | 708303191 | RH Torsion Spring |
| 740 | 705500033 | Half Ring |
| 750 | 708301479 | Clamp Retainer |
| 760 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 800 | 708303301 | LH Stopper |
| 810 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 900 | 708303302 | RH Stopper |
| 1310 | 234082410 | Flat Washer 8 mm |
| 1320 | 233281414 | Hex. Flange Elastic Nut M8 |
| 1330 | 293300131 | O-Ring |
| 1340 | 708303361 | Hinge Bushing |
| 2000 | 708302889 | Shock Absorber |
| 2010 | 250400075 | Clevis Pin |
