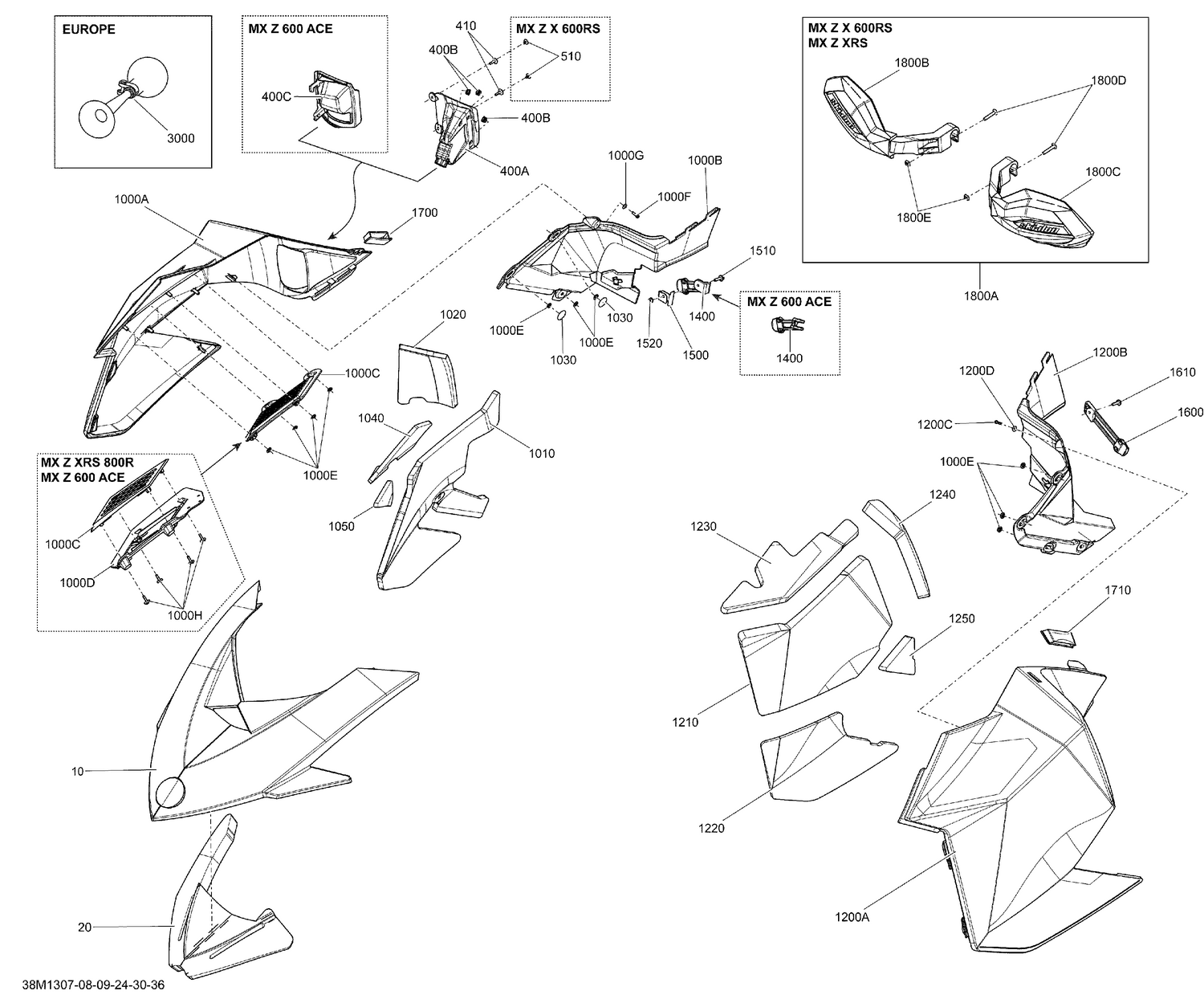

| Ref | Part Number | Description |
|---|
| 10 |
517304530 |
Deep Black Hood |
| 20 |
517304913 |
Hood Foam |
| 400B |
275500241 |
Black, Cap |
| 400C |
XXX |
Not Available As Spare Parts |
| 510 |
XXX |
Not Available As Spare Parts |
| 1000B |
517303671 |
Deep Black RH Moulding Panel |
| 1000F |
241141660 |
Hex. Flange Screw K40 X 16 |
| 1000G |
234042600 |
Flat Washer 4 mm, Stainless |
| 1010 |
517304883 |
RH Center Foam |
| 1020 |
517304884 |
RH Panel Rear Foam |
| 1030 |
518325560 |
Adhesive Patch |
| 1040 |
XXX |
Not Available As Spare Parts |
| 1050 |
XXX |
Not Available As Spare Parts |
| 1200A |
517304030 |
Deep Black, LH Panel |
| 1200B |
517303673 |
Deep Black, LH Moulding Panel |
| 1200C |
241141660 |
Hex. Flange Screw K40 X 16 |
| 1200D |
234042600 |
Flat Washer 4 mm, Stainless |
| 1210 |
517304887 |
LH Panel Center Foam |
| 1220 |
517304888 |
LH Panel Lower Foam |
| 1230 |
517304889 |
LH Panel Upper Foam |
| 1240 |
517304890 |
LH Panel Rear Foam |
| 1250 |
517304891 |
Foam |
| 1400 |
517303612 |
RH Panel Latch |
| 1500 |
517304221 |
Latch Support |
| 1510 |
250000792 |
Torx Screw M5 X 20 This part replaces 250000465. |
| 1520 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 1600 |
517303808 |
LH Panel Latch |
| 1610 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 1700 |
513033471 |
RH Panel Clip |
| 1710 |
513033472 |
LH Panel Clip |
| 1800B |
517305039 |
GREY RH WIND DEFLECTOR - Call your local BRP dealership |
| 1800C |
517305040 |
GREY LH WIND DEFLECTOR - Call your local BRP dealership |
| 1800D |
250000501 |
PHILLIPS SCREW M6 X 35 - Call your local BRP dealership |
| 1800E |
250000498 |
SQUARE NUT M6 - Call your local BRP dealership |
