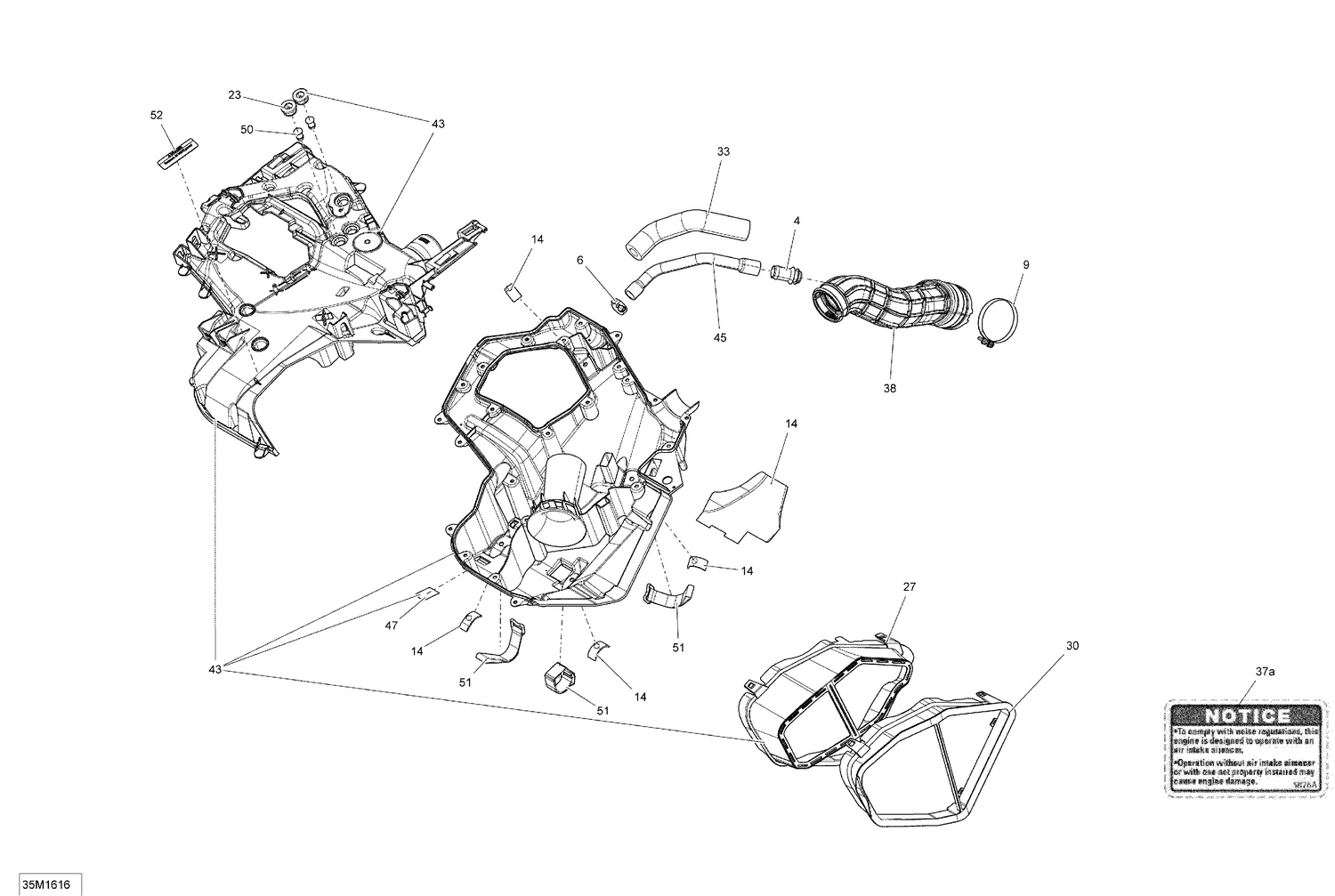

02- Air Intake System
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 4 | 273000234 | Breather Valve |
| 6 | 293650172 | Tridon Gear Clamp |
| 9 | 293650212 | GEMI Clamp |
| 14 | 508000537 | Stopper |
| 23 | 508000574 | Grommet |
| 27 | 508000595 | Air Intake Filter |
| 30 | 508000622 | Reflective Sheet |
| 33 | 508000630 | Insulating Tube |
| 38 | 508000838 | Air Intake Hose |
| 43 | 508000715 | Secondary Chamber Ass'y |
| 45 | 508000774 | Formed Vent Hose |
| 47 | 509000688 | Reflective Sheet |
| 50 | 572092900 | Cap |
| 51 | 508000820 | Velcro Strip |
