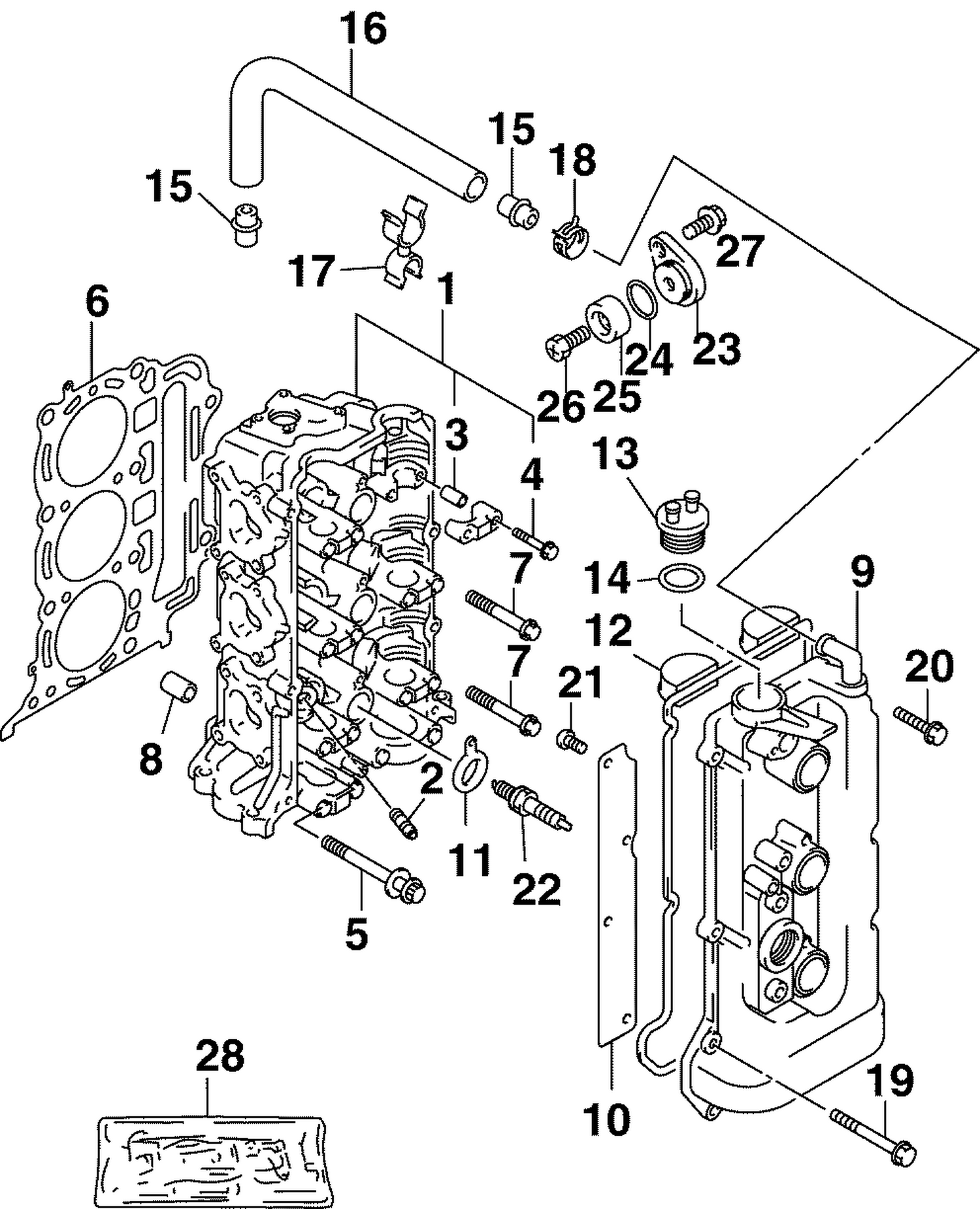

CYLINDER HEAD
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5036063 | HEAD, CYLINDER |
| 5 | 5031291 | BOLT, Cylinder head |
| 7 | 5034377 | BOLT, CYLINDER HEAD |
| 8 | 5031014 | PIN |
| 9 | 5036469 | COVER, CYLINDER HEAD |
| 10 | 5031295 | BREATHER PLATE |
| 11 | 5031296 | GASKET, Spark plug |
| 13 | 5030633 | CAP, OIL FILLER |
| 14 | 5030541 | O RING |
| 17 | 5031661 | CLAMP |
| 20 | 5031662 | BOLT |
| 22 | 5031287 | PLUG, SPARK (DCPR6E) |
| 23 | 5034866 | ANODE COVER |
| 24 | 5035305 | O RING |
