Home / BRP / 2019 / 225 / 01- Cooling 69 Ranger - 1200 4-TEC

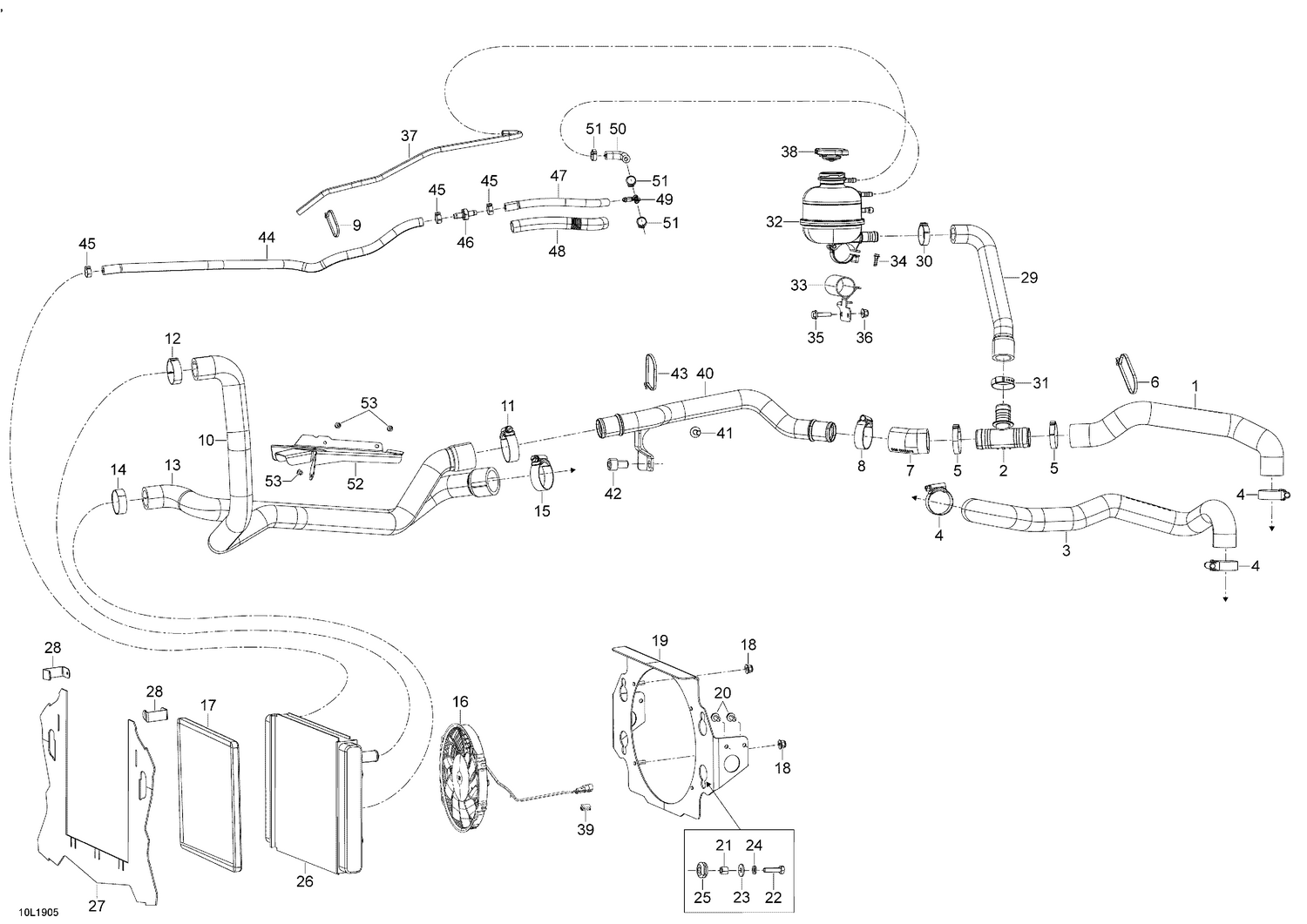

01- Cooling 69 Ranger - 1200 4-TEC

01- Cooling 69 Ranger - 1200 4-TEC

Parts (49)

RefPart NumberDescription
1 509000894 Hose, T-Fitting->Front radiator
2 509000372 T-Fitting
3 509000895 Hose, Thermostat->Radiator
4 509000443 Aba Gear Clamp, 26-38 MM
5 509000181 Oetiker Gear Clamp
6 293750008 Tie-Rap 368 mm
7 509001067 Engine Inlet Hose
8 509000443 Aba Gear Clamp, 26-38 MM
9 414115200 Tie-Rap 180 mm
10 509000780 Hose, Front Radiator ( Air Engine)
11 509000443 Aba Gear Clamp, 26-38 MM
12 293650165 Oetiker Gear Clamp
13 509000781 Hose, Front Radiator (Engine)
14 293650165 Oetiker Gear Clamp
15 509000443 Aba Gear Clamp, 26-38 MM
16 509000838 Cooling Fan
17 509000718 Insulation
18 233261414 Hex. Flange Elastic Nut M6 x 1.0
19a 250300027 Clinch Stud M6 X 20
20 207664044 Hex. Flange Screw M6 X 40
21 605453745 Bushing
22 250000722 Torx Truss Screw M6 x 20
23 234062410 Flat Washer 6 mm
25 709000582 Grommet This part replaces 293720053.
26 509000787 Radiator
27 509001003 Air Deflector
28 509000703 Fastening bracket
29 509000663 Filling Hose
30 509000442 Oeticker Gear Clamp, 25.6-706R
31 293650099 Oetiker Gear Clamp
32 509000421 Kylvätska-tank
33 509000856 Reservoir support
34 241151640 Hex. Flanged Screw K50 X 2.24 X 16
37 276000048 Polyurethane Hose 5.2 mm
38 509000180 Radiator Pressure Cap
39 710000992 Clip
40 509000724 Water Pipe Aluminum
41 250000717 Torx Head Screw M6 X 16
42 205501644 Socket HD Screw M10 x 16
44 509000407 Hose 8 mm
45 293650140 Oetiker Clamp
46 509000153 Takaiskuventtiili
47 509001069 Hose-formed
48 415080000 Gaine Protectrice 16 mm (1 mètre/pac)
50 509001070 Hose
51 293650046 Oetiker Clamp
52 509000839 HEAT DEFLECTOR - Call your local BRP dealership This part replaces 509000751.
60 233261414 Hex. Flange Elastic Nut M6 x 1.0
60 503192967 Tubing, Corrugated
