Parts Catalog

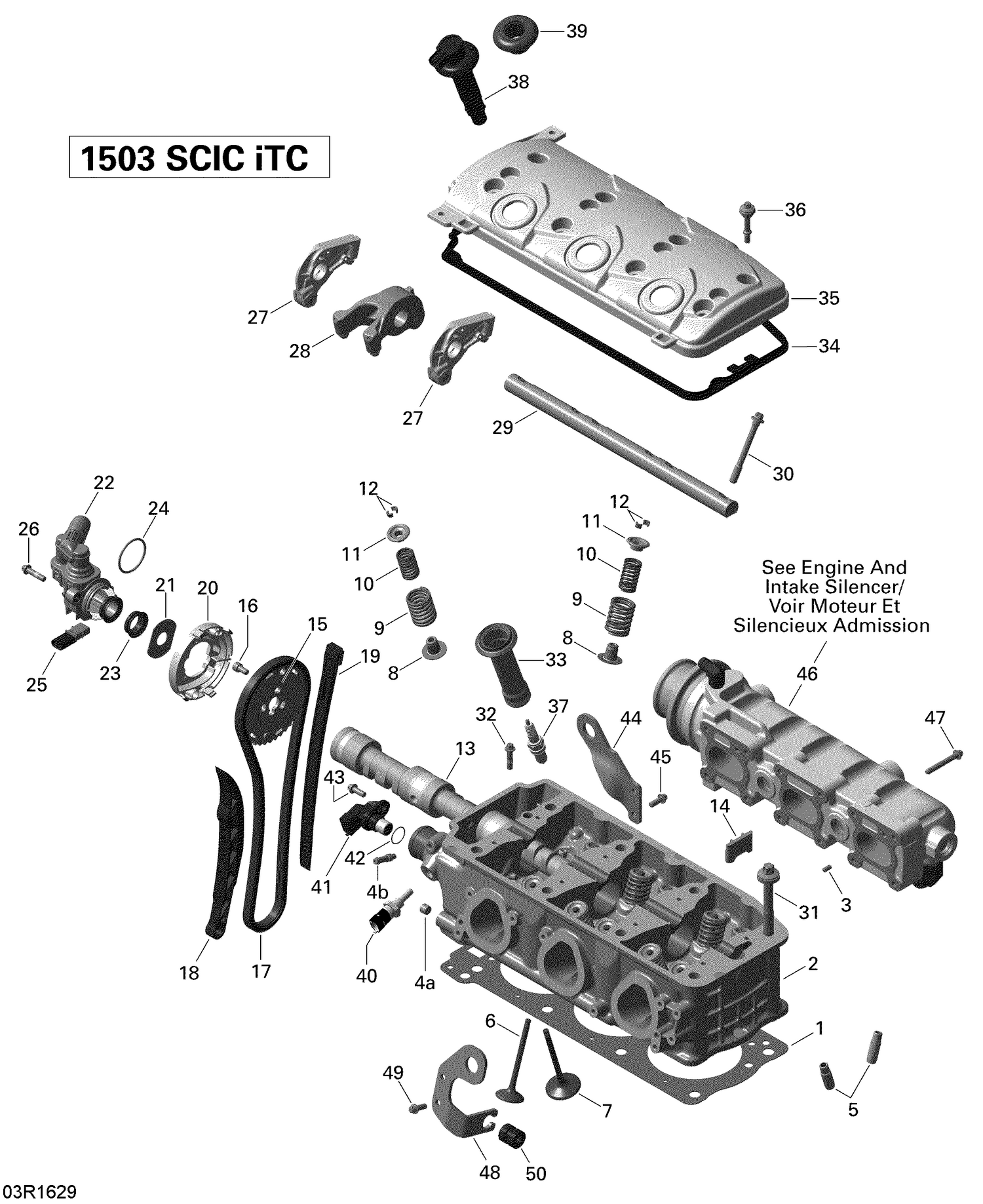

01- Cylinder Head - 215

Parts (48)

Ref	Part Number	Description
1	420950771	Cylinder Head Gasket
1	Not	Available As Spare Part - Cylinder Head Gasket
3	420929650	Drive Pin 5 X 10
4a	420641323	Plug Screw M10 X 1
4b	420924724	Hose Nipple
5	420253929	Valve Guide
6	420254682	Exhaust Valve, 31 mm
7	420253163	Intake Valve 38MM This part replaces 420254294.
8	420630202	Valve Steam Seal This part replaces 420630200.
9	420238180	Valve Spring
10	420838280	Valve Spring Inside
11	420254283	Valve Spring Retainer
12	420253645	Valve Cotter
13	420637780	Camshaft This part replaces 420837851.
14	420851694	Camshaft Guide
15	420254309	Timing Gear, 38 Teeth
16	420841080	Torx Flange Screw M6 X 12
17	420898042	Camshaft Chain
18	420236541	Chain Tension Guide
19	420236501	Chain Guide
20	420660037	Cover
21	420627494	Thrust Washer
23	420630125	V-Ring 20S FPM Blow By Valve
24	420950870	O-Ring
25	420665951	TOPS Switch This part replaces 420665950.
26	420641238	Torx Flange Screw M6 X 25
27	420254329	Rocker Arm, Exhaust
28	420254316	Rocker Arm, Inner
29	420854594	Rocker Arm, Shaft
30	420641080	Torx Screw M8 X 72
31	420641110	Torx Flange Screw M11 X 147
32	420641238	Torx Flange Screw M6 X 25
33	420851754	Spark Plug Pipe This part replaces 420851751.
34	420950820	Valve Cover Gasket
35	420811589	Valve Cover
36	420440561	Allen Screw M6 x 30,5 This part replaces 420440560.
37	715900637	Spark Plug NGK DCPR8E This part replaces 707000246.
38	296000307	Ignition Coil Kit
39	420460830	Sealing Cup
40	278002895	Temperature Sensor
42	420631890	O-Ring
43	420641048	Torx Flange Screw M6 X 16
44	420851618	Transport Bracket PTO
45	420641048	Torx Flange Screw M6 X 16
46	Not	Available As Spare Part - Exhaust Manifold
47	420641198	Torx Flange Screw M6 X 45
48	420951380	TRANSPORT BRACKET FRONT - Call your local BRP dealership
49	420641048	Torx Flange Screw M6 X 16
